ENGINE CONTROL SYSTEM: Component Parts Location: Exhaust

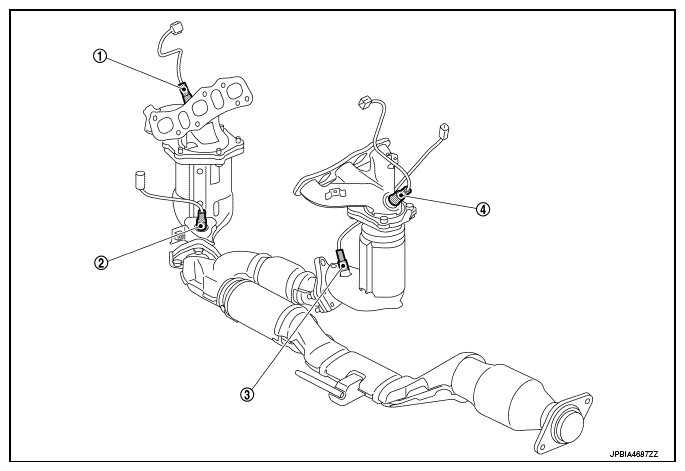

Fig 1: Engine Control System Components Location (Exhaust)
G09151638Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
(1) Air fuel ratio (A/F) sensor 1 (bank 2) "AIR FUEL RATIO (A/F) SENSOR 1 "
(2) Heated oxygen sensor 2 (bank 2) "HEATED OXYGEN SENSOR 2 "
(3) Heated oxygen sensor 2 (bank 1) "HEATED OXYGEN SENSOR 2 "
(4) Air fuel ratio (A/F) sensor 1 (bank 1) "AIR FUEL RATIO (A/F) SENSOR 1 "
