Exploded View

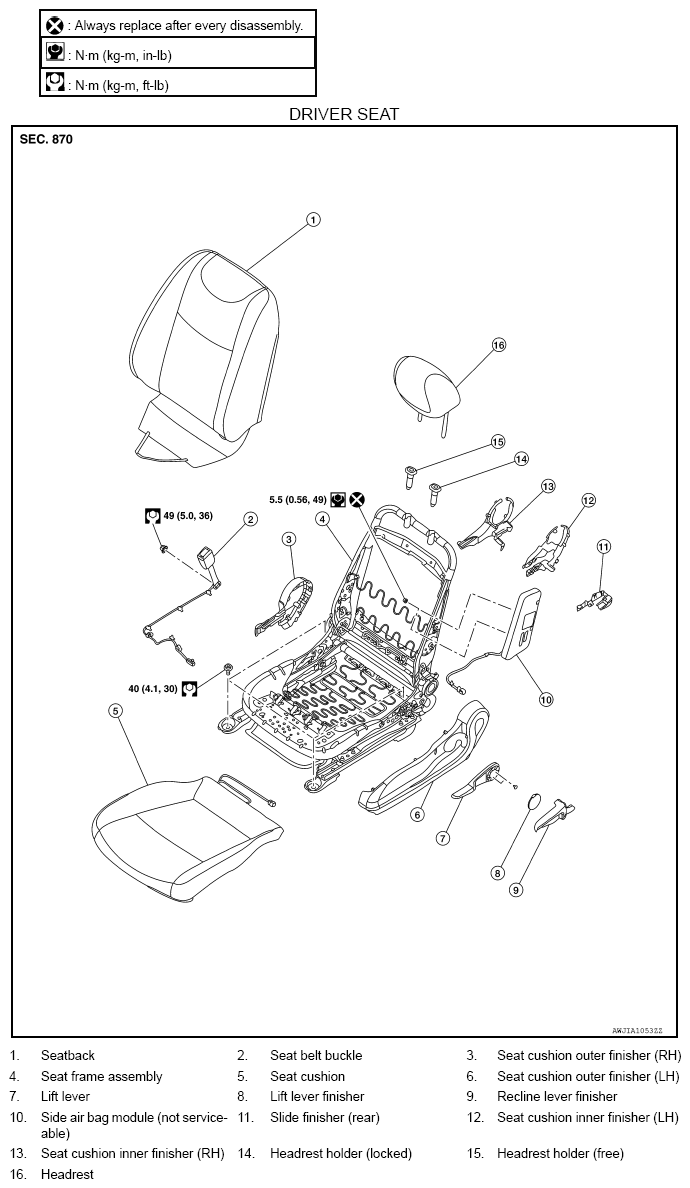

Fig 1: Exploded View Of Front Seat (Driver Seat) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

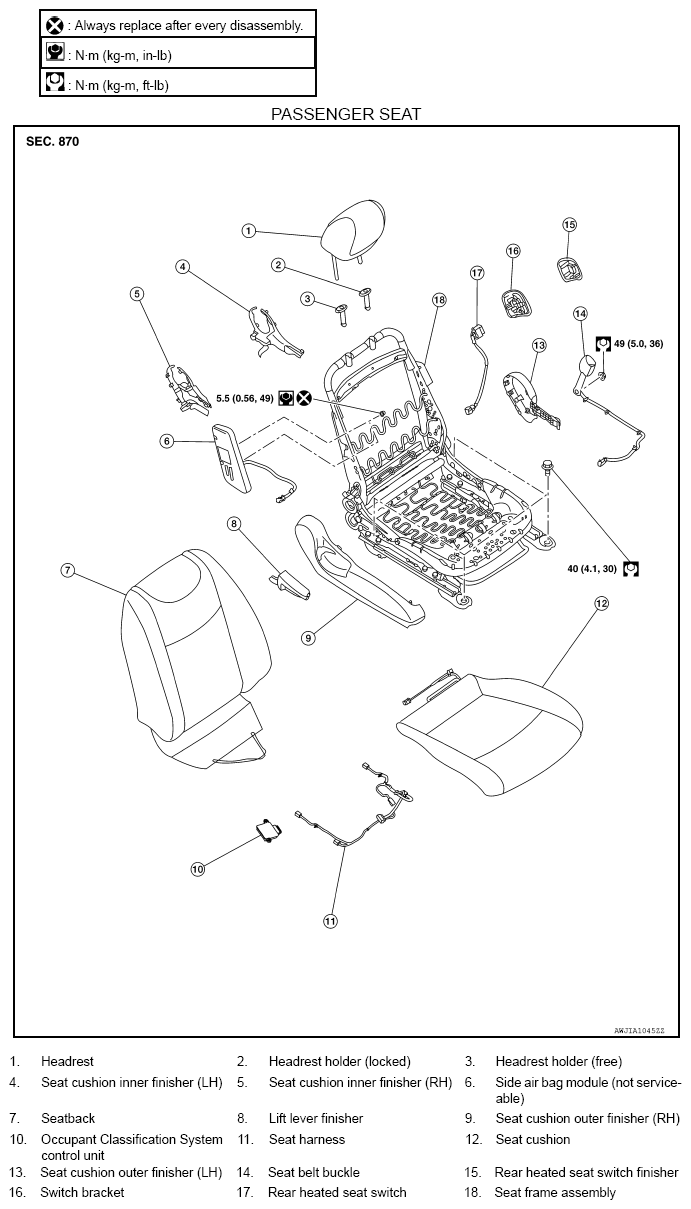

Fig 2: Exploded View Of Front Seat (Passenger Seat) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
