CVT CONTROL SYSTEM: System Diagram

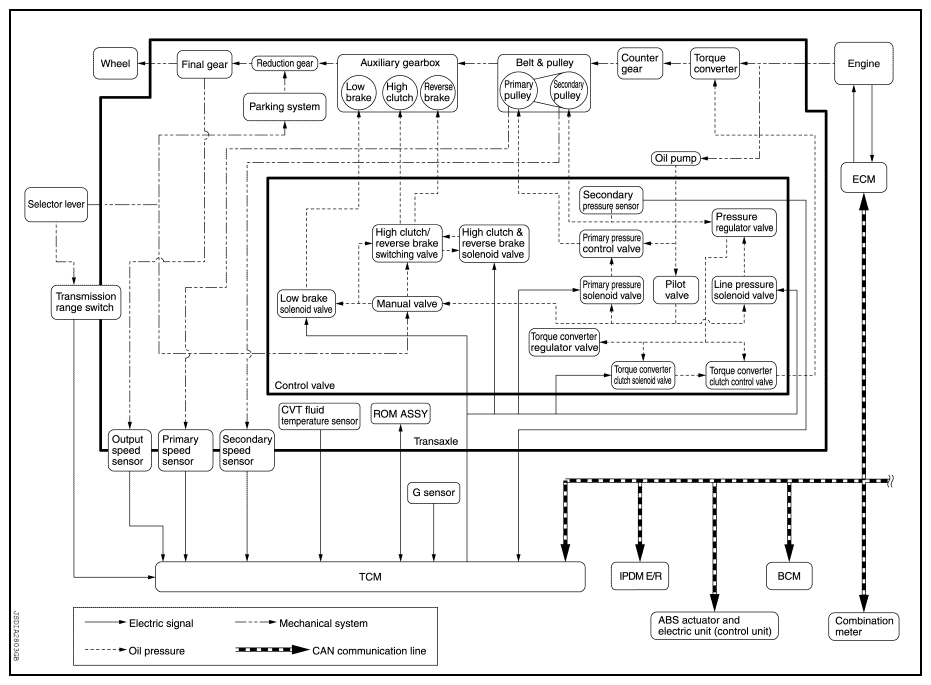

Fig 1: CVT Control - System Diagram

G08989713

Courtesy of NISSAN NORTH AMERICA, INC.
