Symptom Table

The diagnosis item number indicates the order of check. Start checking in the order from 1.

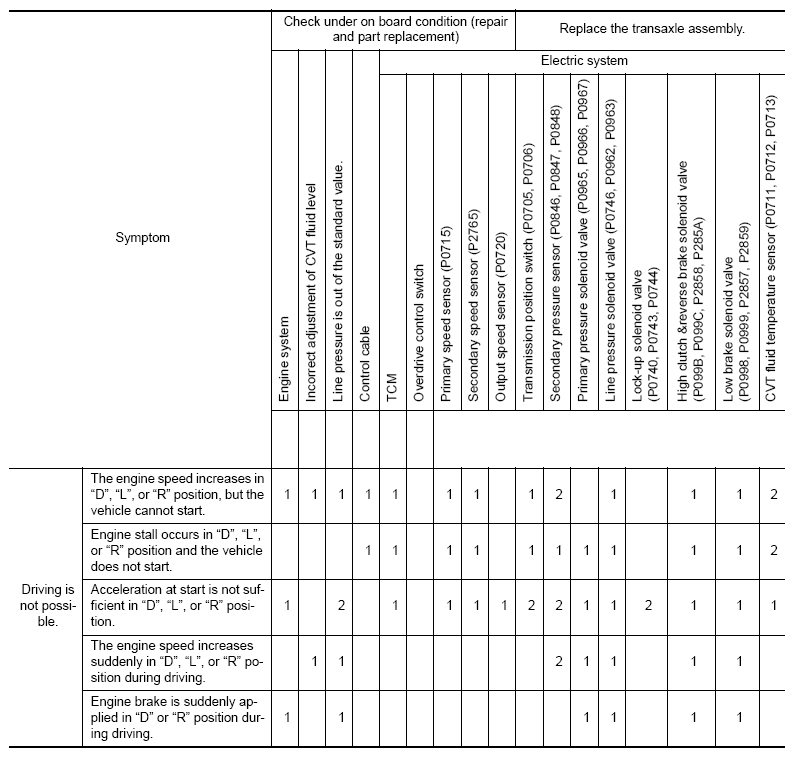

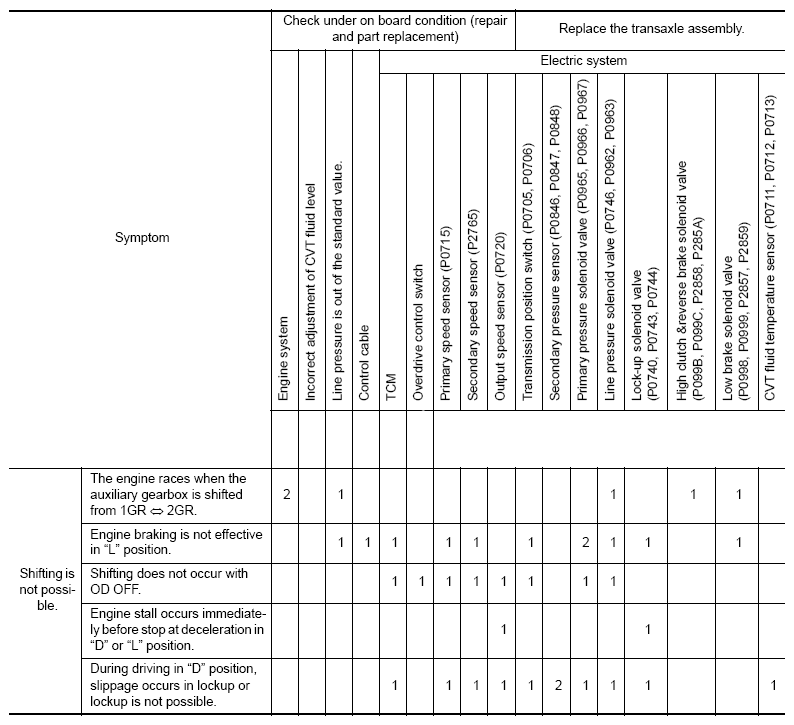

Symptom diagnosis chart 1-1

Fig 1: CVT Control System Symptom Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: CVT Control System Symptom Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

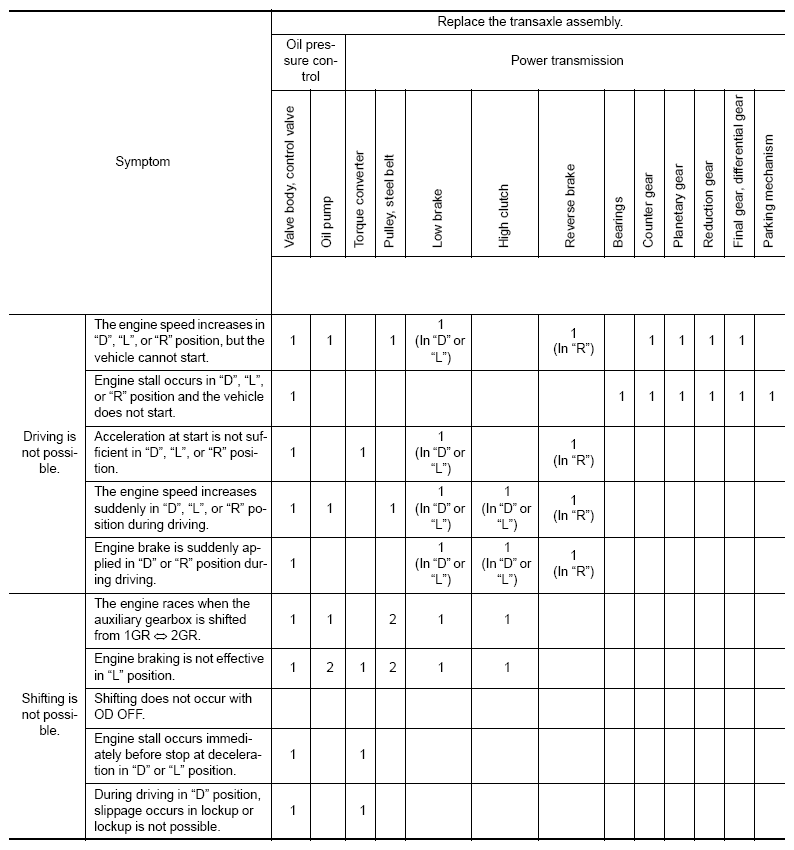

Symptom diagnosis chart 1-2

Fig 3: CVT Control System Symptom Chart 1-2

Courtesy of NISSAN NORTH AMERICA, INC.

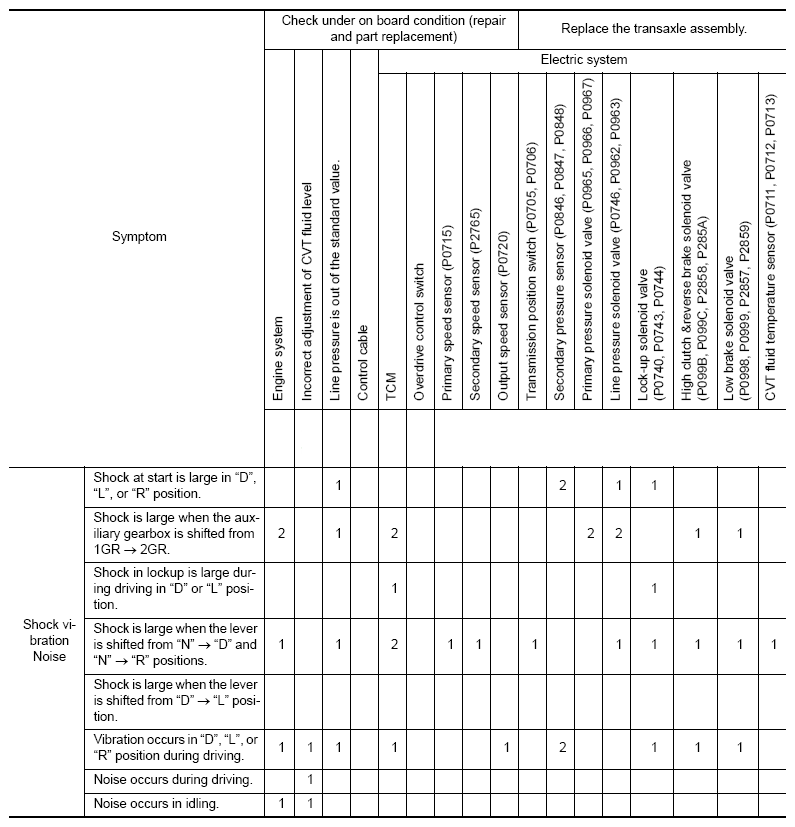

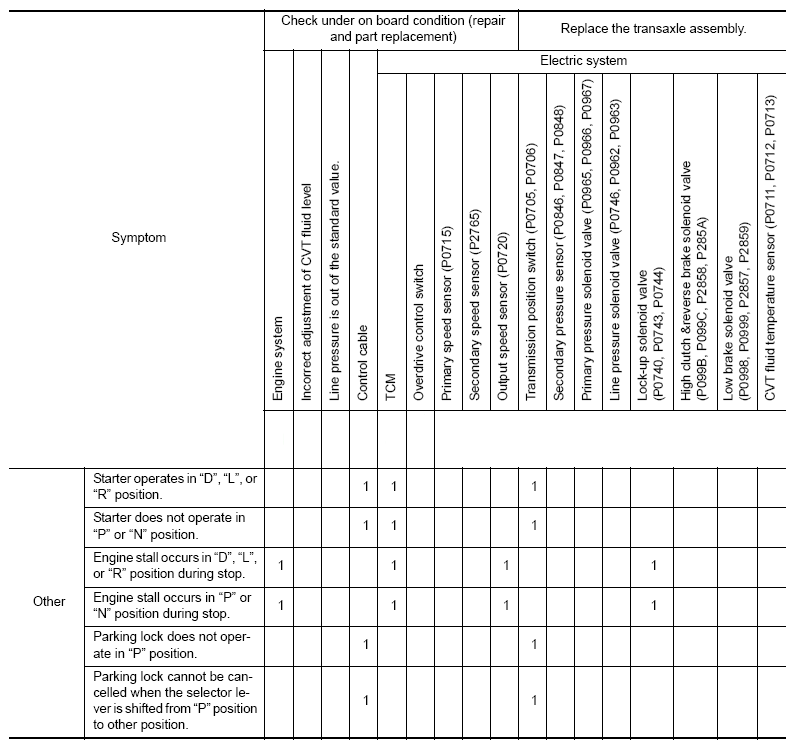

Symptom diagnosis chart 2-1

Fig 4: CVT Control System Symptom Chart 2-1 (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: CVT Control System Symptom Chart 2-1 (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

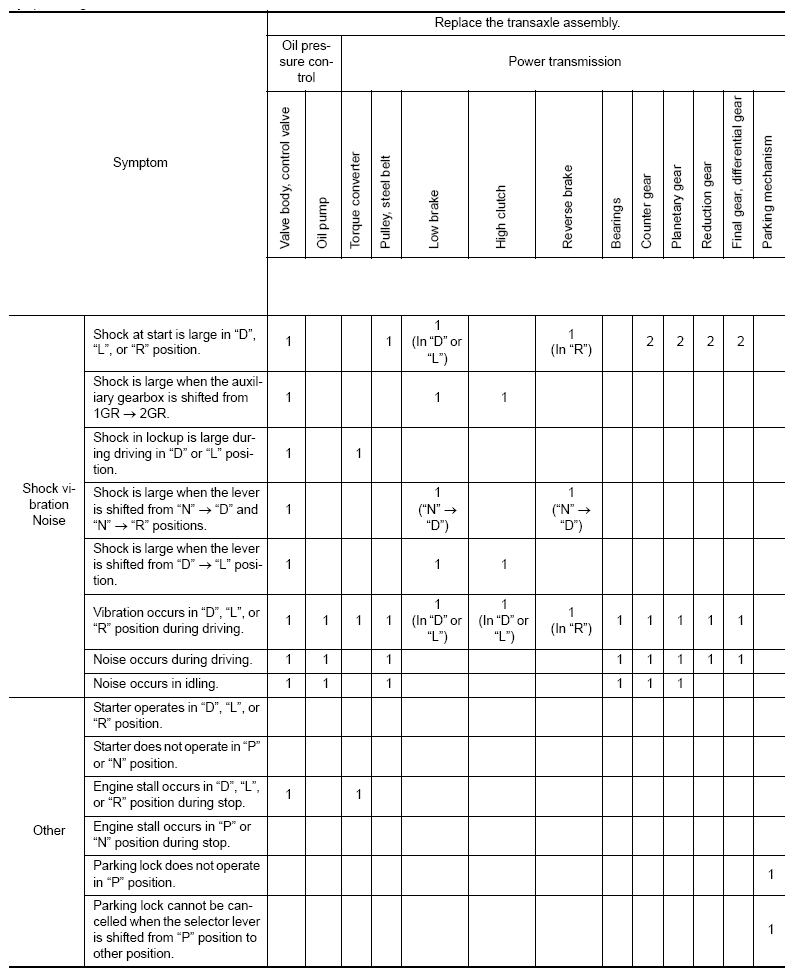

Symptom diagnosis chart 2-2

Fig 6: CVT Control System Symptom Chart 2-2

Courtesy of NISSAN NORTH AMERICA, INC.
