Home
>>
Nissan-Datsun
>>
2013
>>
Sentra SL
>>
Repair and Diagnosis
>>
Drivelines & Axles
>>
Wheel Hubs
>>
Front Axle
>>
Removal And Installation
>>
Front Wheel Hub
>>
Exploded View
Exploded View

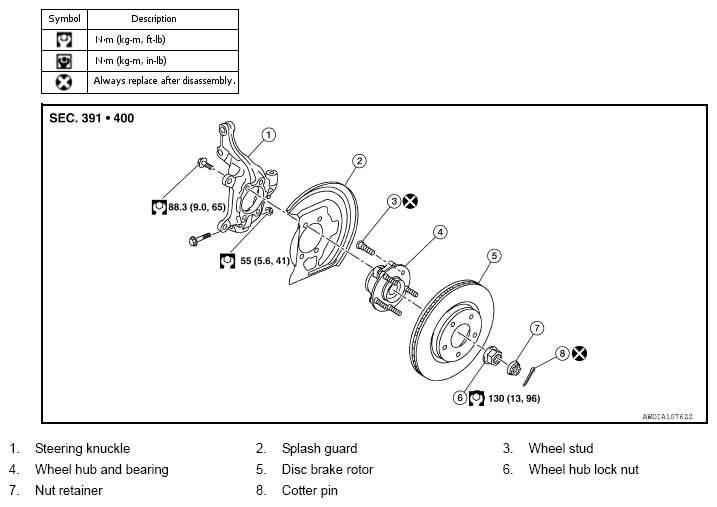

Fig 1: Exploded View Of Front Wheel Hub With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
