Exploded View
Exploded View

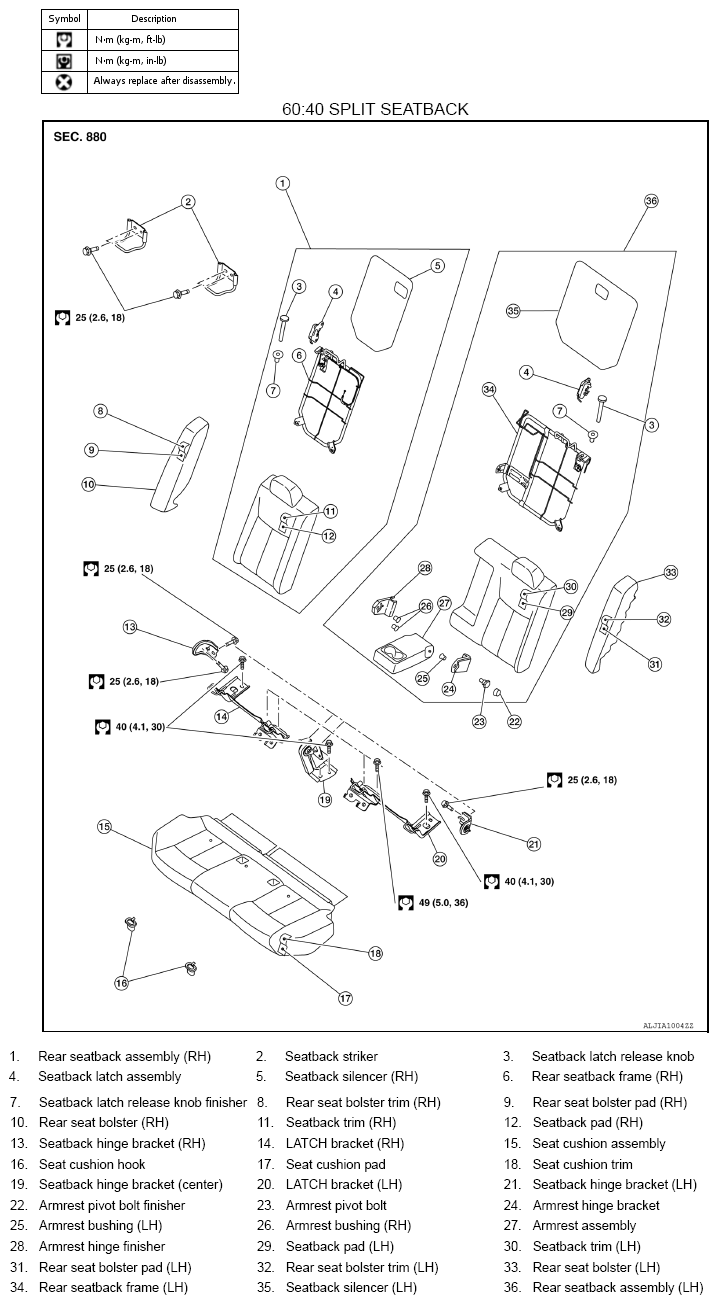

Fig 1: Exploded View Of Rear Seat (60:40 Split Seatback) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
