Circuit Diagram

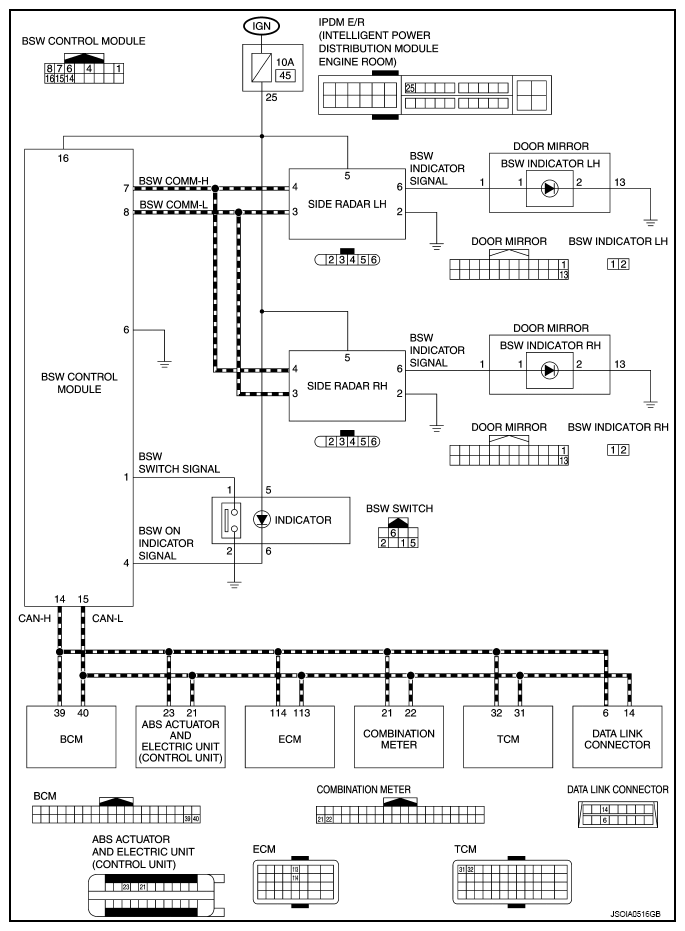

Fig 1: BSW Control Module - Circuit Diagram With Connector End Views

G08174319

Courtesy of NISSAN NORTH AMERICA, INC.
