Removal and Installation: Removal

  1. Remove the spiral cable. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the screws (A) and release the clips (B) to remove the steering angle sensor (1) from the spiral cable (2).

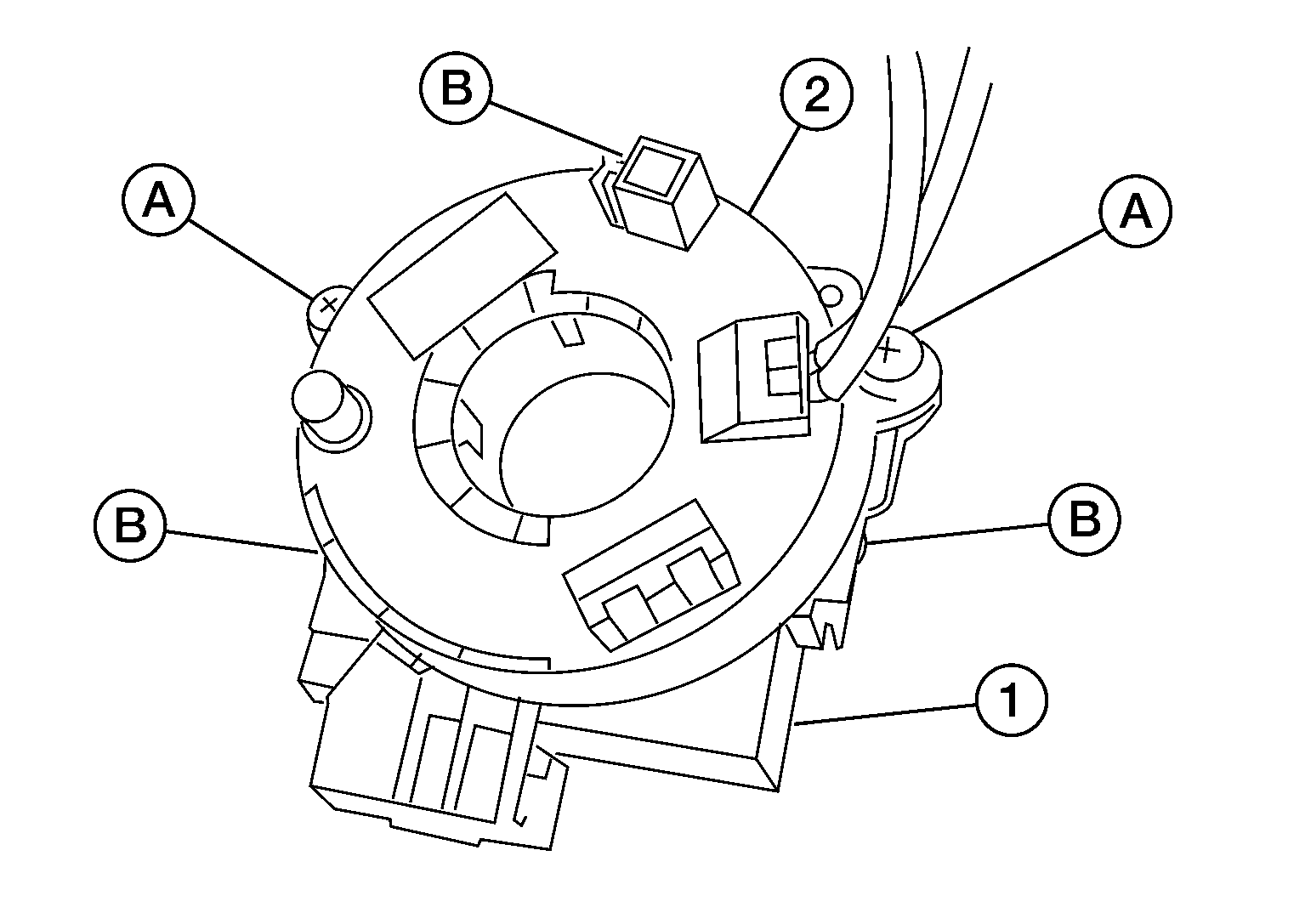

    Fig 1: Locating Spiral Cable, Steering Angle Sensor, Clips And Screws
    G05690799Courtesy of NISSAN NORTH AMERICA, INC.
