Exploded View

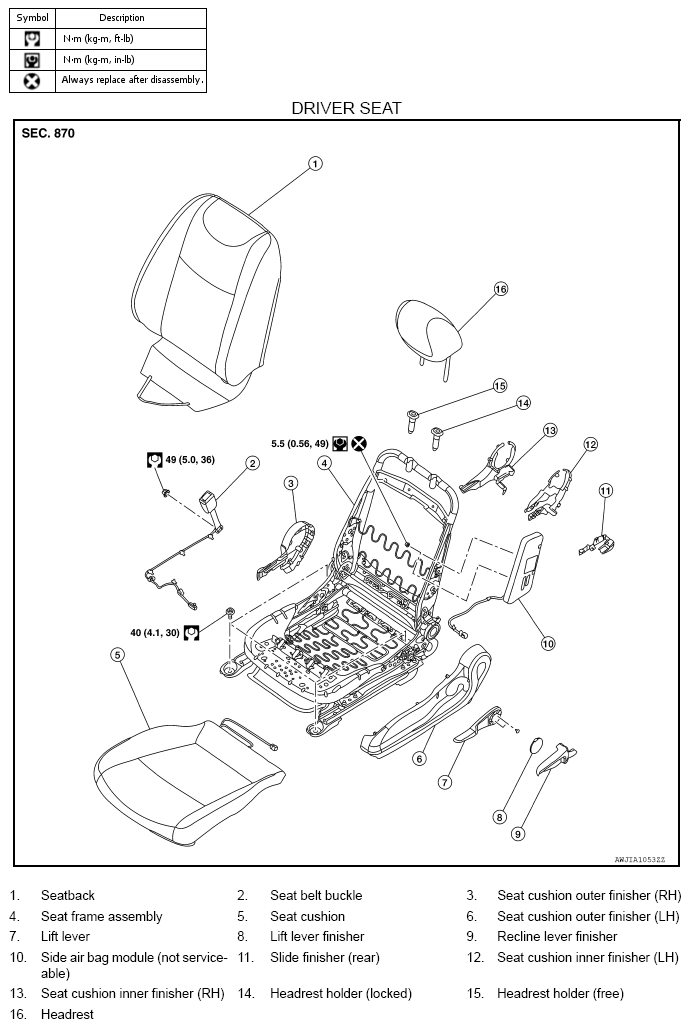

Fig 1: Exploded View Of Front Seat With Torque Specifications (Driver Seat)

Courtesy of NISSAN NORTH AMERICA, INC.

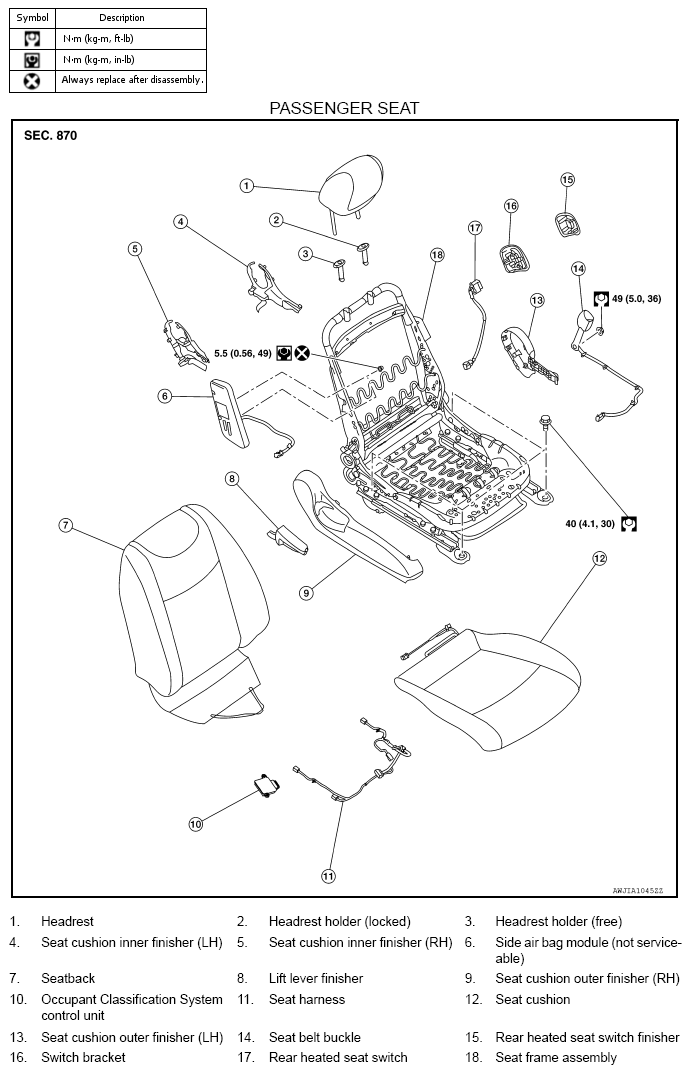

Fig 2: Exploded View Of Front Seat With Torque Specifications (Passenger Seat)

Courtesy of NISSAN NORTH AMERICA, INC.
