Exploded View
Exploded View

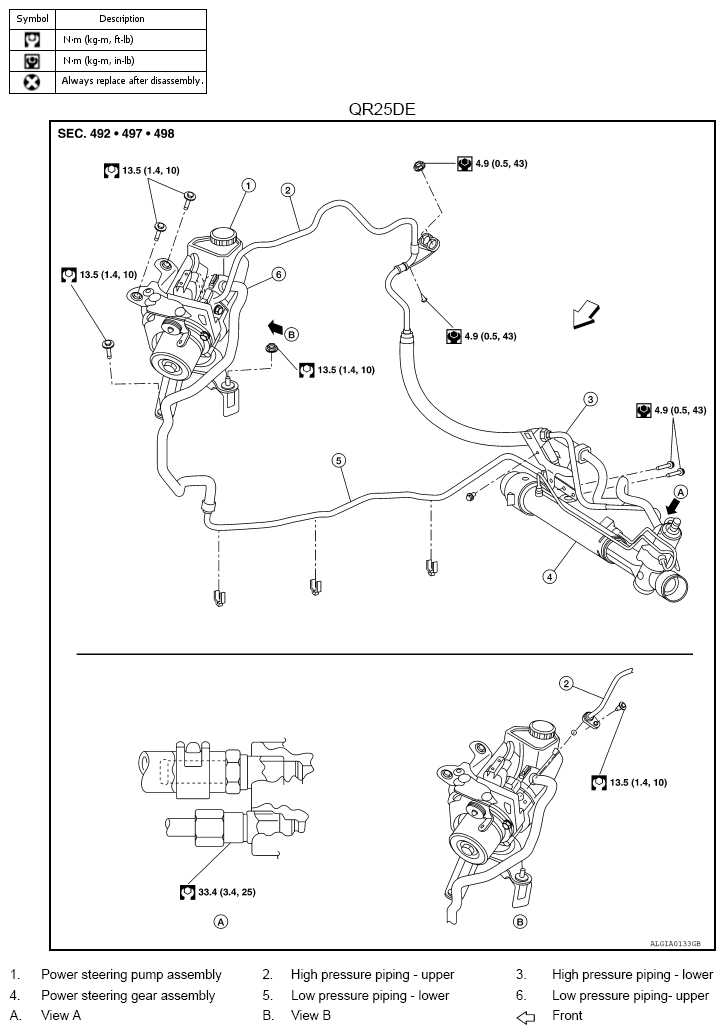

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (QR25DE)
Courtesy of NISSAN NORTH AMERICA, INC.

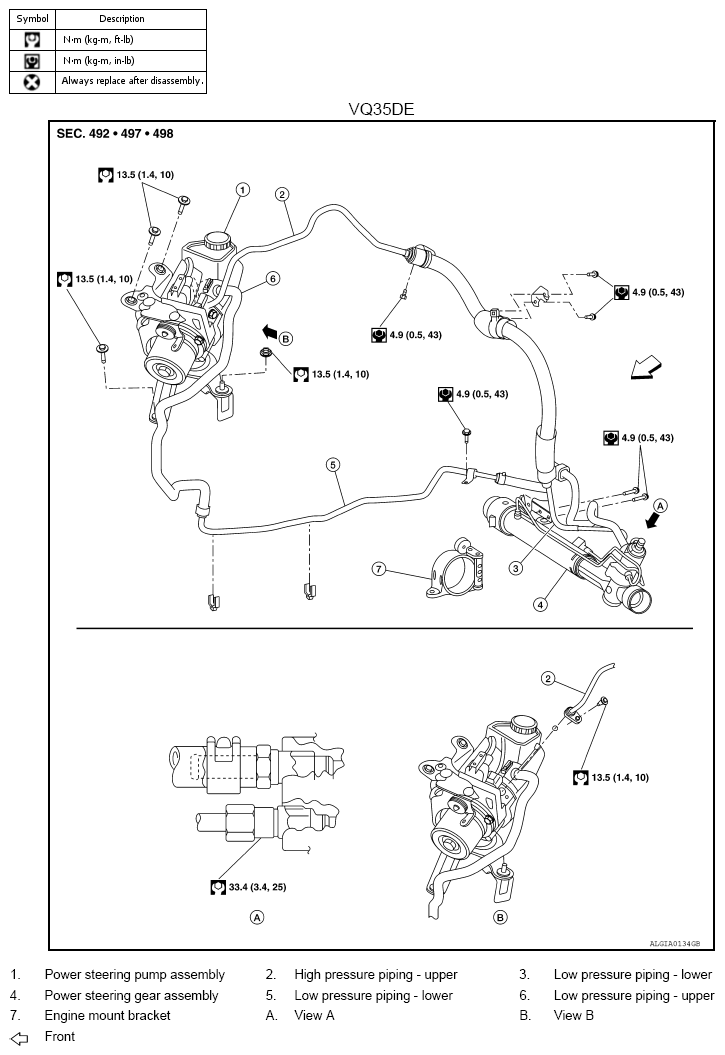

Fig 2: Exploded View Of Hydraulic Line With Torque Specifications (VQ35DE)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
