Consult Checking System: Description

NOTE: This vehicle is diagnosed using the CONSULT-III plus.

When CONSULT is connected with a data link connector equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

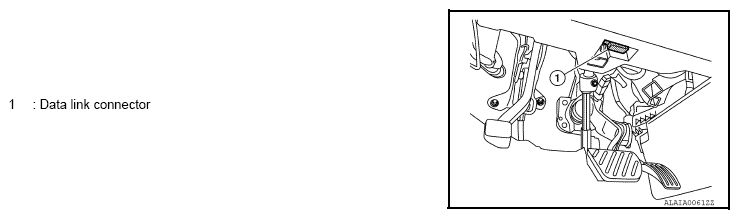

Fig 1: Identifying Data Link Connector (DLC3)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "CONSULT-III plus Operation Manual" for more information.
