Connector Terminal Identification

WARNING: This page is about a different variant/trim than selected.

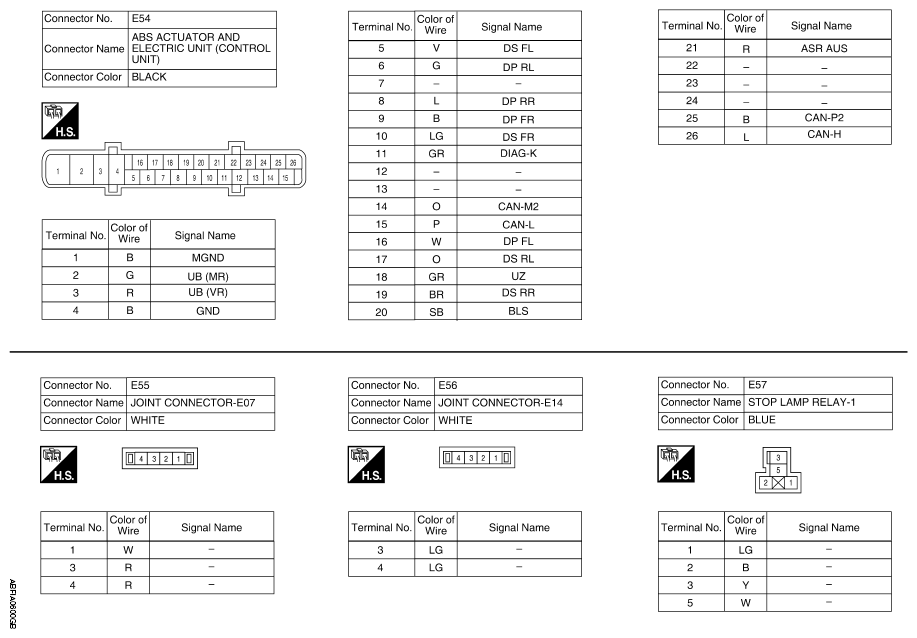

Fig 1: Brake Control System Connector End View (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

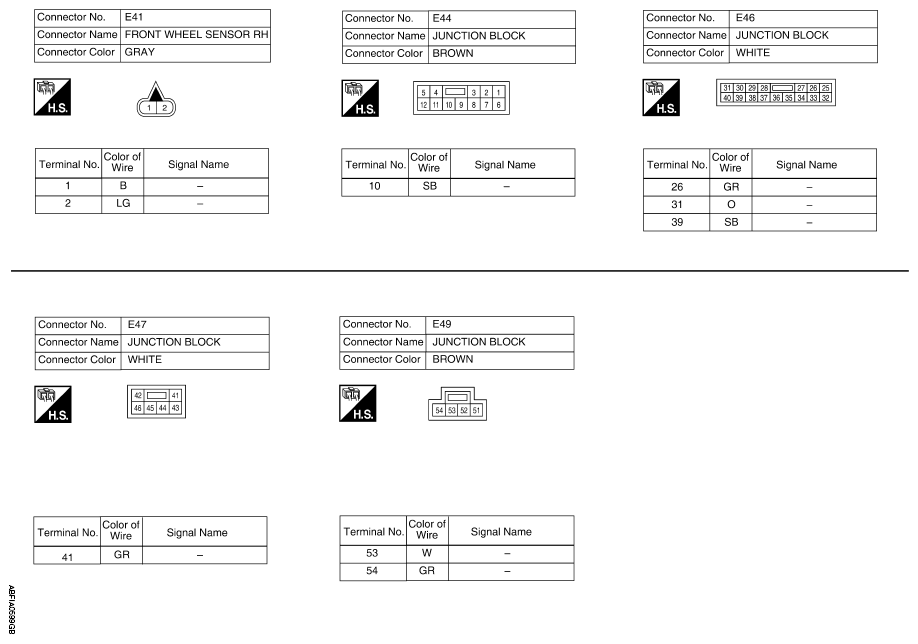

Fig 2: Brake Control System Connector End View (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

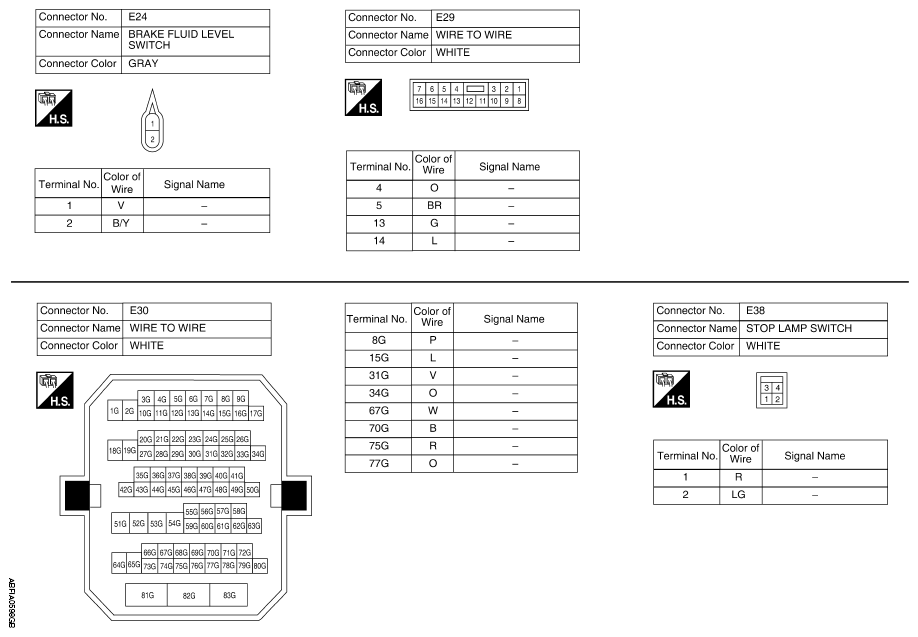

Fig 3: Brake Control System Connector End View (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

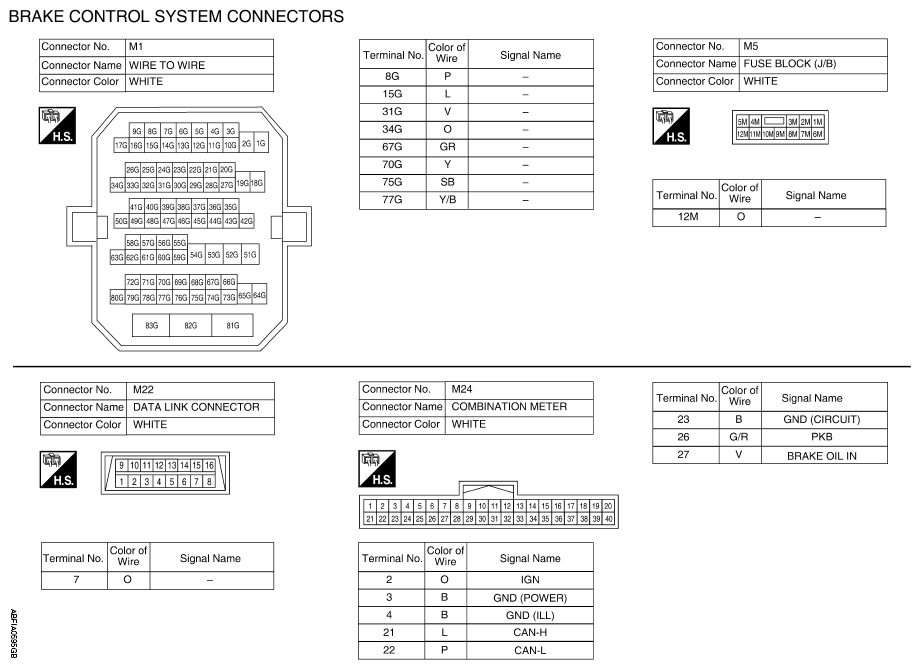

Fig 4: Brake Control System Connector End View (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

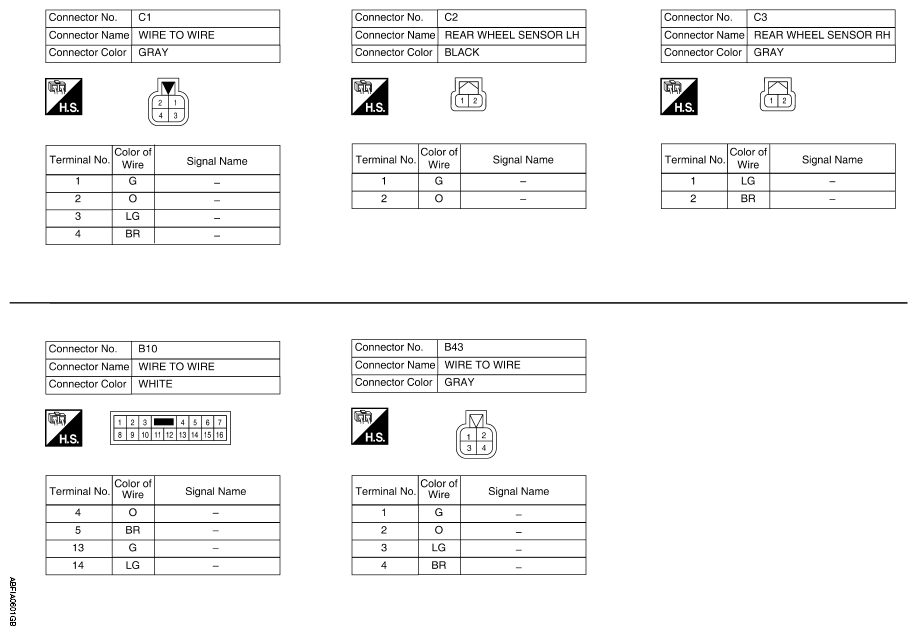

Fig 5: Brake Control System Connector End View (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

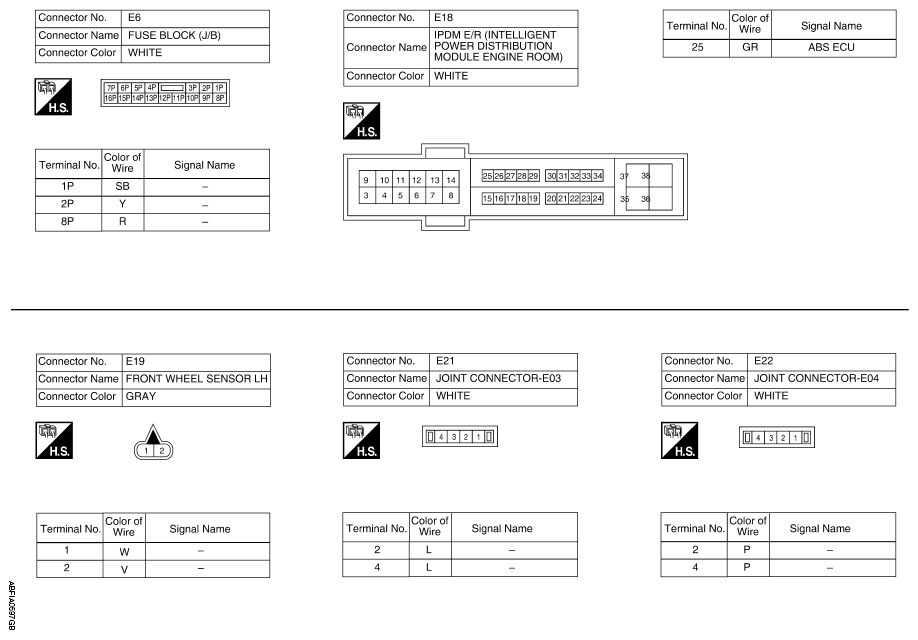

Fig 6: Brake Control System Connector End View (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

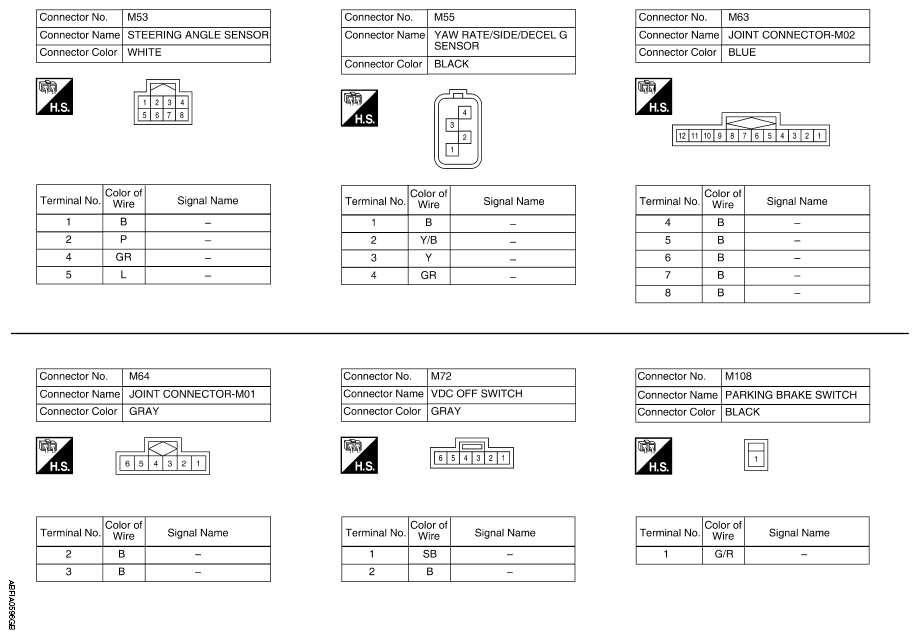

Fig 7: Brake Control System Connector End View (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
