Connector End View

WARNING: This page is about a different variant/trim than selected.

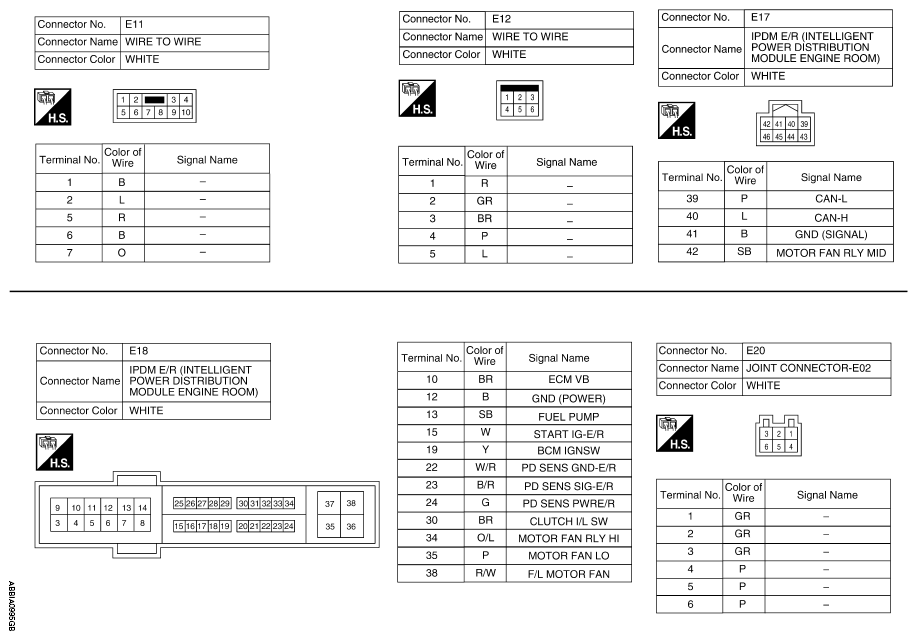

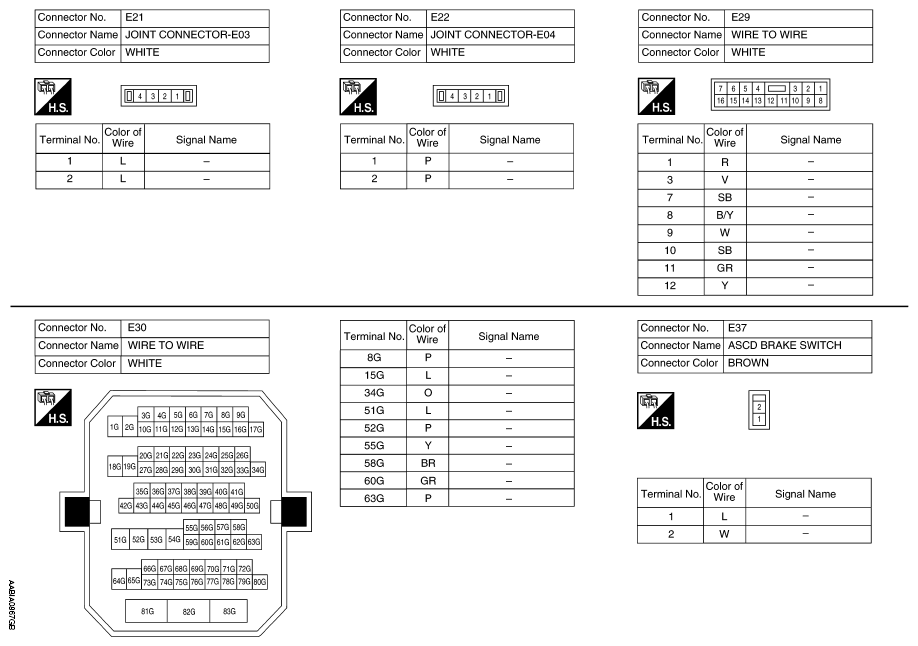

Fig 1: Engine Control System Connector End View Except For California (1 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

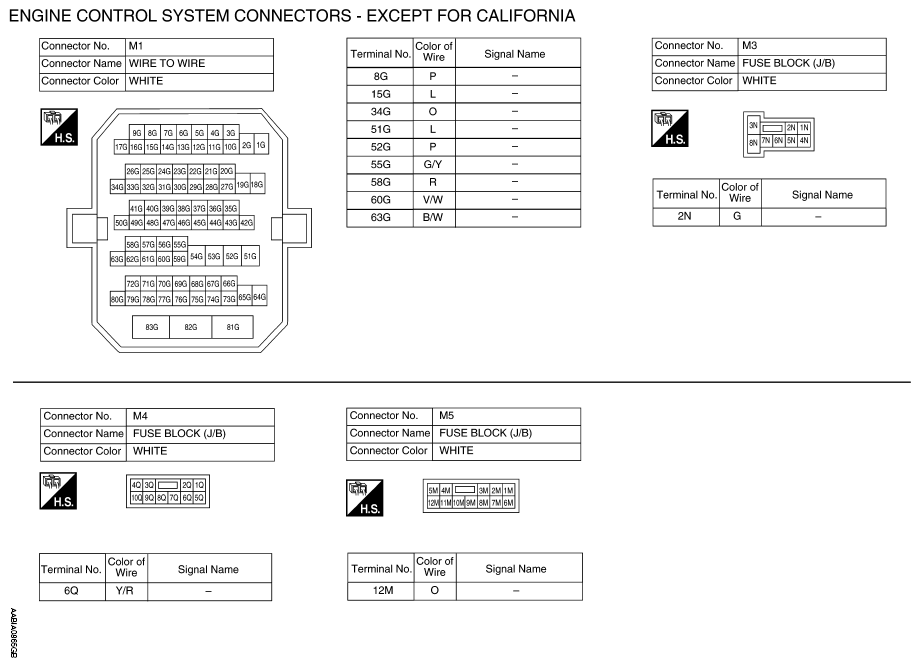

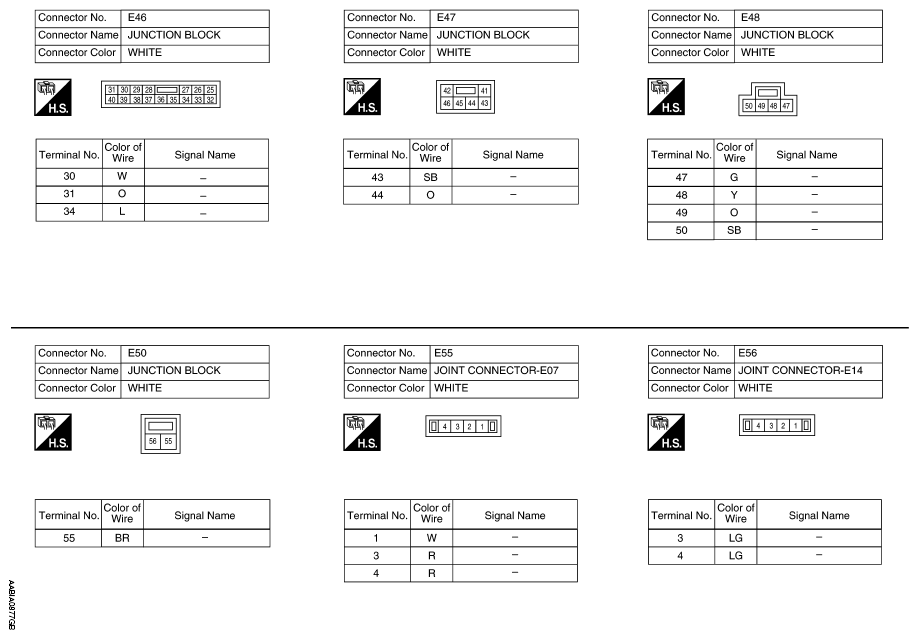

Fig 2: Engine Control System Connector End View Except For California (2 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

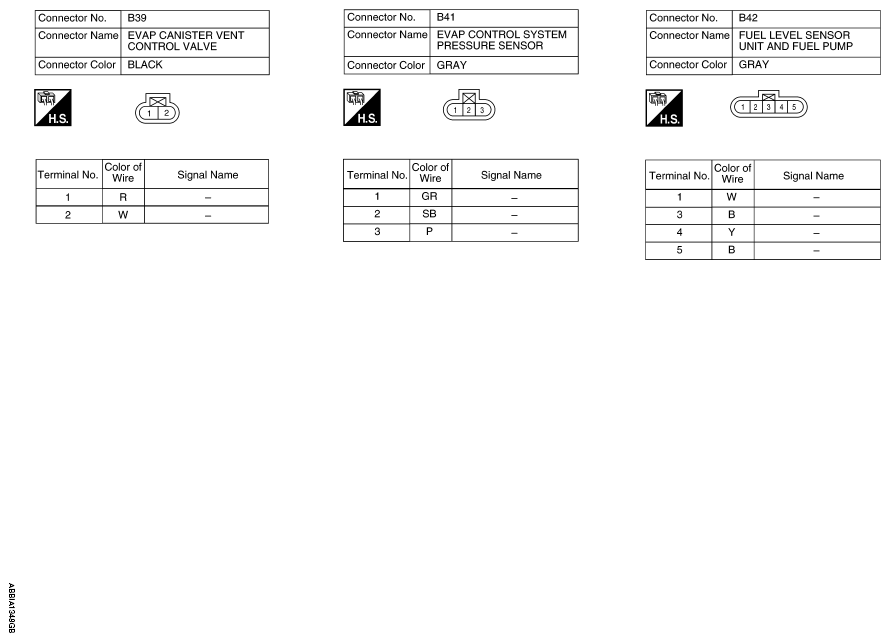

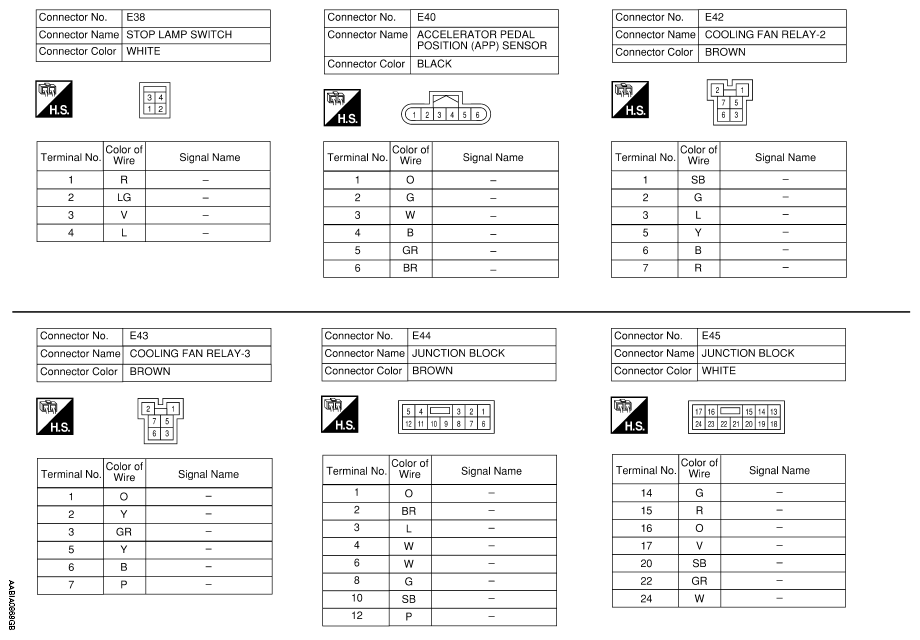

Fig 3: Engine Control System Connector End View Except For California (3 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

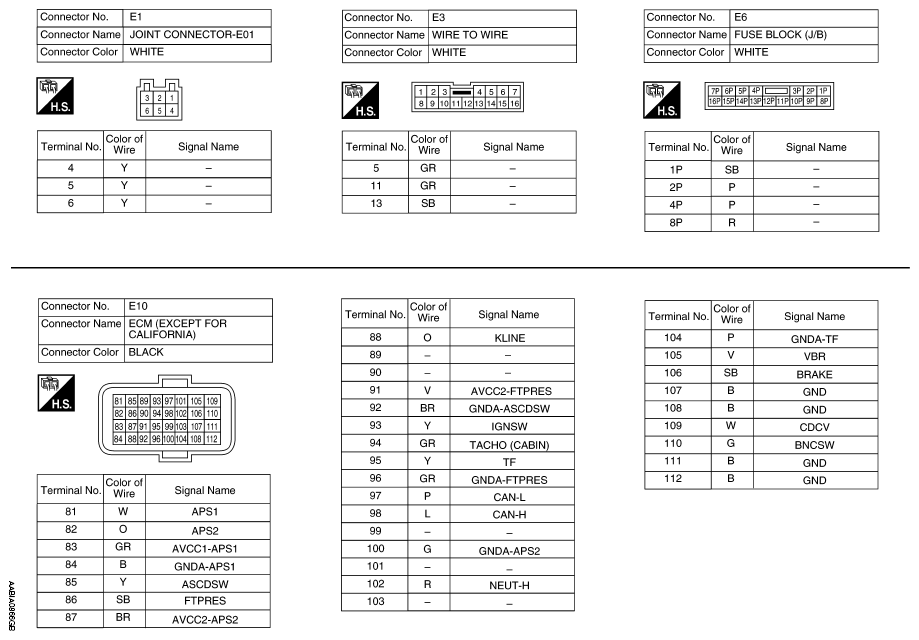

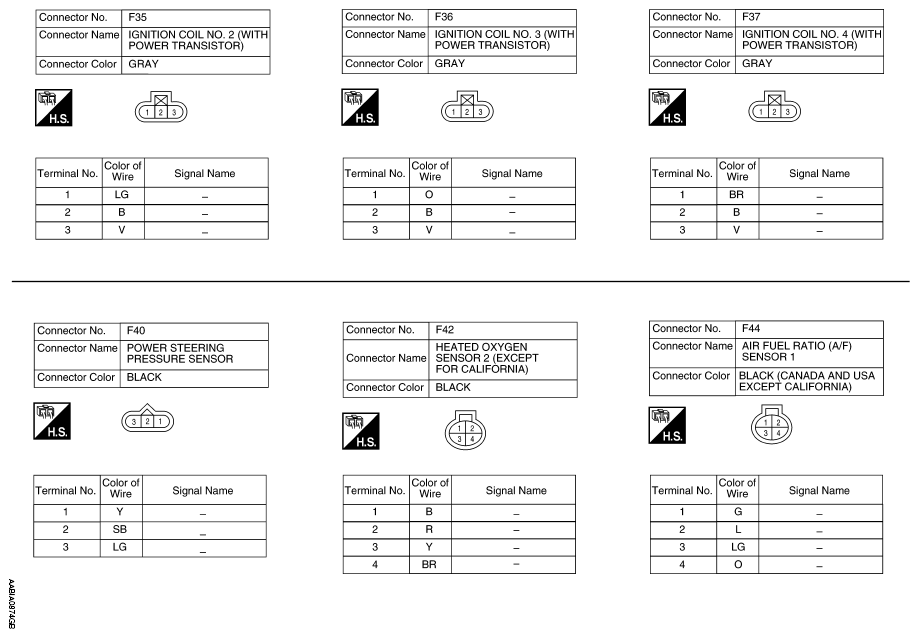

Fig 4: Engine Control System Connector End View Except For California (4 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

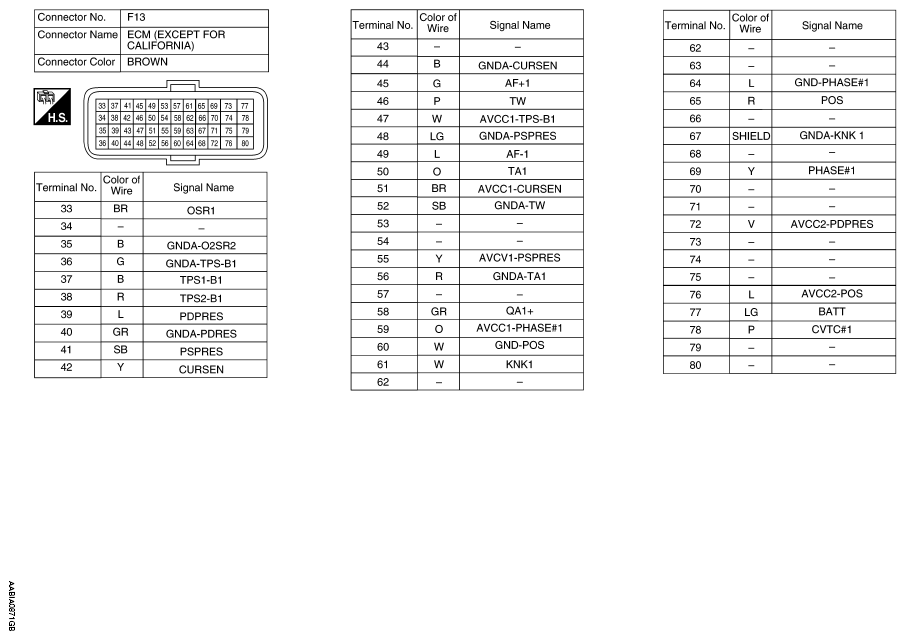

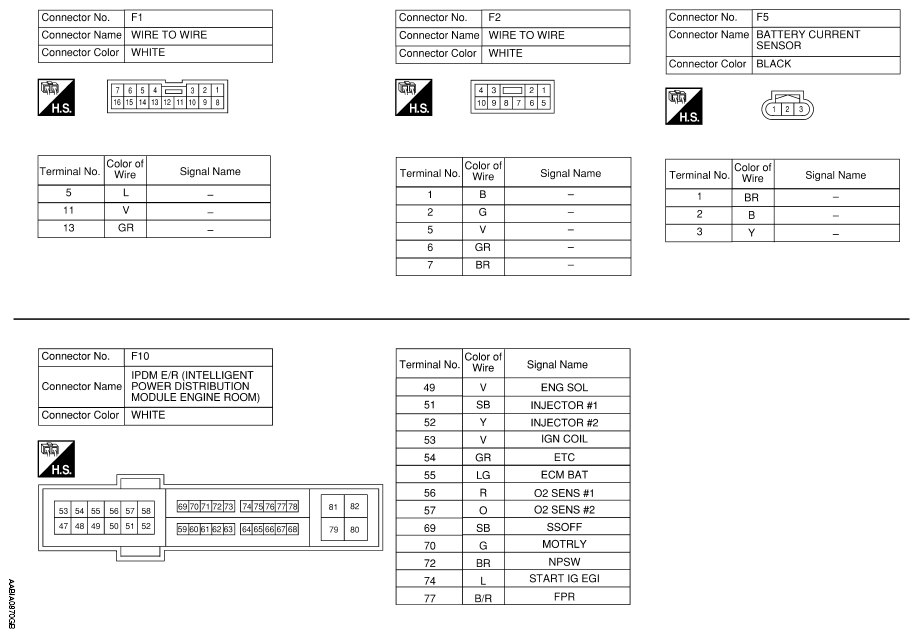

Fig 5: Engine Control System Connector End View Except For California (5 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

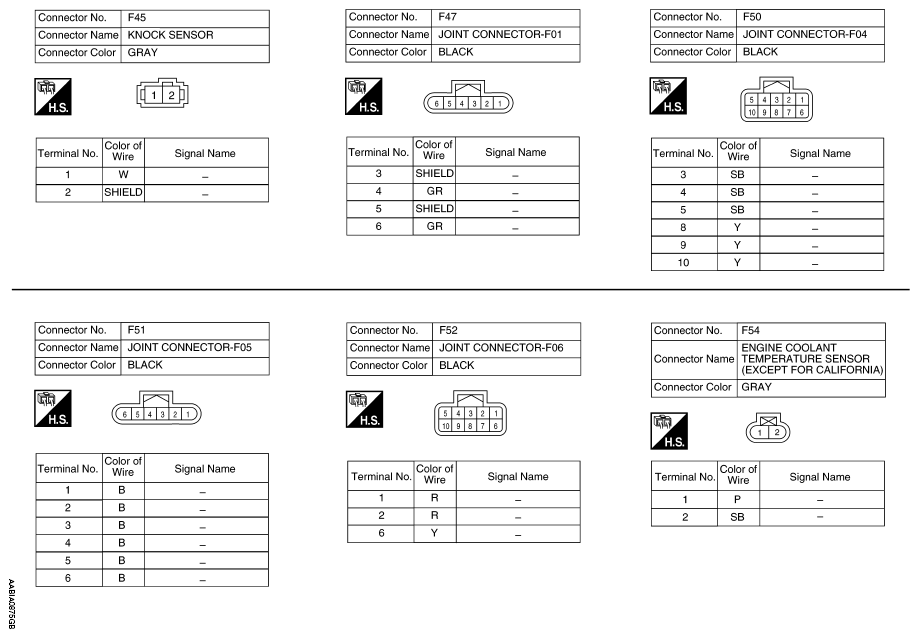

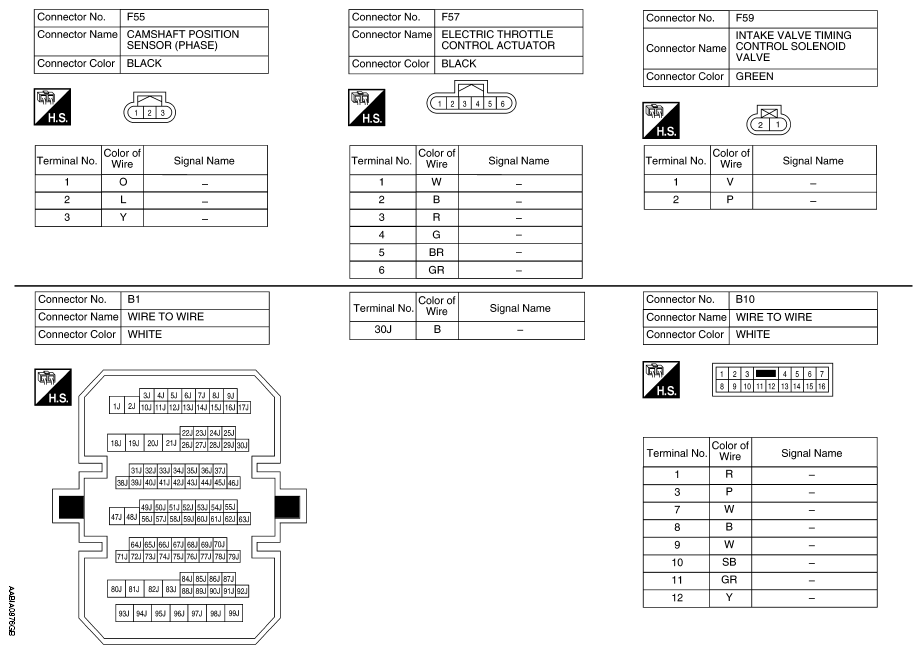

Fig 6: Engine Control System Connector End View Except For California (6 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

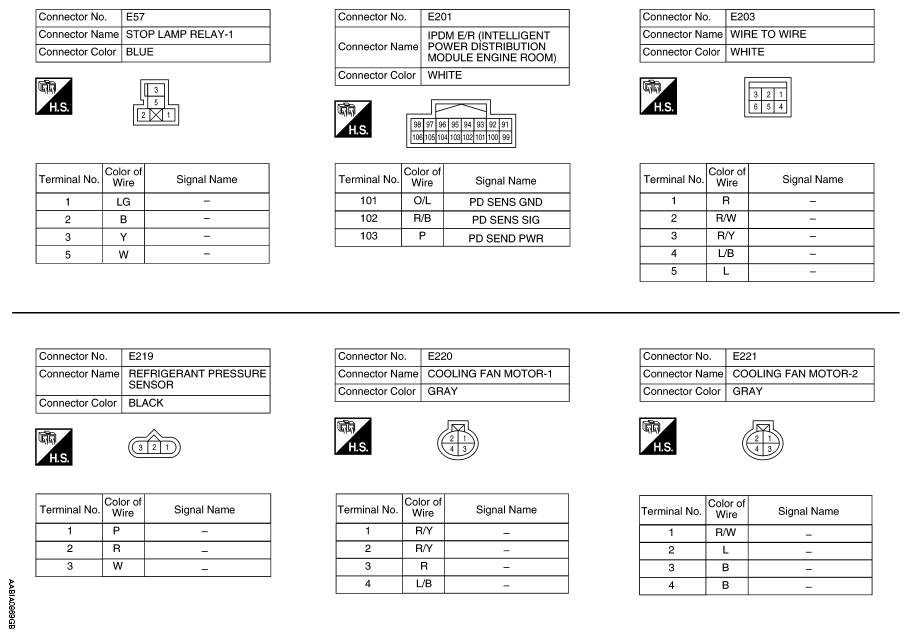

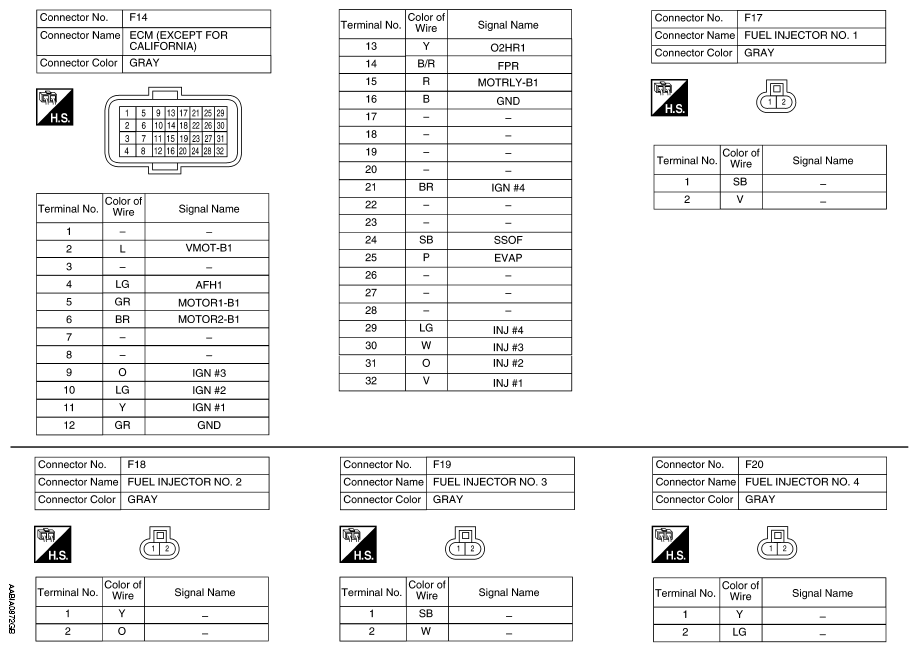

Fig 7: Engine Control System Connector End View Except For California (7 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

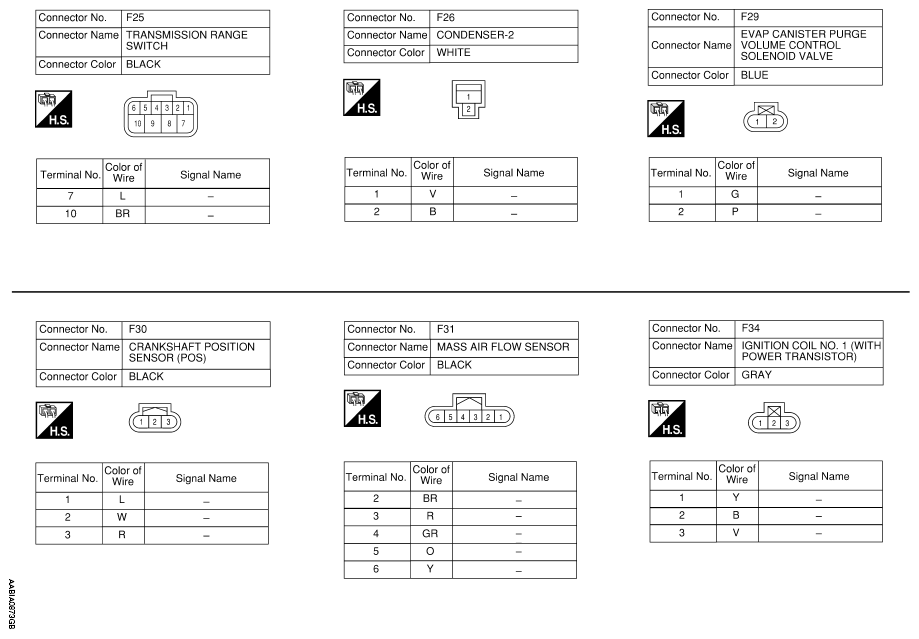

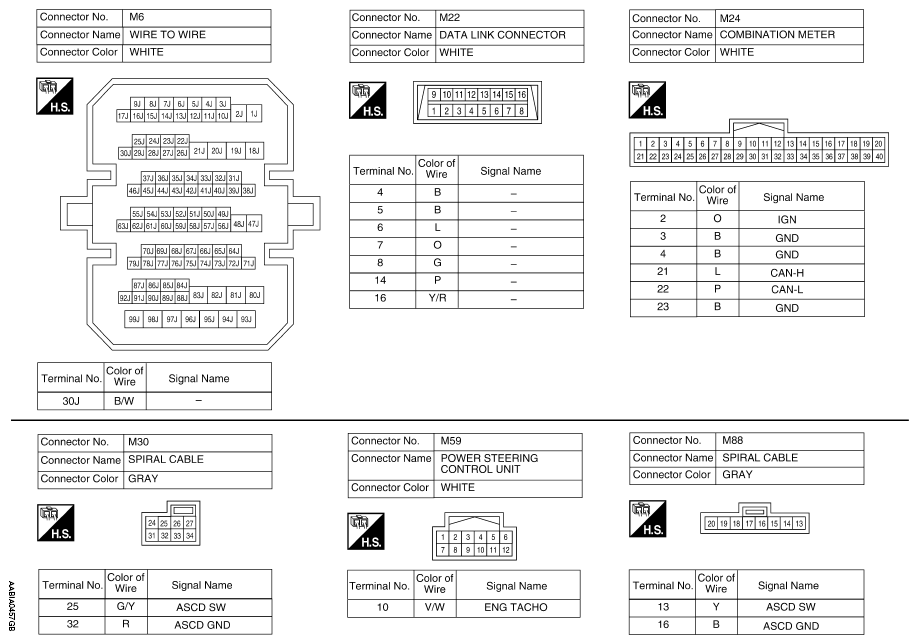

Fig 8: Engine Control System Connector End View Except For California (8 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Engine Control System Connector End View Except For California (9 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Engine Control System Connector End View Except For California (10 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Engine Control System Connector End View Except For California (11 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Engine Control System Connector End View Except For California (12 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Engine Control System Connector End View Except For California (13 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System Connector End View Except For California (14 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Engine Control System Connector End View Except For California (15 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Engine Control System Connector End View Except For California (16 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.
