Component Parts Location

WARNING: This page is about a different variant/trim than selected.

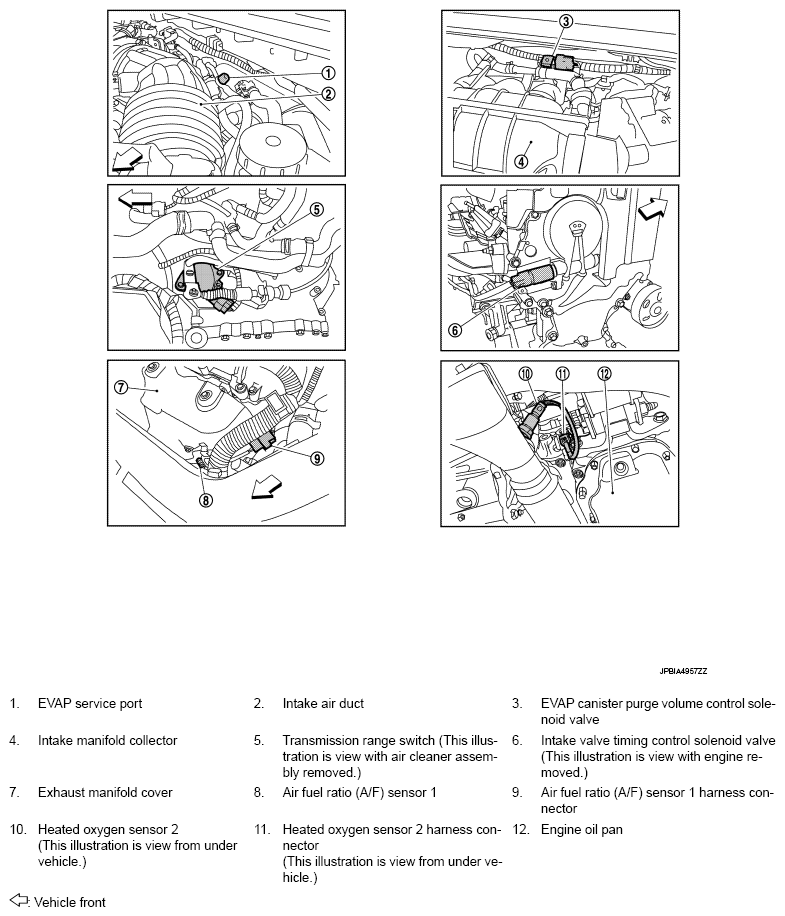

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

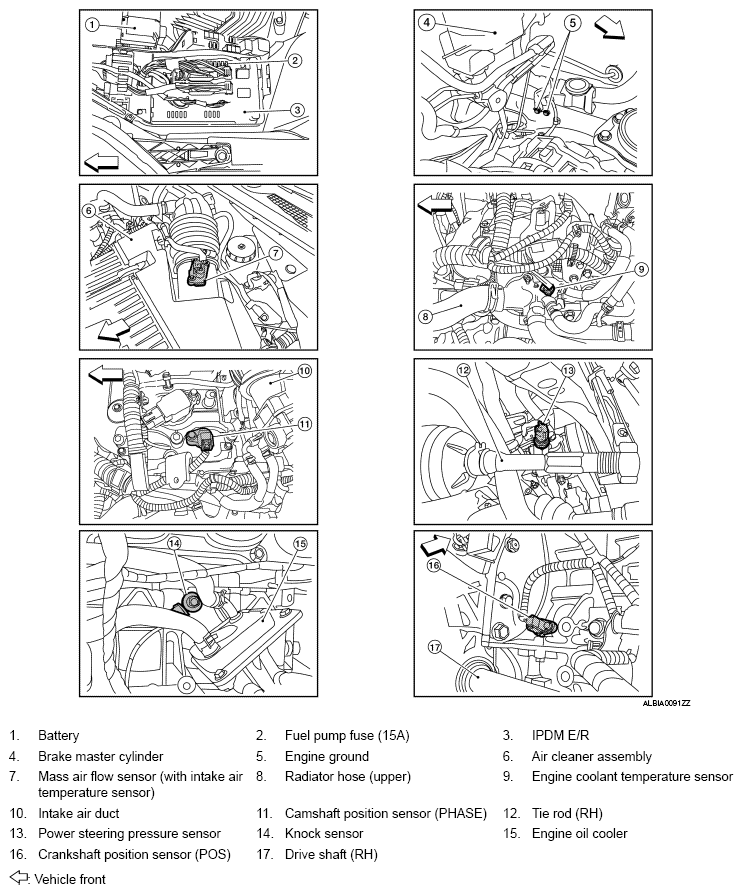

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

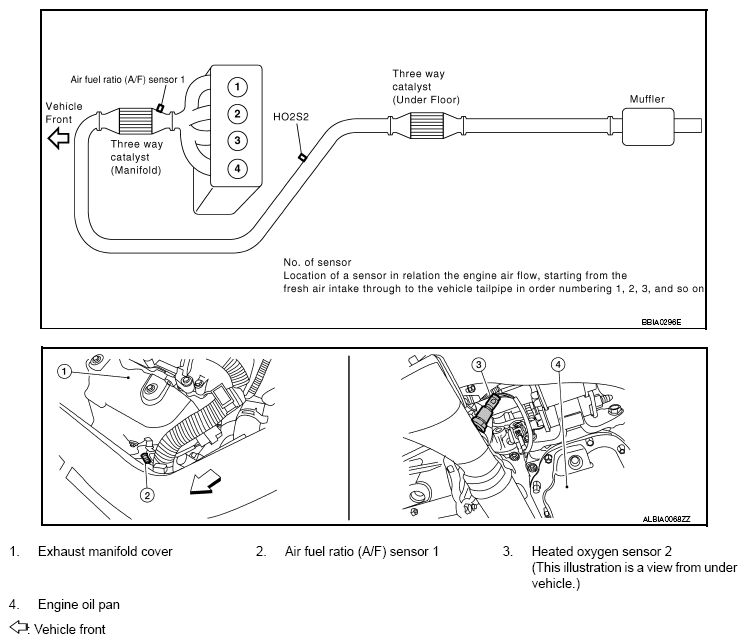

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

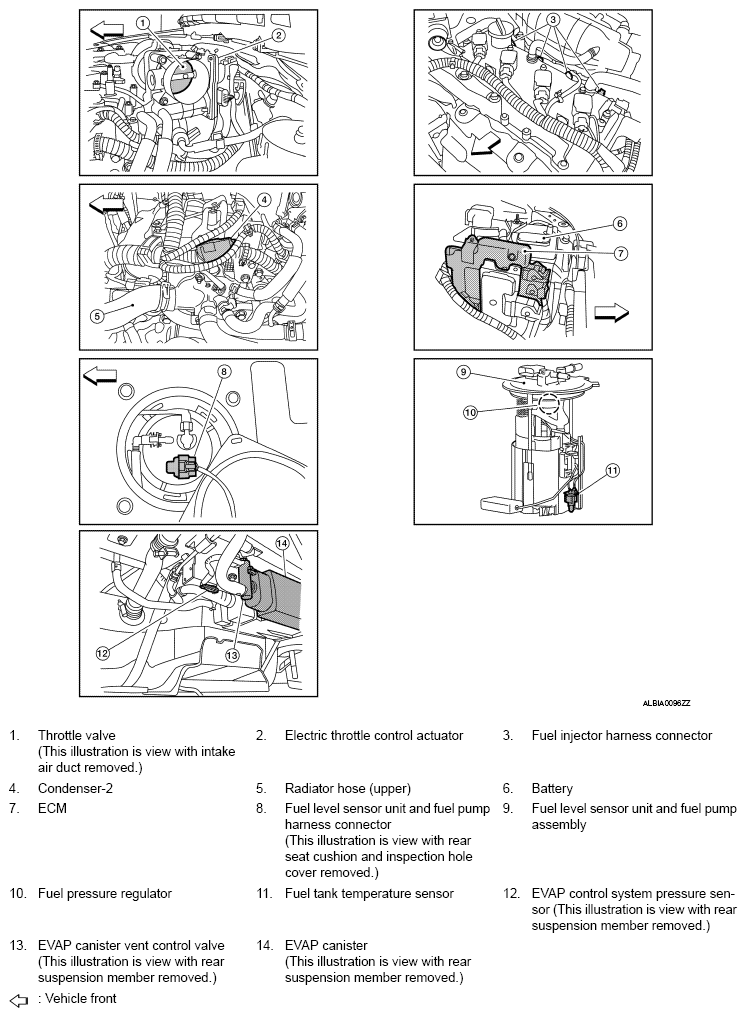

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

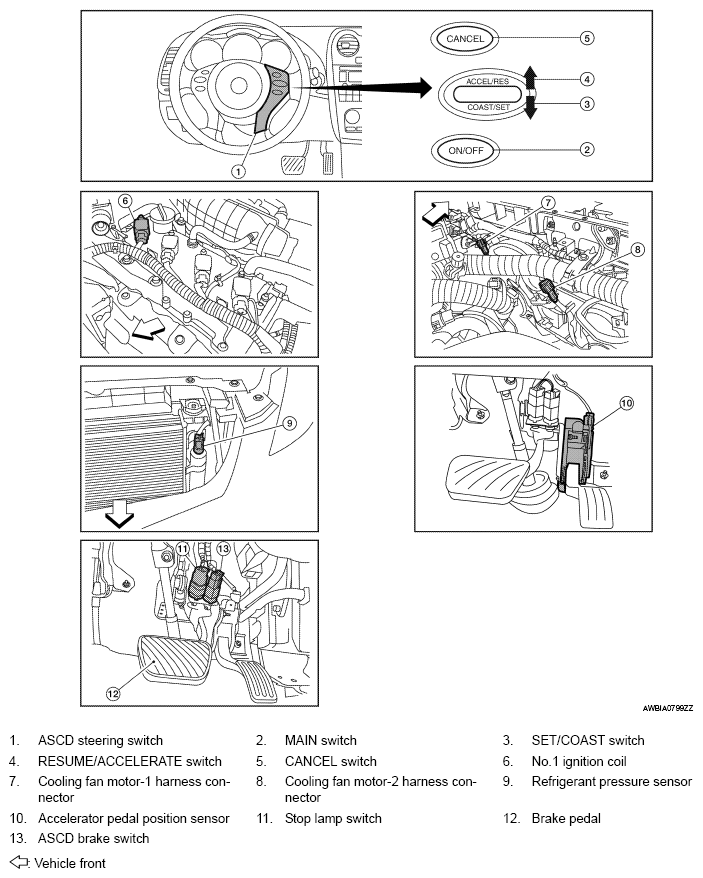

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

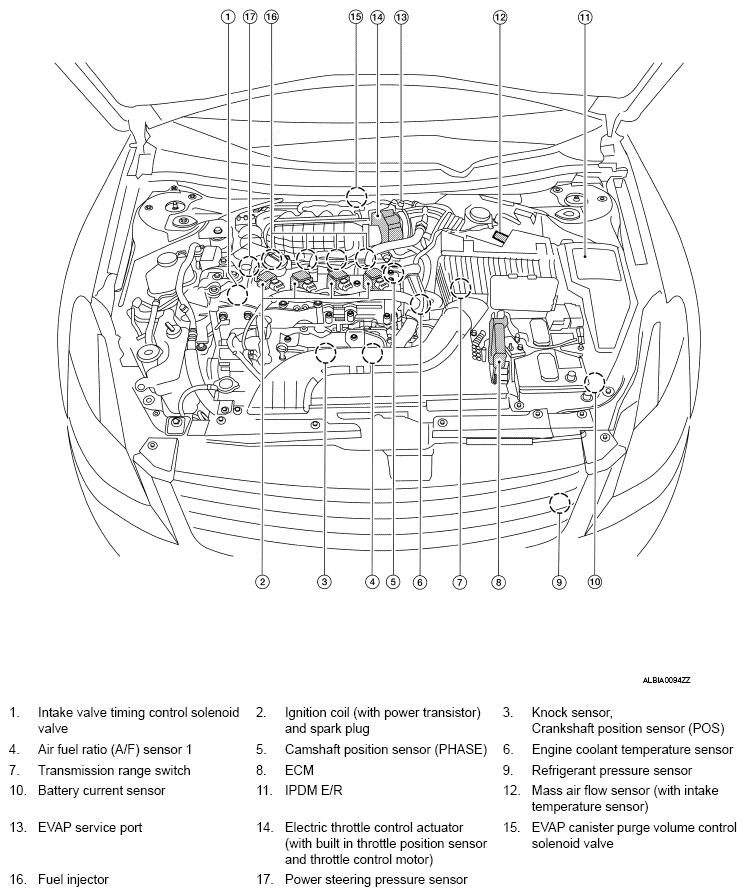

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
