Connector End View

WARNING: This page is about a different variant/trim than selected.
Fig 1: Engine Control System Connector End View For California (1 Of 18)
G08903400Courtesy of NISSAN NORTH AMERICA, INC.

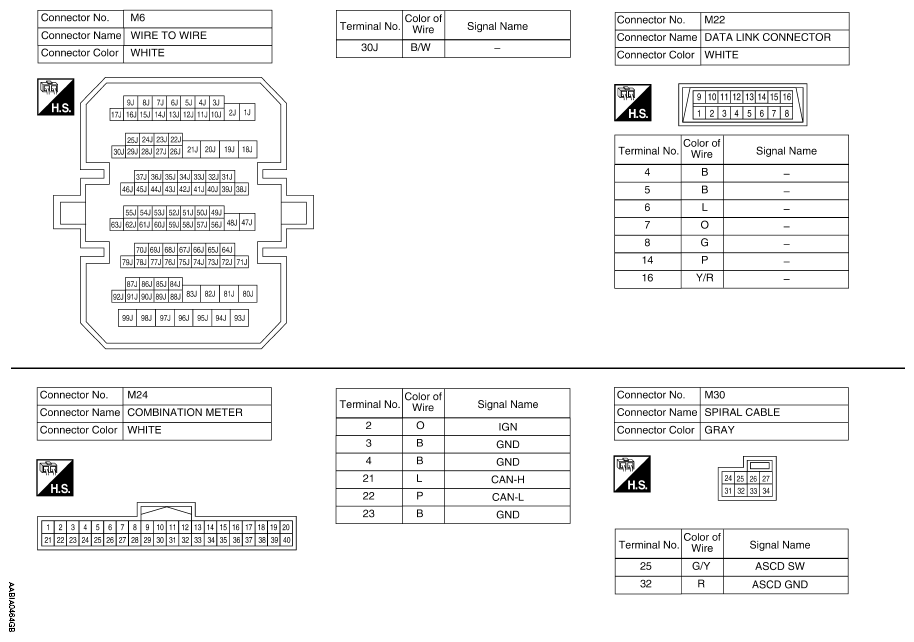

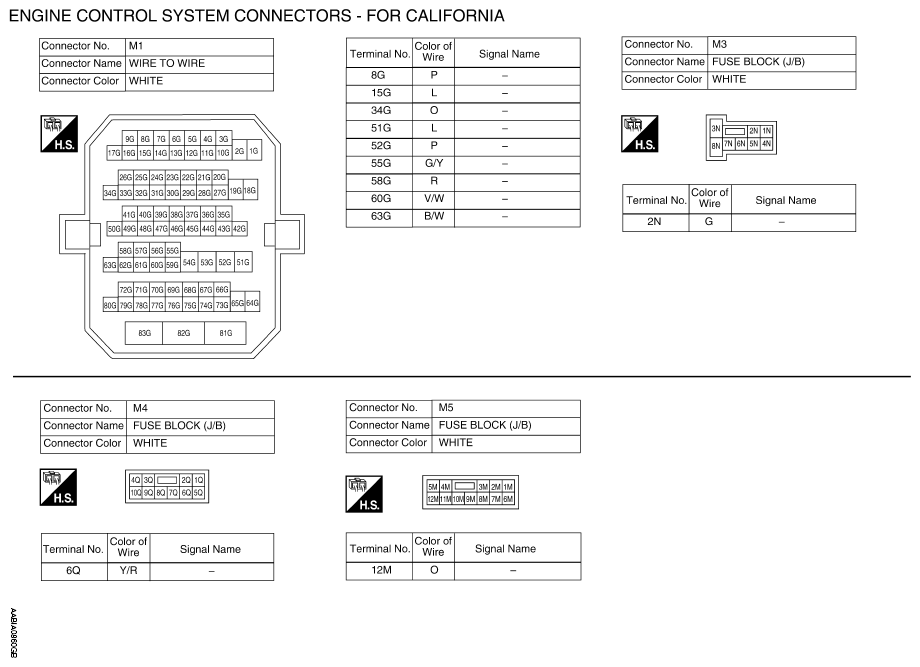

Fig 2: Engine Control System Connector End View For California (2 Of 18)
G08903401Courtesy of NISSAN NORTH AMERICA, INC.

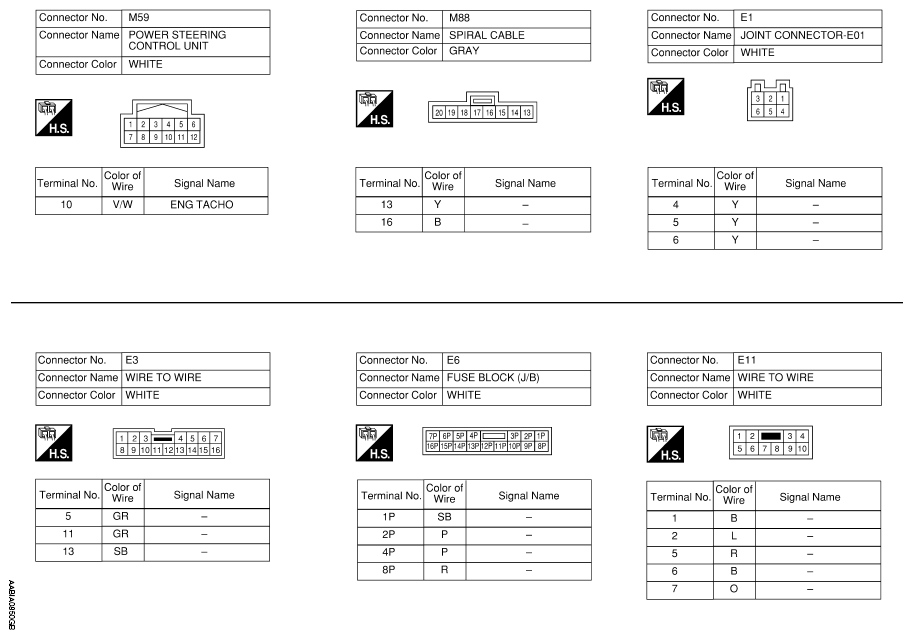

Fig 3: Engine Control System Connector End View For California (3 Of 18)
G08903402Courtesy of NISSAN NORTH AMERICA, INC.

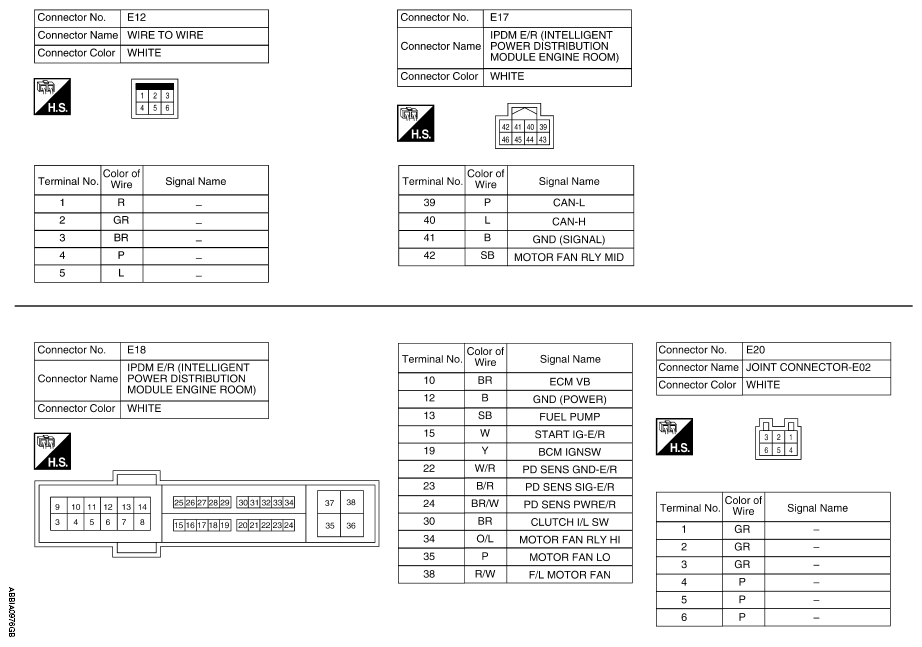

Fig 4: Engine Control System Connector End View For California (4 Of 18)
G08903403Courtesy of NISSAN NORTH AMERICA, INC.

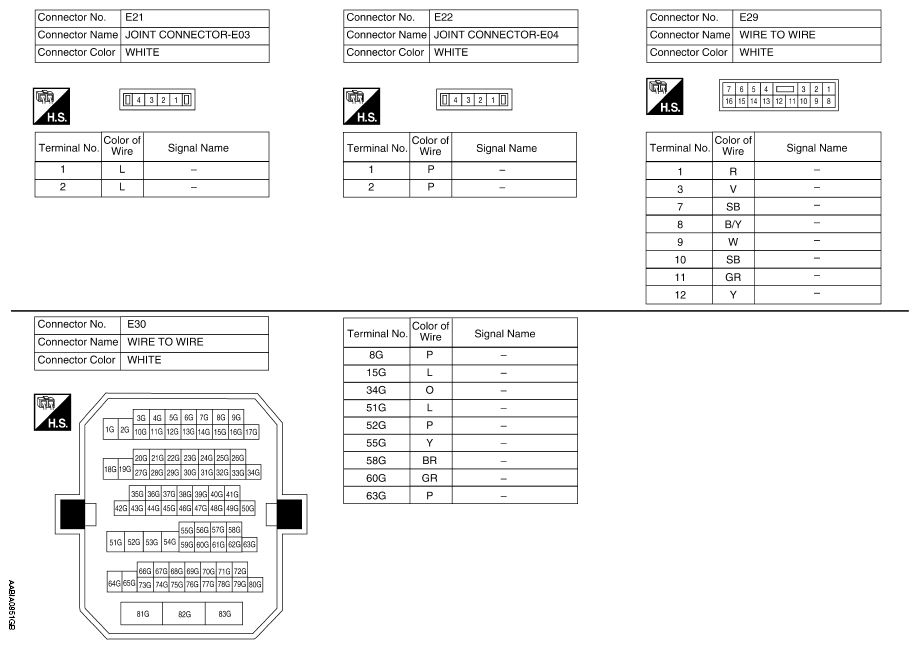

Fig 5: Engine Control System Connector End View For California (5 Of 18)
G08903404Courtesy of NISSAN NORTH AMERICA, INC.

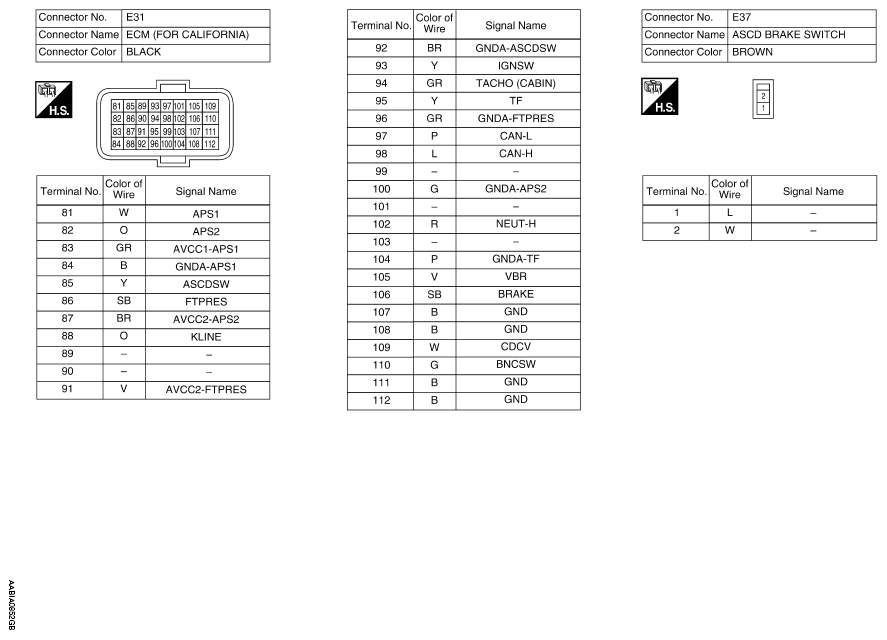

Fig 6: Engine Control System Connector End View For California (6 Of 18)
G08903405Courtesy of NISSAN NORTH AMERICA, INC.

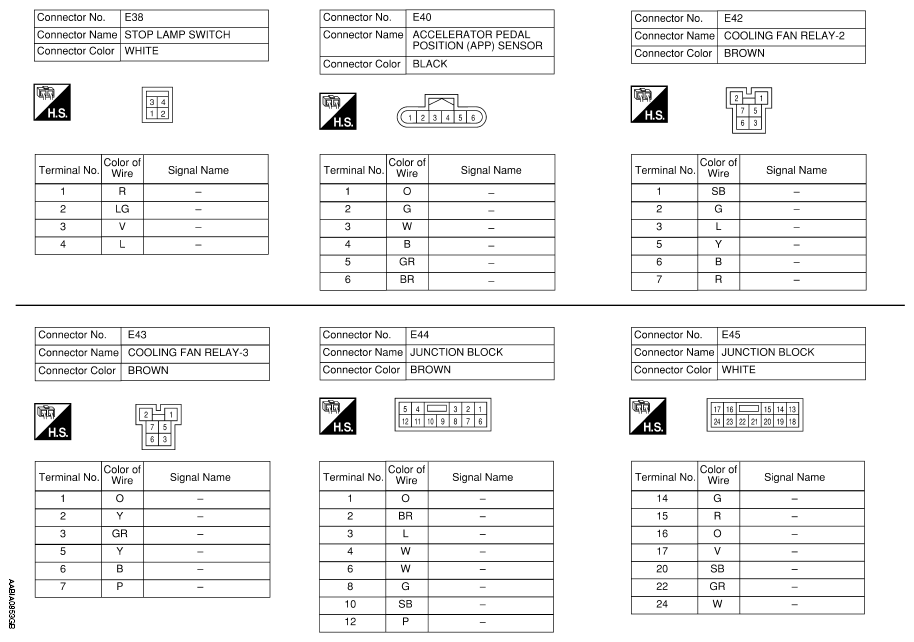

Fig 7: Engine Control System Connector End View For California (7 Of 18)
G08903406Courtesy of NISSAN NORTH AMERICA, INC.

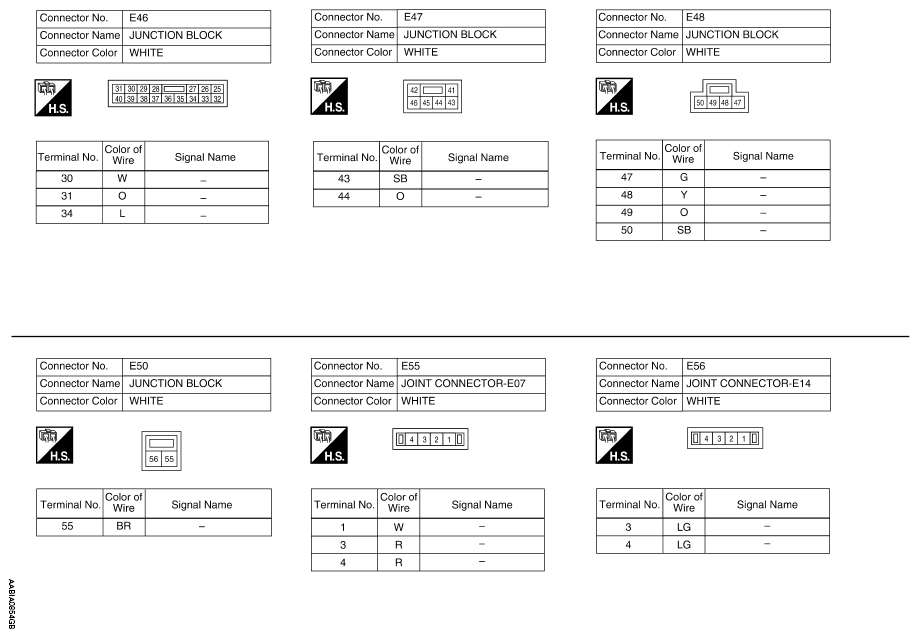

Fig 8: Engine Control System Connector End View For California (8 Of 18)
G08903407Courtesy of NISSAN NORTH AMERICA, INC.

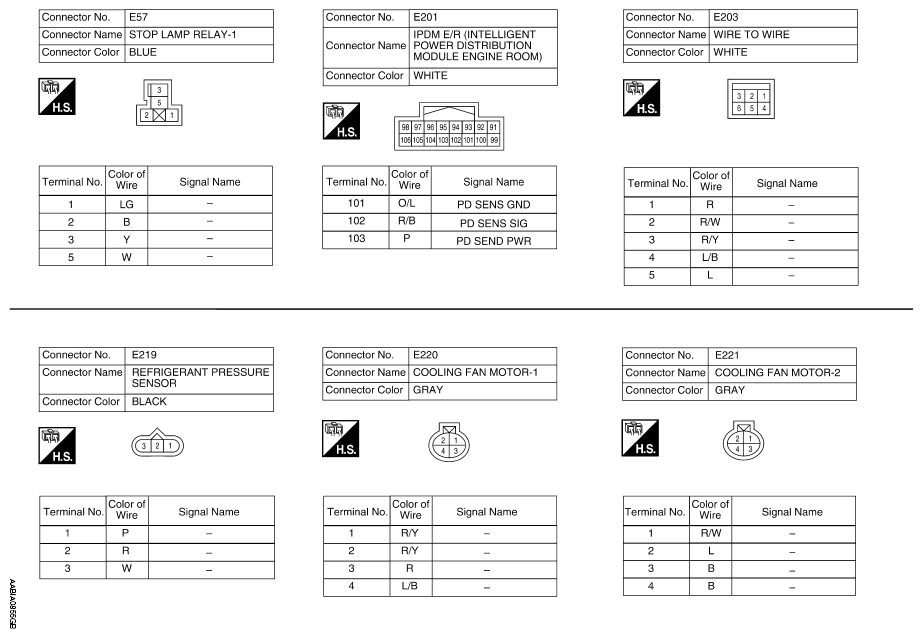

Fig 9: Engine Control System Connector End View For California (9 Of 18)
G08903408Courtesy of NISSAN NORTH AMERICA, INC.

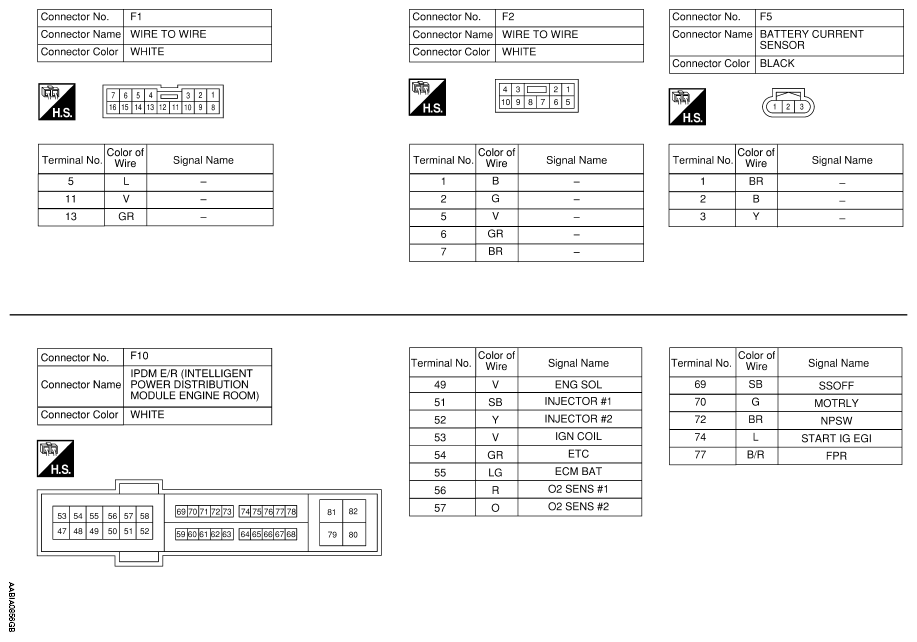

Fig 10: Engine Control System Connector End View For California (10 Of 18)
G08903409Courtesy of NISSAN NORTH AMERICA, INC.

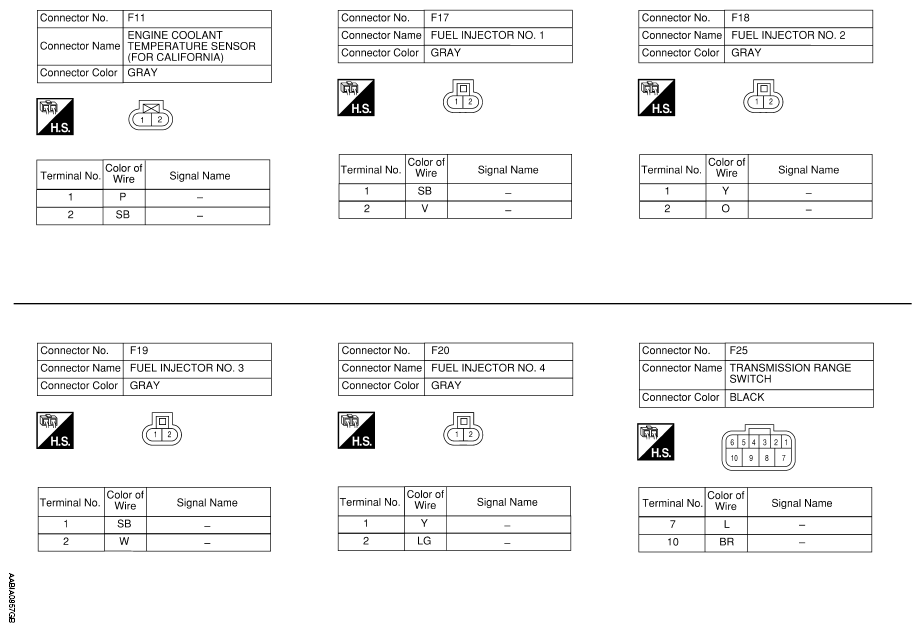

Fig 11: Engine Control System Connector End View For California (11 Of 18)
G08903410Courtesy of NISSAN NORTH AMERICA, INC.

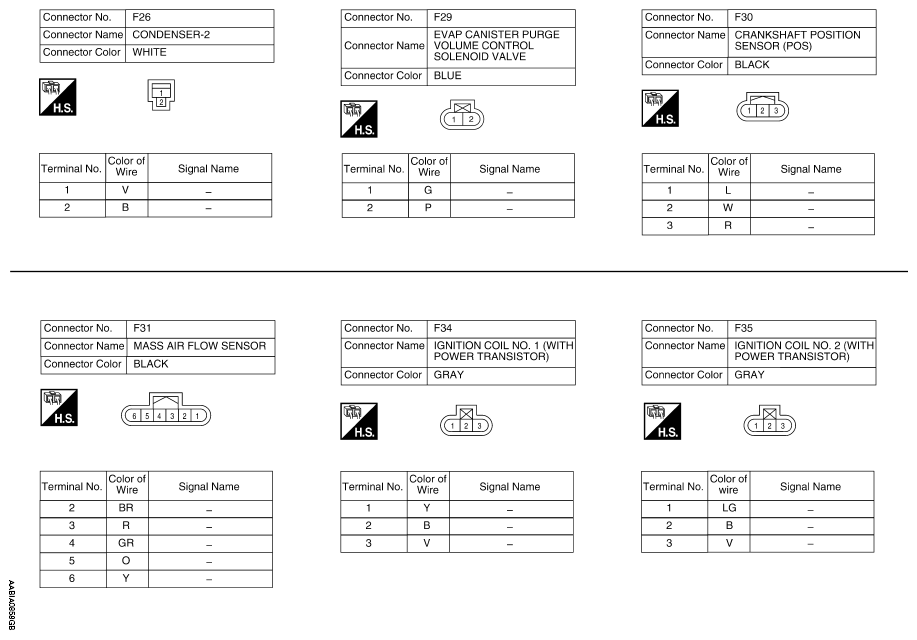

Fig 12: Engine Control System Connector End View For California (12 Of 18)
G08903411Courtesy of NISSAN NORTH AMERICA, INC.
Fig 13: Engine Control System Connector End View For California (13 Of 18)
G08903412Courtesy of NISSAN NORTH AMERICA, INC.

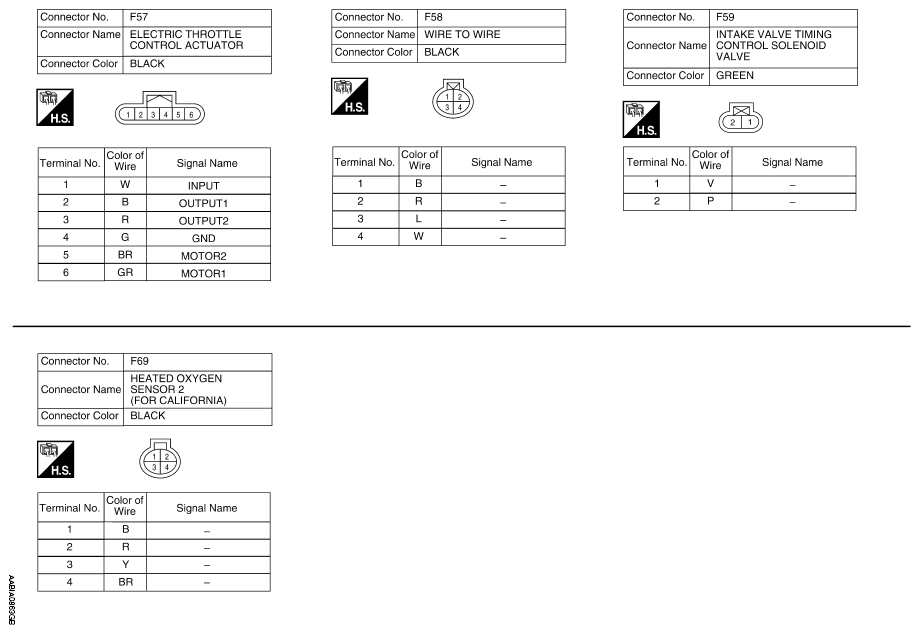

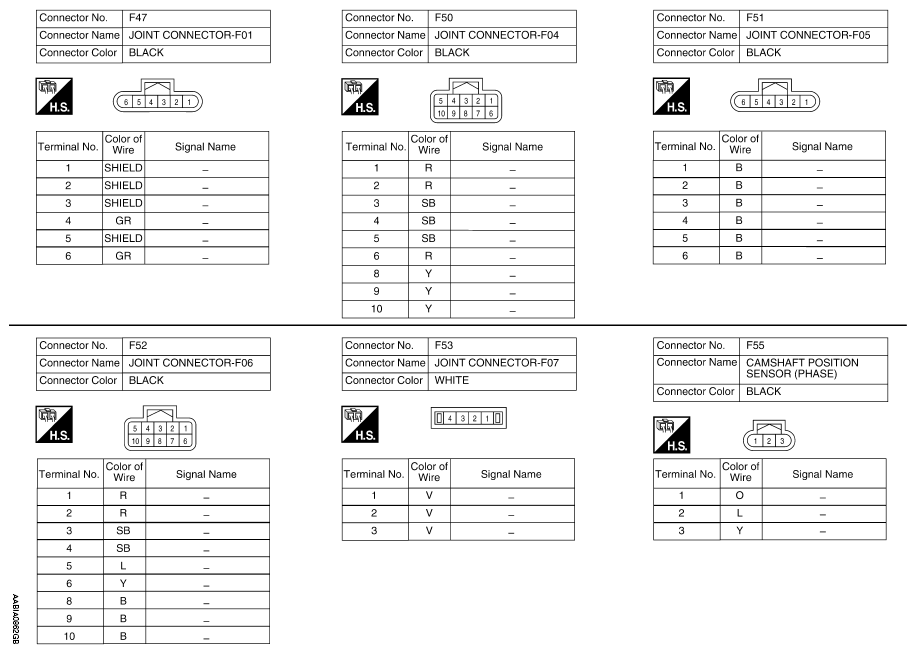

Fig 14: Engine Control System Connector End View For California (14 Of 18)
G08903413Courtesy of NISSAN NORTH AMERICA, INC.

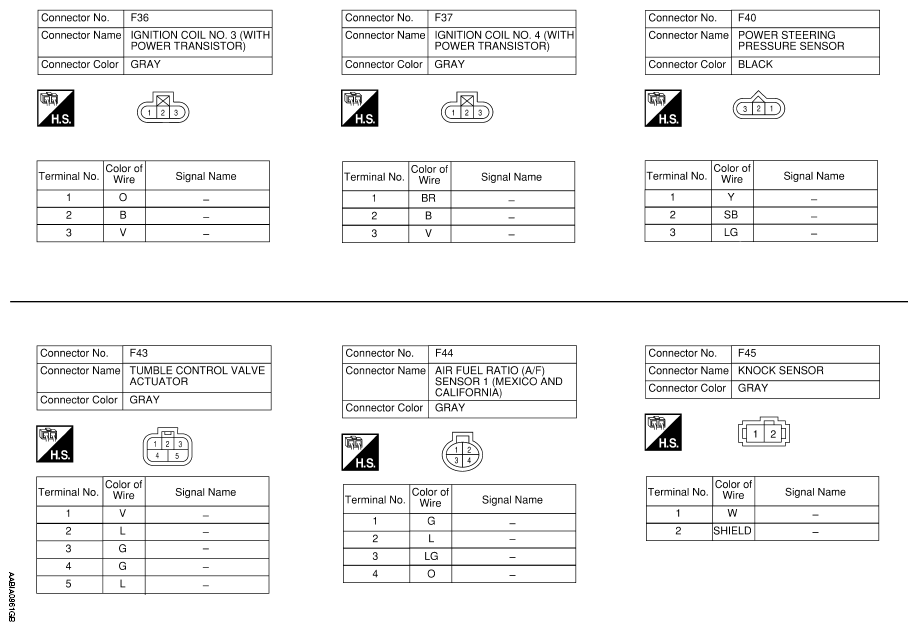

Fig 15: Engine Control System Connector End View For California (15 Of 18)
G08903414Courtesy of NISSAN NORTH AMERICA, INC.

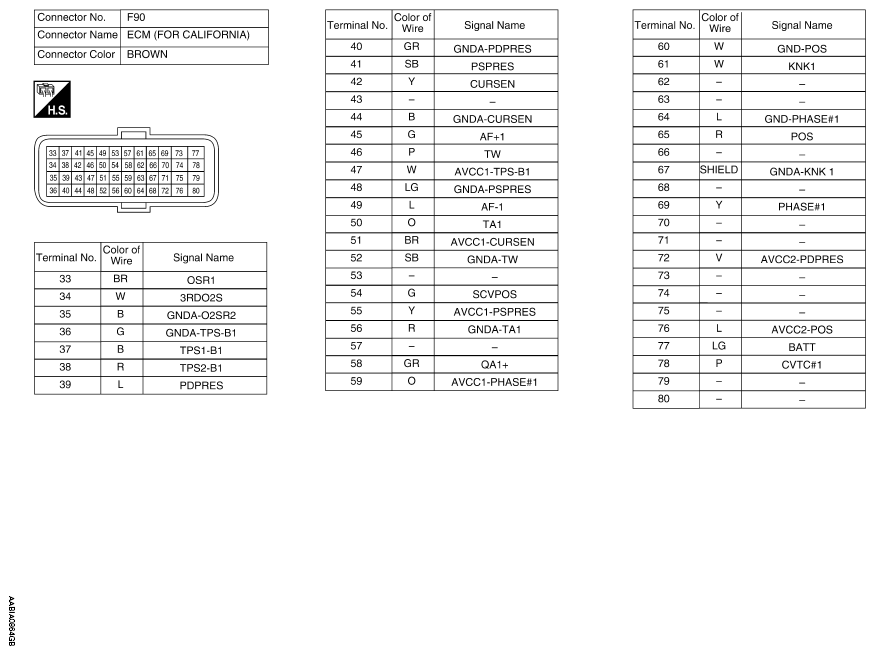

Fig 16: Engine Control System Connector End View For California (16 Of 18)
G08903415Courtesy of NISSAN NORTH AMERICA, INC.

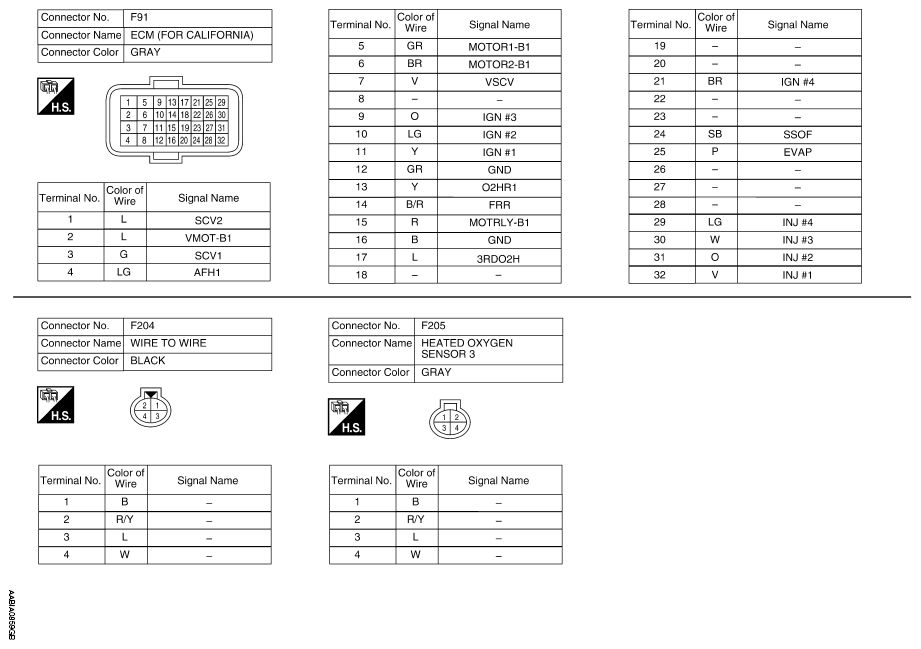

Fig 17: Engine Control System Connector End View For California (17 Of 18)
G08903416Courtesy of NISSAN NORTH AMERICA, INC.

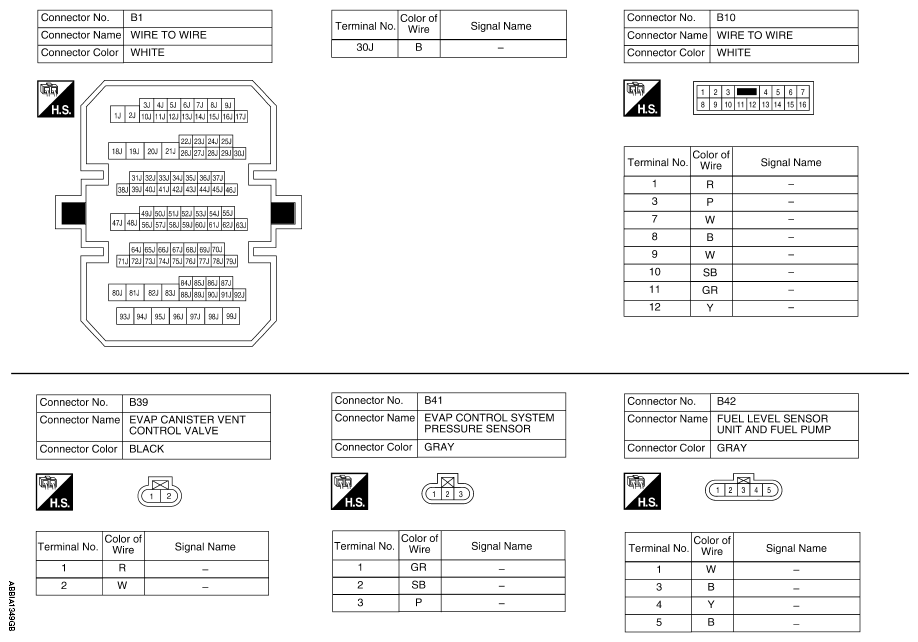

Fig 18: Engine Control System Connector End View For California (18 Of 18)
G08903417Courtesy of NISSAN NORTH AMERICA, INC.
