Section 21 (Engine Control System (Introduction) (CALIFORNIA) (Coupe))
>>
Basic Inspection
>>
Diagnosis And Repair Workflow
>>
Work Flow
>>
Overall Sequence
Overall Sequence
WARNING:
This page is about a different variant/trim than selected.

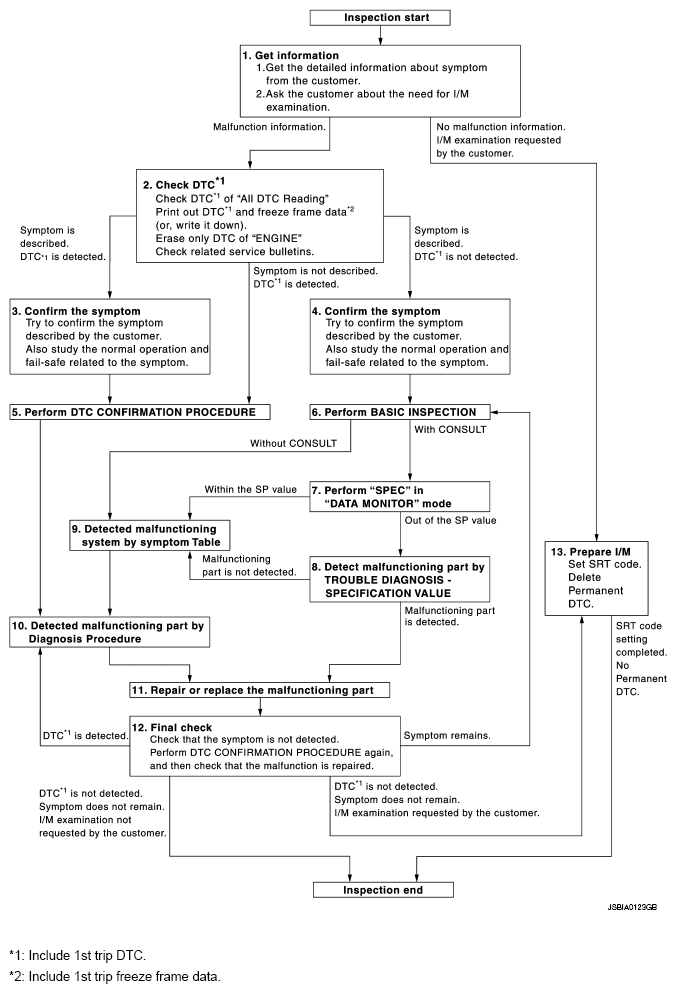

Fig 1: Diagnosis And Repair Workflow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
