Side Curtain Air Bag Module
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes

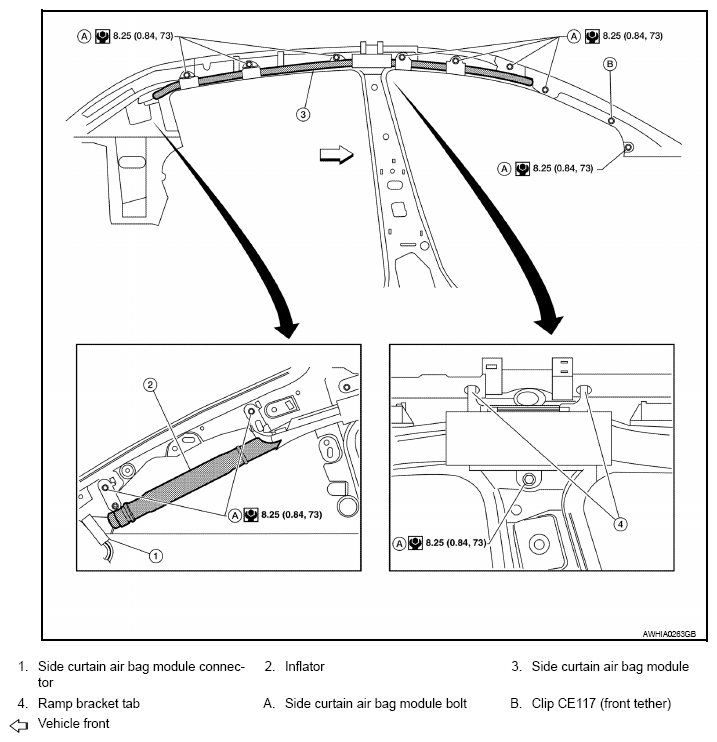

Fig 1: Side Curtain Air Bag Module Replacement Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
