Gear Components

WARNING: This page is about a different variant/trim than selected.

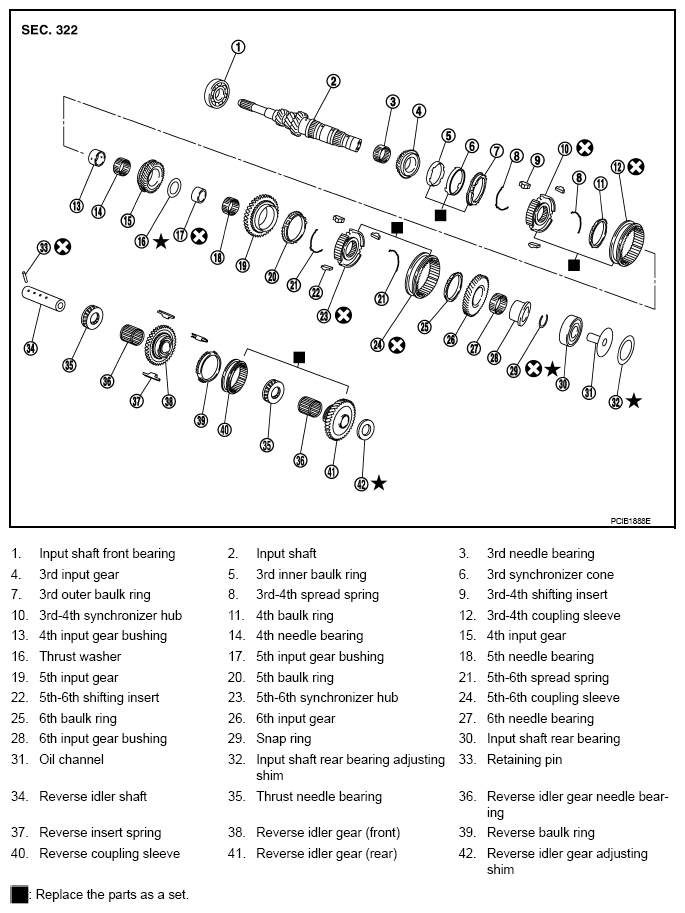

Fig 1: Disassembled View Of Transaxle Assembly Gear Components With Torque Specification (1 Of 2)
G08180471Courtesy of NISSAN NORTH AMERICA, INC.

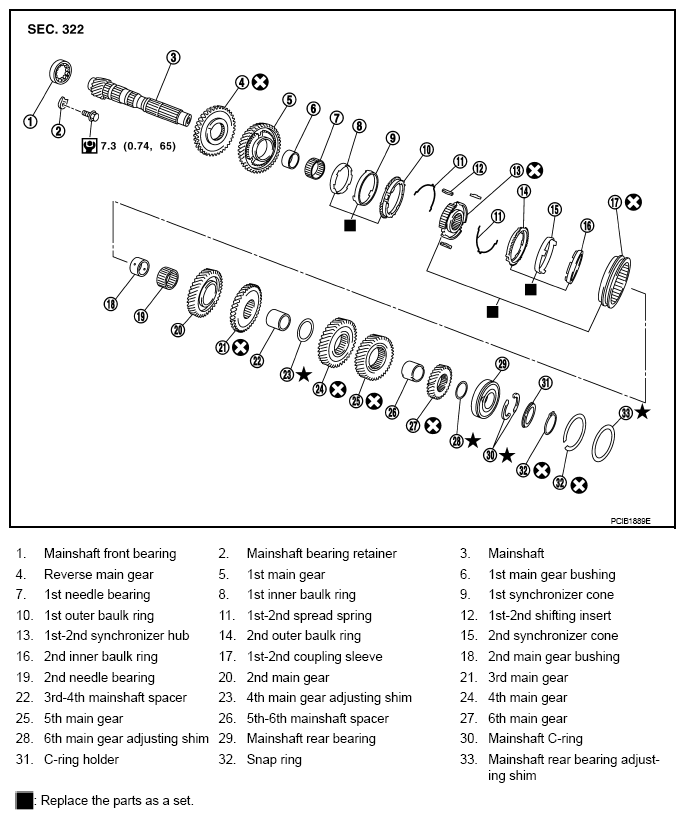

Fig 2: Disassembled View Of Transaxle Assembly Gear Components With Torque Specification (2 Of 2)
G08180472Courtesy of NISSAN NORTH AMERICA, INC.
