Fixed Back Seat

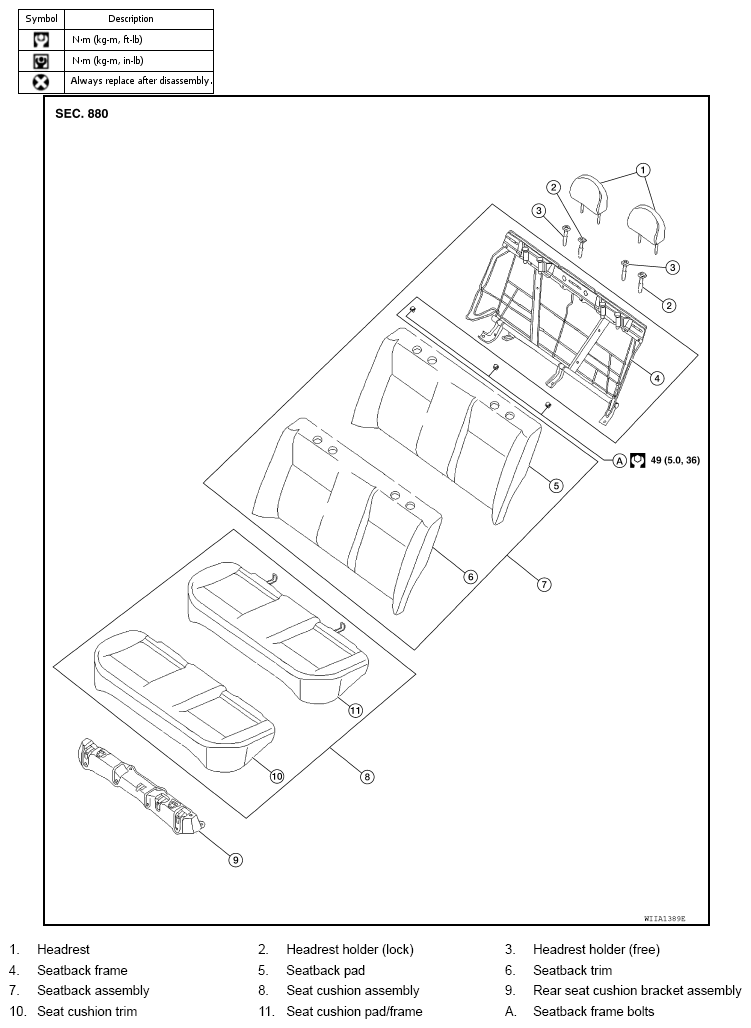

Fig 1: Exploded View Of Fixed Back Seat With Torque Specification

G08503247

Courtesy of NISSAN NORTH AMERICA, INC.
