Trunk Lid Stay Disposal

Secure trunk lid stay (1) using a vise (C).
Using hacksaw (A) slowly make 2 holes in the trunk lid stay, in numerical order as shown in the figure below.
CAUTION:
- When cutting a hole on trunk lid stay, always cover a hacksaw using a shop cloth (B) to avoid scattering metal fragments or oil.
- Wear eye protection (safety glasses).
- Wear gloves.
Fig 1: Cutting Hole In Trunk Lid Stay
Courtesy of NISSAN NORTH AMERICA, INC.

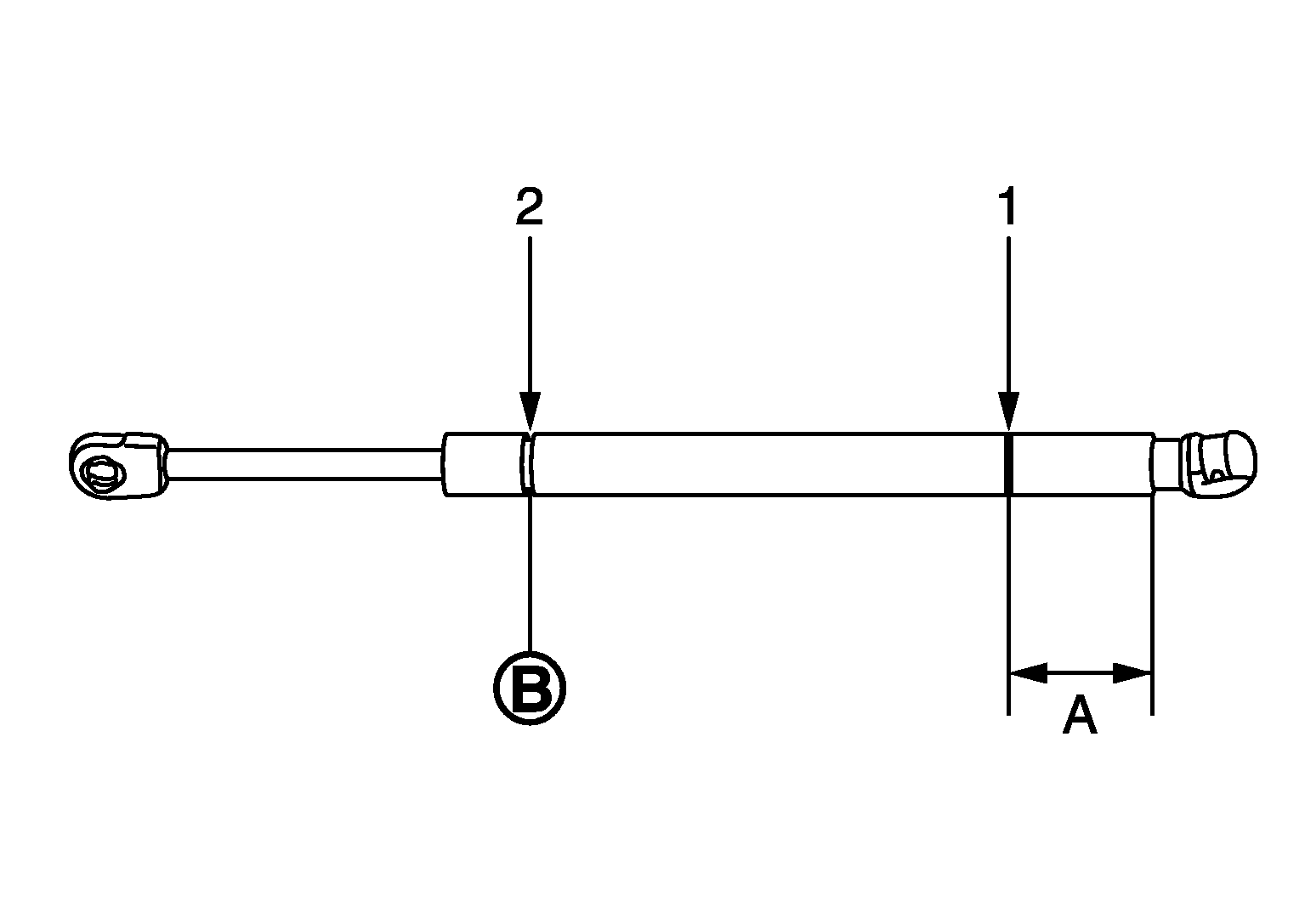

A: 20 mm (0.787 in)

B: Cut at the groove .

Fig 2: Identifying Cutting Location
Courtesy of NISSAN NORTH AMERICA, INC.
