Component Parts and Harness Connector Location

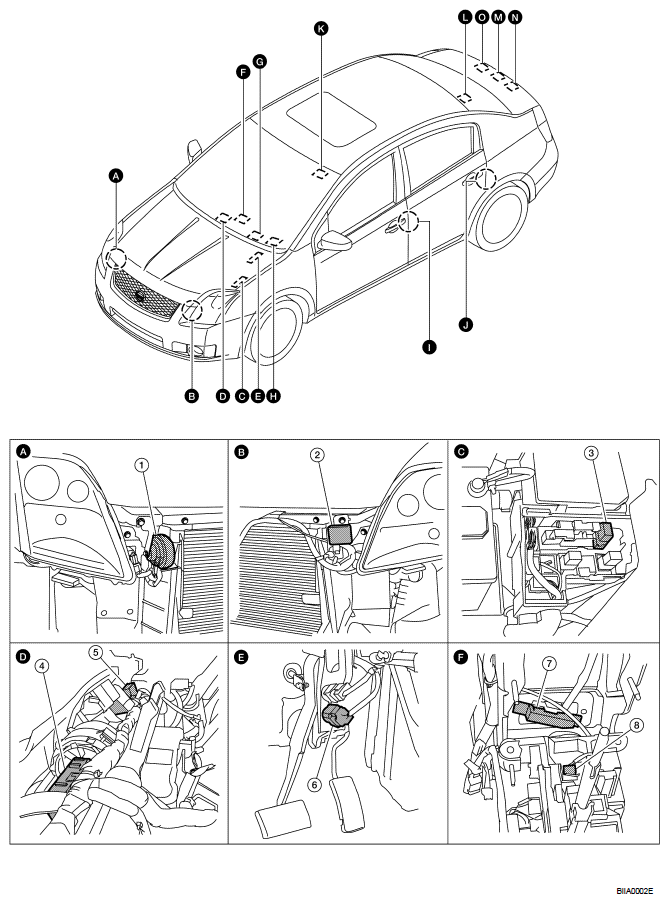

Fig 1: Intelligent Key System Component Parts Location (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

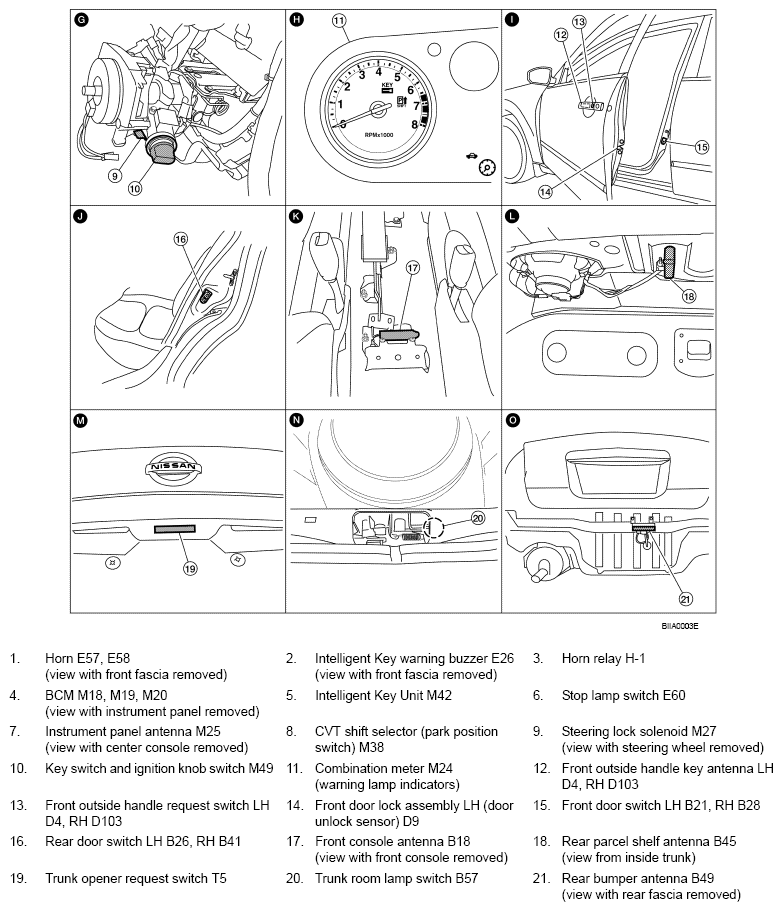

Fig 2: Intelligent Key System Component Parts Location (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
