OIL PRESSURE CONTROL SYSTEM: System Diagram

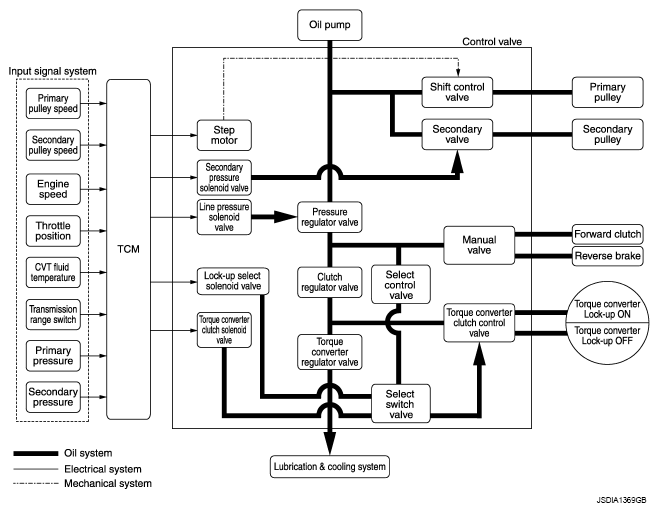

Fig 1: Identifying Oil Pressure Control System Diagram

G07051967

Courtesy of NISSAN NORTH AMERICA, INC.
