Left Side

WARNING: This page is about a different car, the 2011 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

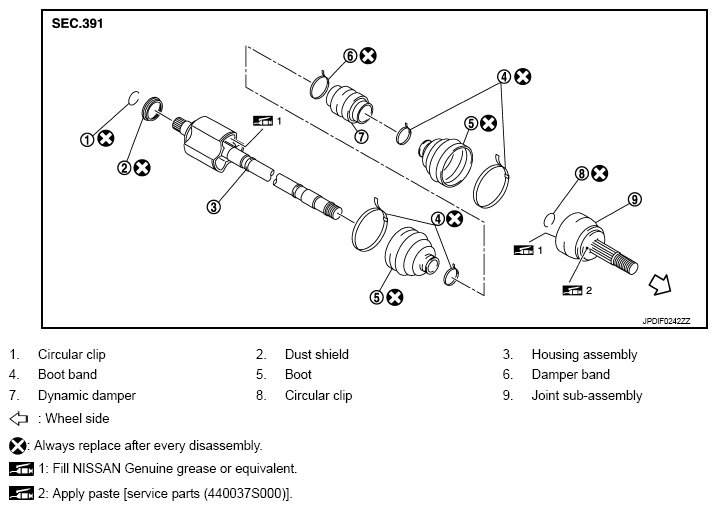

Fig 1: Exploded View Of Front Drive Shaft Boot - Left Side
G07051320Courtesy of NISSAN MOTOR CO., U.S.A.
