Unit Removal And Installation
>>
Transfer Assembly
>>
Exploded View
Exploded View

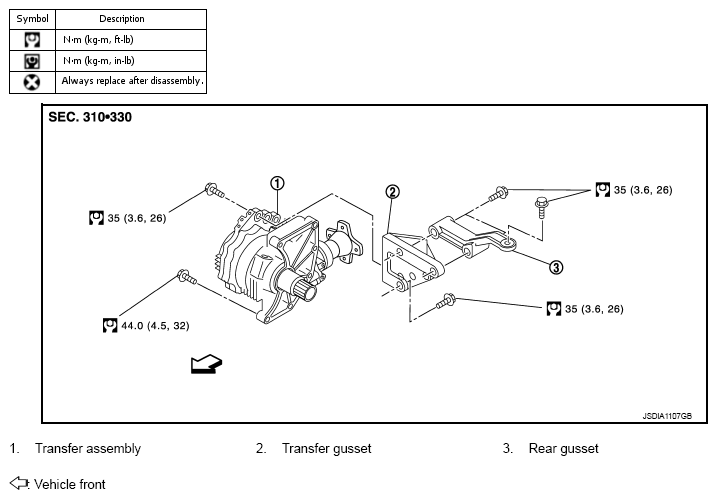

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
COMPONENTS
for symbols not described on the above.
