Nissan-Datsun
>>
2012
>>
Murano SL, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case (Except CROSSCABRIOLET)
>>
Unit Disassembly And Assembly
>>
Gear Ring
>>
Exploded View
Exploded View

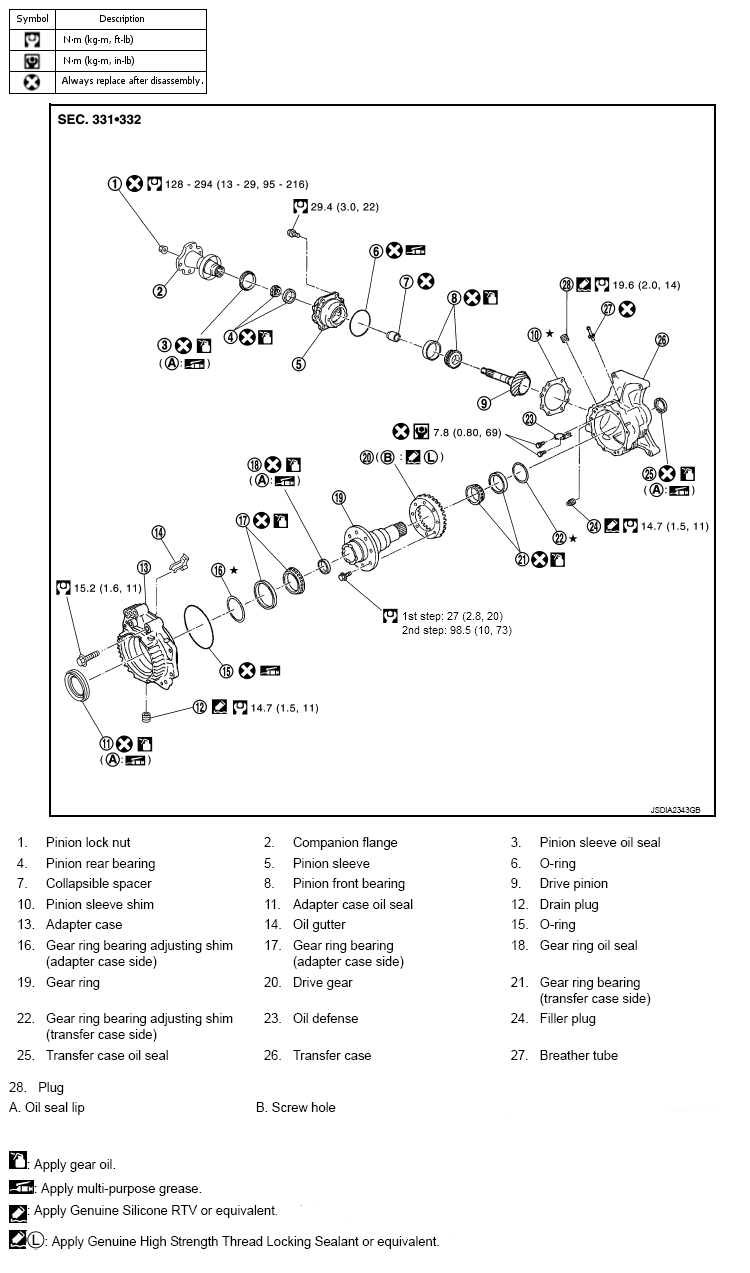

Fig 1: Exploded View Of Gear Ring With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
COMPONENTS
for symbols not described above.
