Transmission
>>
Transfer Case (Except CROSSCABRIOLET)
>>
System Description
>>
AWD System
>>
System Diagram
>>
Control Diagram
Control Diagram

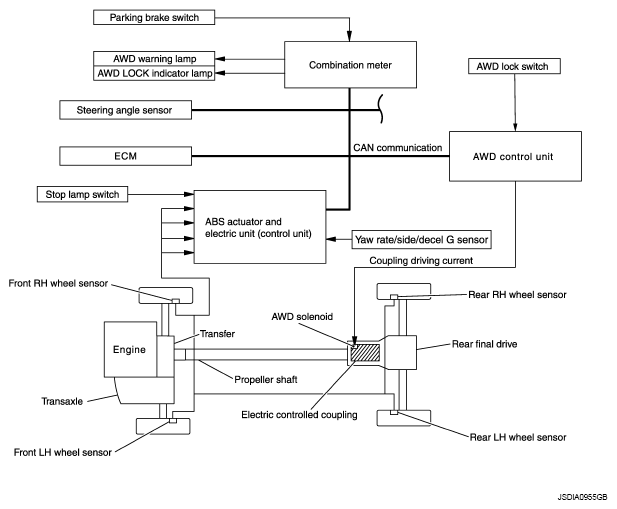

Fig 1: AWD System - Control Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
