Disassembly and Assembly: Notes

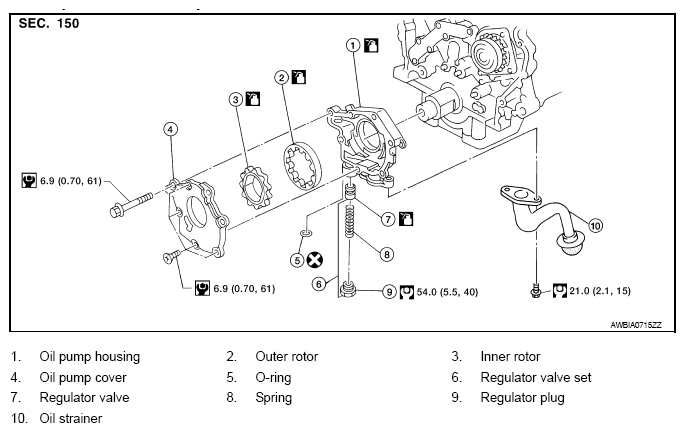

Fig 1: Disassembled View Of Oil Pump With Torque Specifications
G08145568Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Before assembly, apply new engine oil to the parts as shown.
