Front Seat: Component

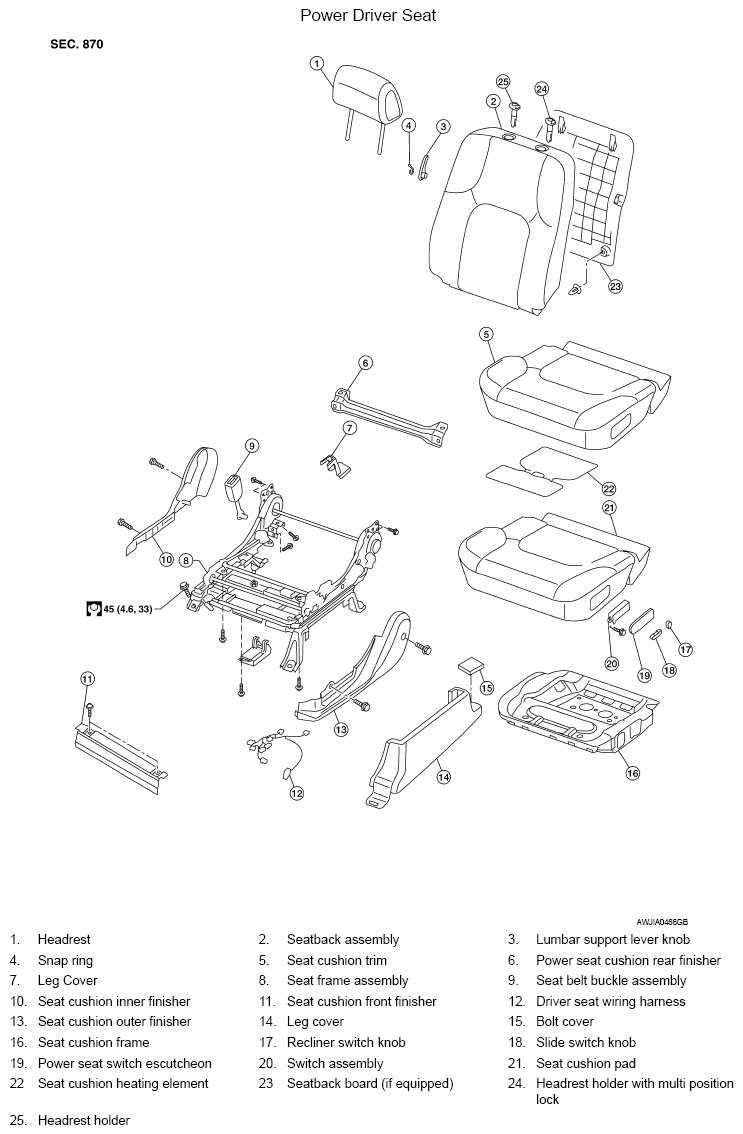

Fig 1: Exploded View Of Front Seat Replacement Components (Power Driver Seat) With Torque Specifications
G08137786Courtesy of NISSAN NORTH AMERICA, INC.

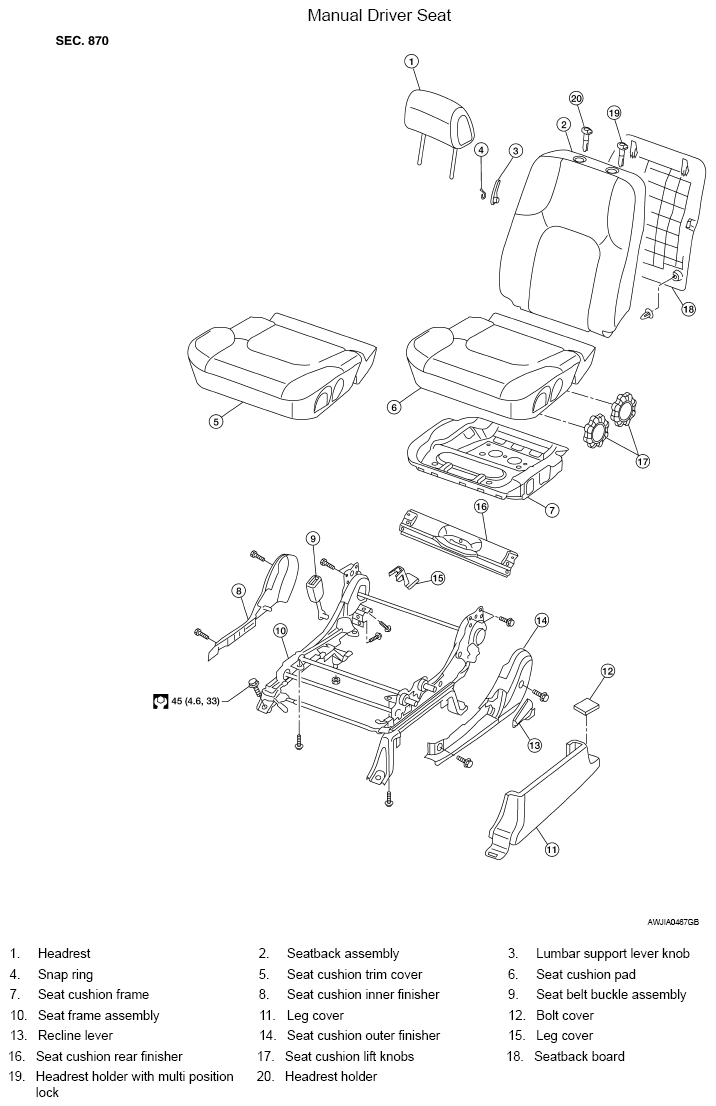

Fig 2: Exploded View Of Front Seat Replacement Components (Manual Driver Seat) With Torque Specifications
G08137787Courtesy of NISSAN NORTH AMERICA, INC.

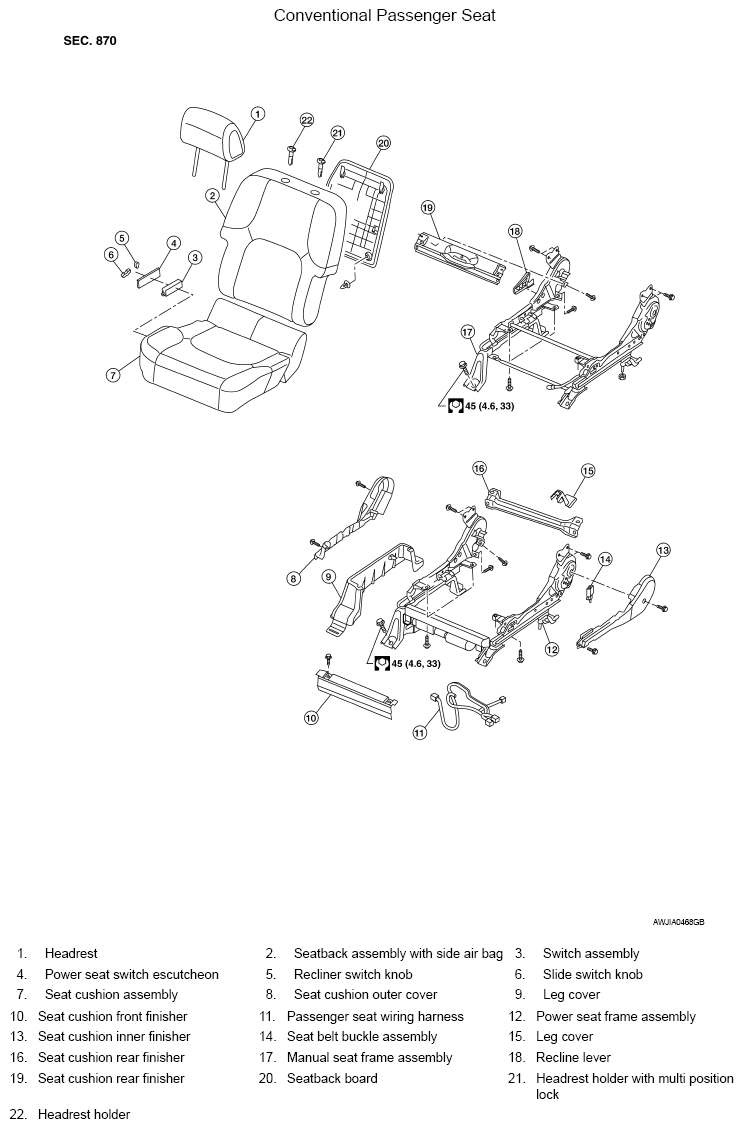

Fig 3: Exploded View Of Front Seat Replacement Components (Conventional Passenger Seat) With Torque Specifications
G08137788Courtesy of NISSAN NORTH AMERICA, INC.

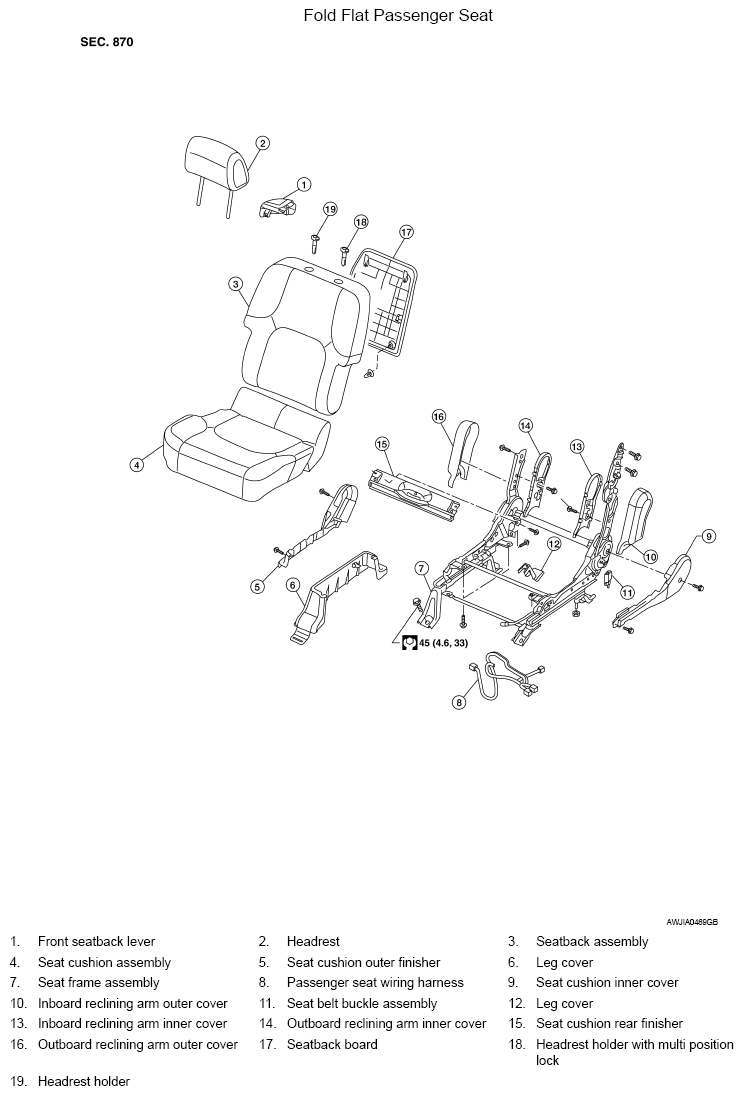

Fig 4: Exploded View Of Front Seat Replacement Components (Fold Flat Passenger Seat) With Torque Specifications
G08137789Courtesy of NISSAN NORTH AMERICA, INC.
