Connector Terminal Identification - Sedan With ABS

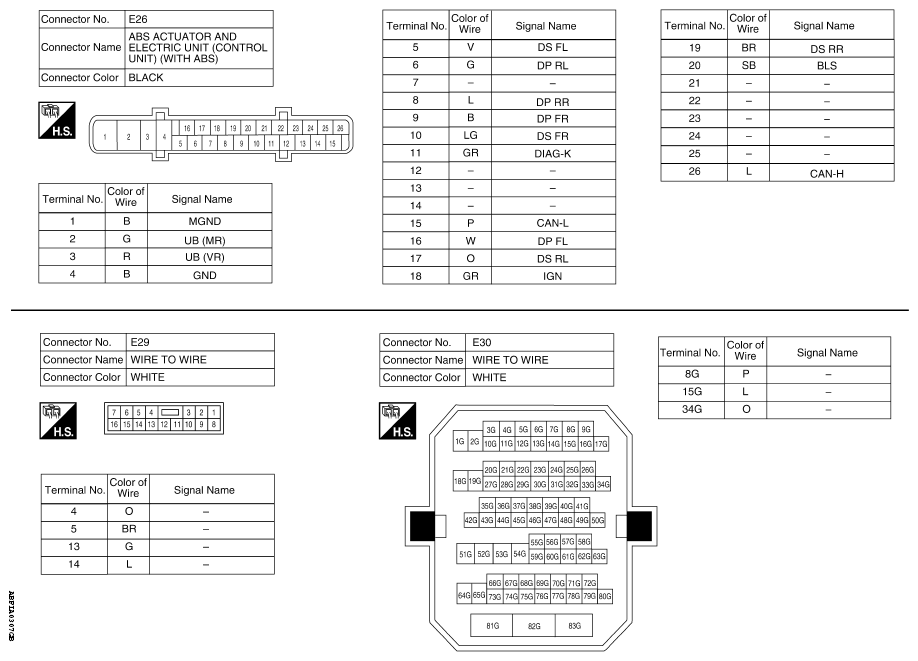

Fig 1: Identifying Brake Control System Connectors - Sedan With ABS (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

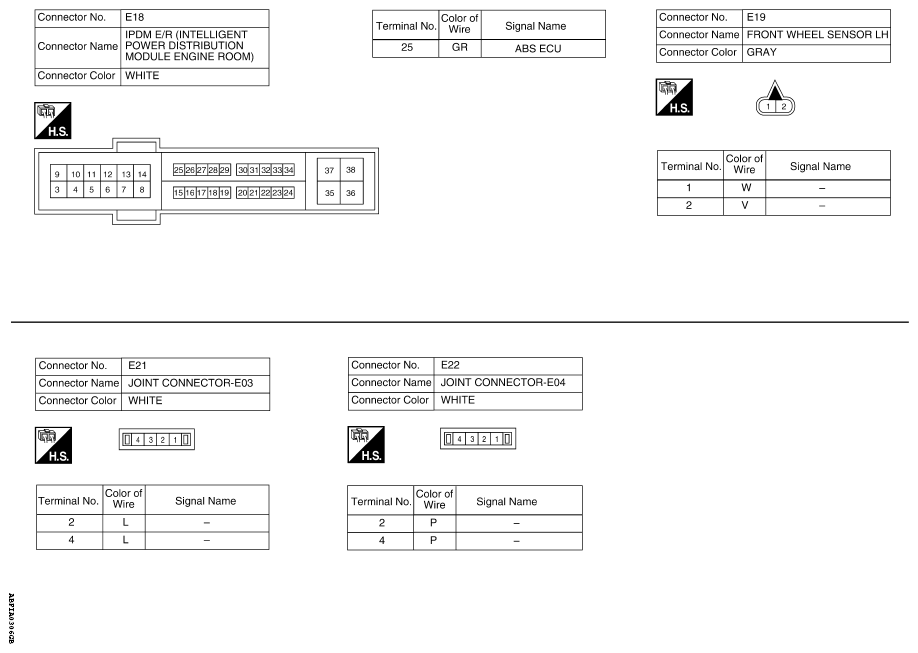

Fig 2: Identifying Brake Control System Connectors - Sedan With ABS (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

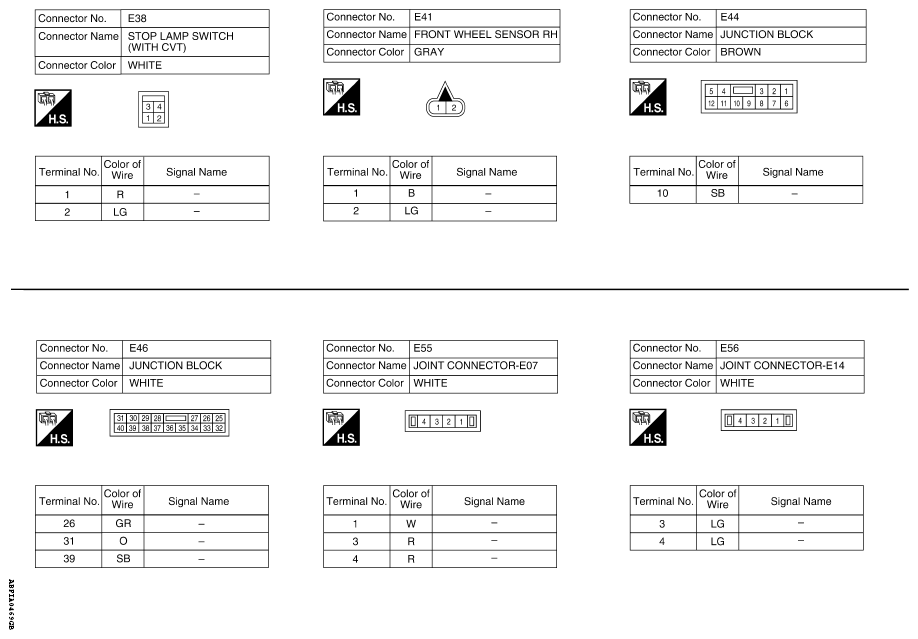

Fig 3: Identifying Brake Control System Connectors - Sedan With ABS (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

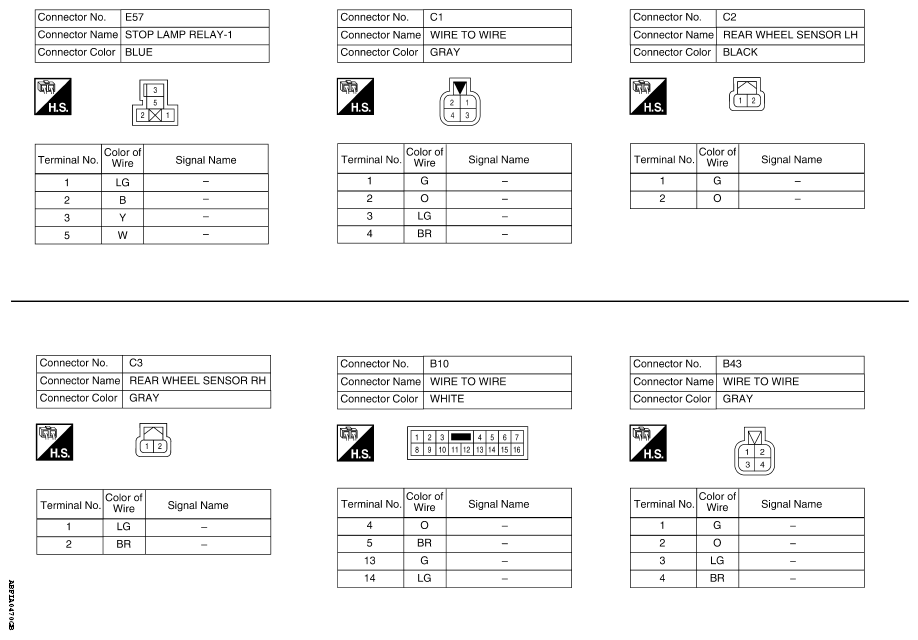

Fig 4: Identifying Brake Control System Connectors - Sedan With ABS (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

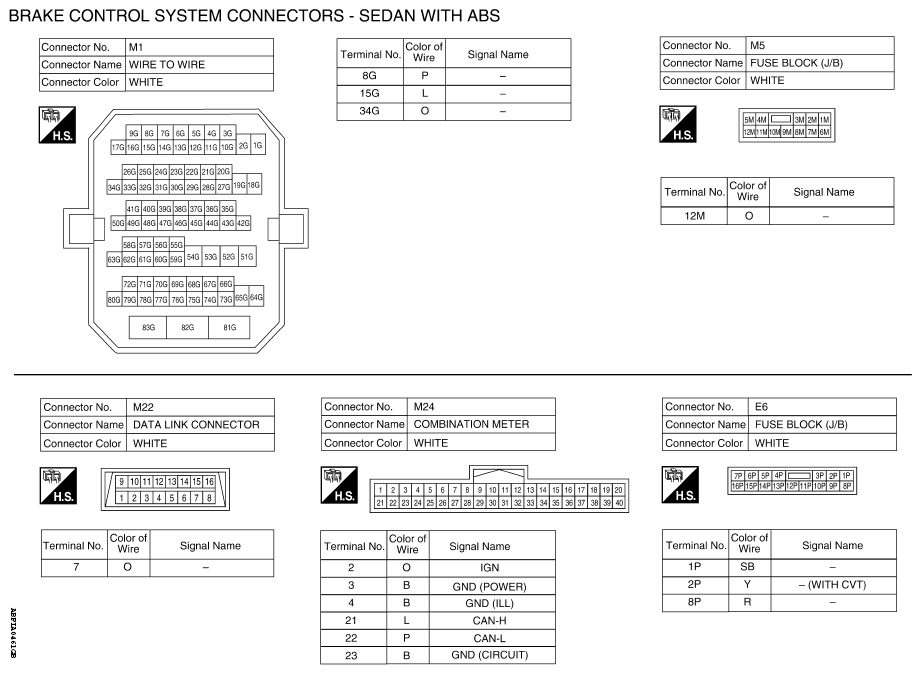

Fig 5: Identifying Brake Control System Connectors - Sedan With ABS (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
