Front Door Glass: Components

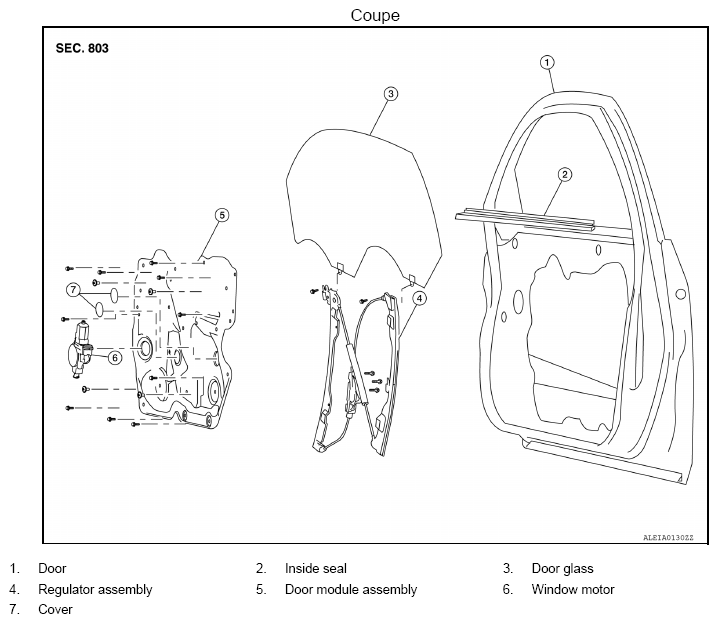

Fig 1: Identifying Front Door Glass Components - Coupe
G08438566Courtesy of NISSAN NORTH AMERICA, INC.

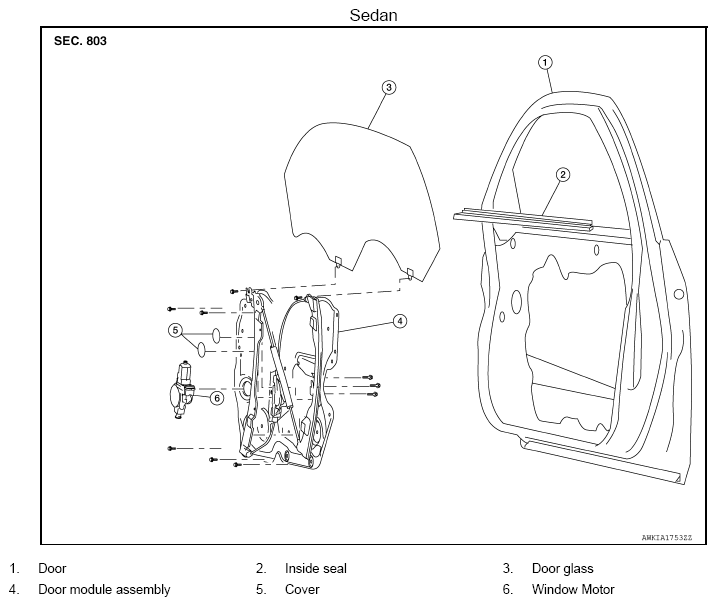

Fig 2: Identifying Front Door Glass Components - Sedan
G08438567Courtesy of NISSAN NORTH AMERICA, INC.
