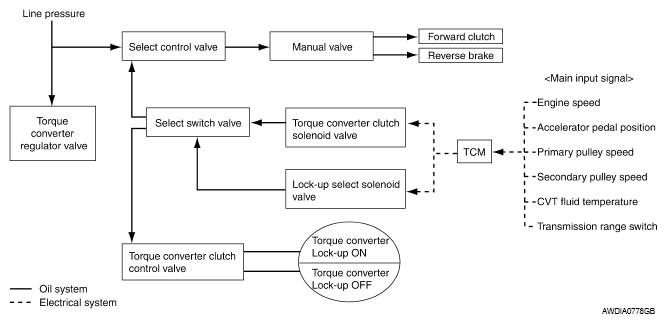

Home >> Nissan-Datsun >> 2011 >> Versa SL, 4D Hatchback >> Repair and Diagnosis >> Transmission >> Automatic Trans >> CVT >> Service Information >> CVT System >> Lock-up and Select Control >> Torque Converter Clutch And Select Control Valve Control >> Lock-up and Select Control System Diagram
