Operation Flow

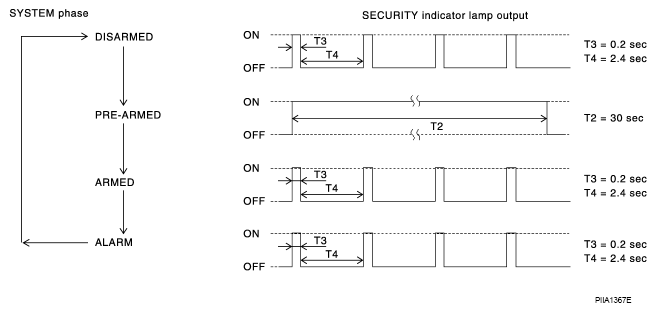

Fig 1: Security Indicator Lamp Output Timing Chart

G07135654

Courtesy of NISSAN MOTOR CO., U.S.A.
