Home
>>
Nissan-Datsun
>>
2011
>>
Quest SL
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System (With VDC)
>>
Removal And Installation
>>
Abs Actuator And Electric Unit (Control Unit)
>>
Exploded View
Exploded View

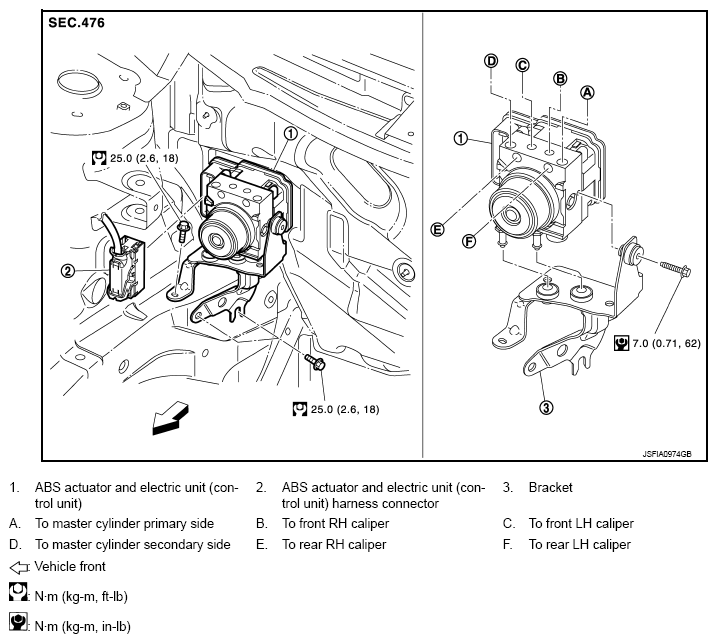

Fig 1: Exploded View Of ABS Actuator And Electric Unit With Torque Specifications (Control Unit)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
