System Diagram

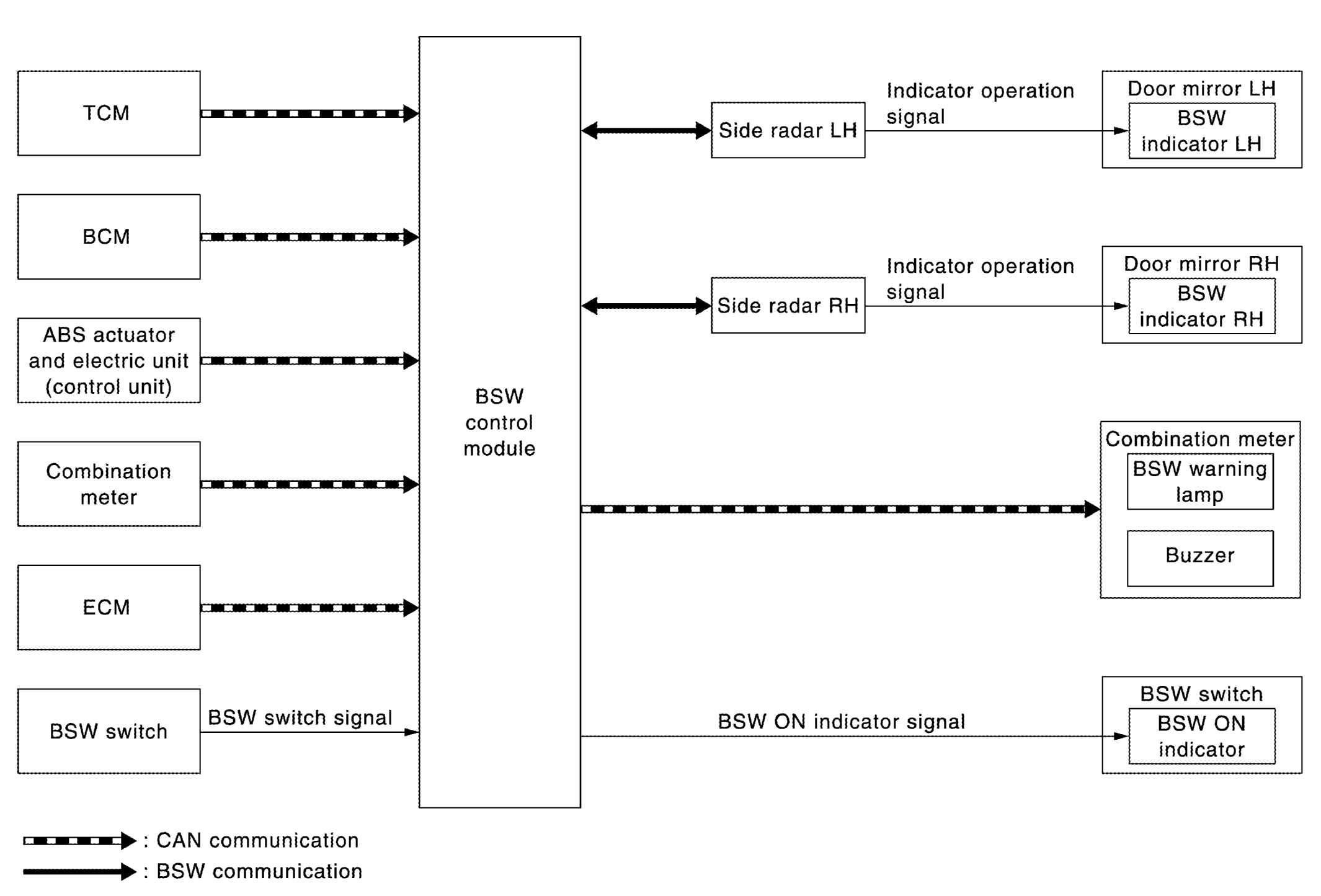

Fig 1: BSW Control Module Communication Diagram

G07054670

Courtesy of NISSAN MOTOR CO., U.S.A.
