Component Inspection

  1. CHECK VDC OFF SWITCH
    1. Turn ignition switch OFF.
    2. Disconnect VDC OFF switch connector.
    3. Check continuity between VDC OFF switch terminals.
      CONTINUITY REFERENCE CHART

      VDC OFF switch terminals Condition Continuity
      1 - 2 VDC OFF switch is pressed ON Yes
      VDC OFF switch is pressed OFF No

      Is the inspection result normal?

      YES >> Inspection End.

      NO >> Replace VDC OFF switch.

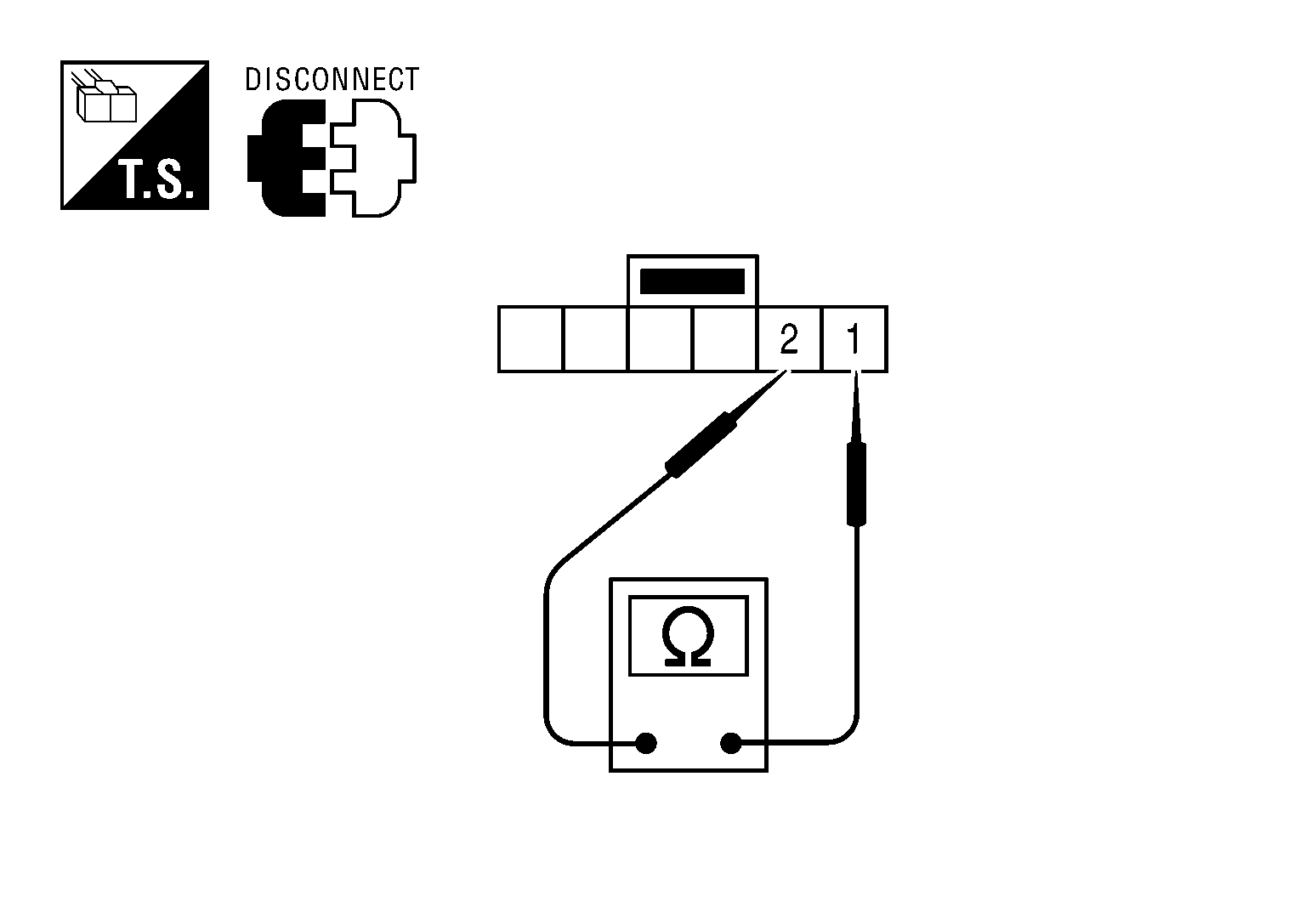

      Fig 1: Checking Continuity Between VDC OFF Switch Terminals
      G05871352Courtesy of NISSAN MOTOR CO., U.S.A.
