Exploded View: Removal

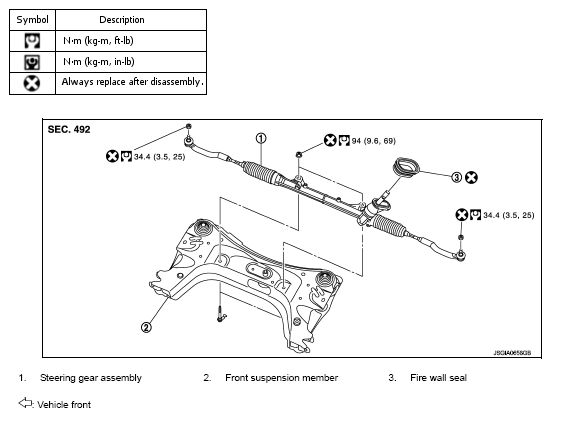

Fig 1: Exploded View Of Steering Gear Assembly, Front Suspension Member & Fire Wall Seal With Torque Specifications
G07107575Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
