Secondary Speed Sensor
>>
Exploded View
Exploded View

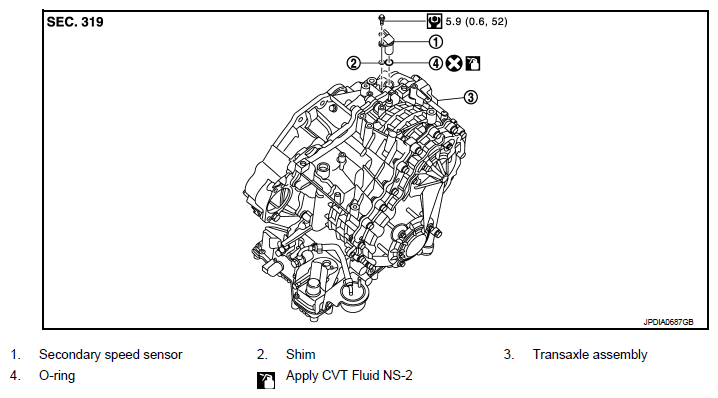

Fig 1: Secondary Speed Sensor, Shim And Transaxle Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
