Passenger Seat

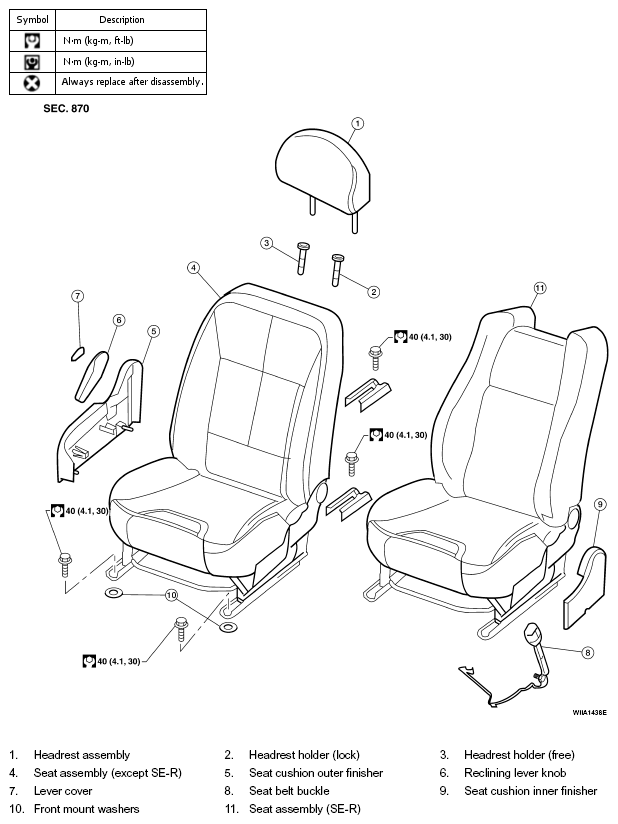

Fig 1: Front Passenger Seat Replacement Components With Torque Specifications

G05925956

Courtesy of NISSAN MOTOR CO., U.S.A.
