AWD : Exploded View: Disassembly

Type: M000TA0271

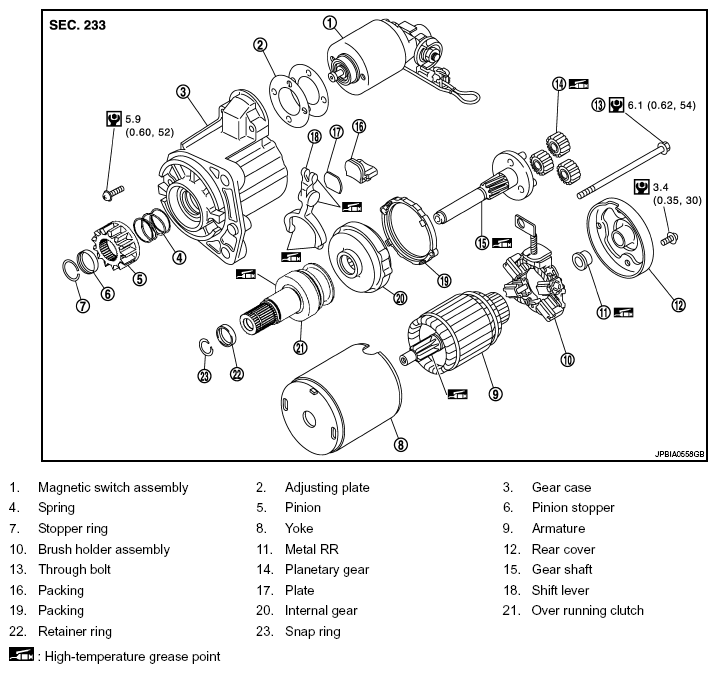

Fig 1: Disassembling View Of Starter Motor
G06057482Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
