Side Window Glass
>>
Exploded View
Exploded View

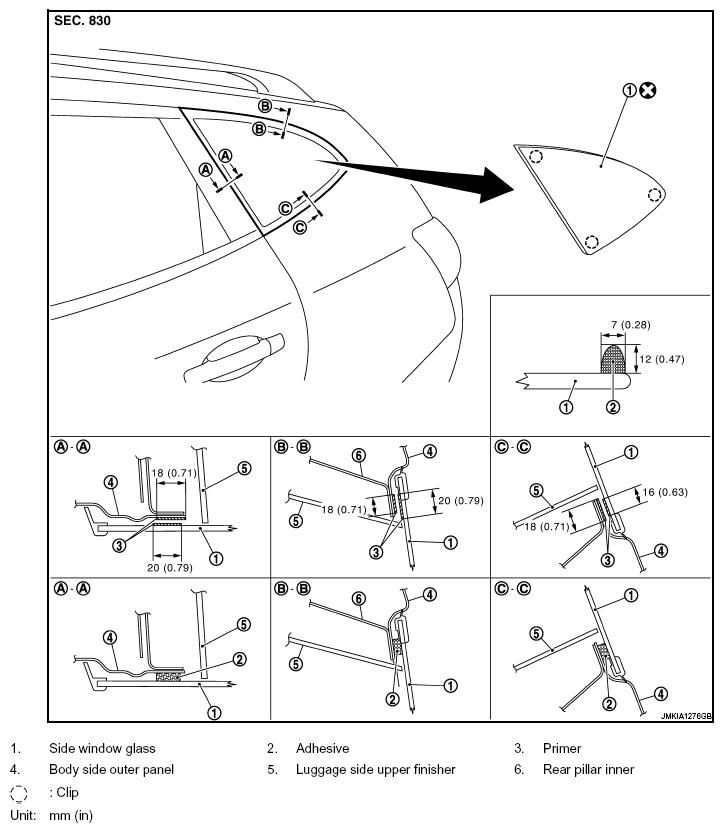

Fig 1: Exploded View Of Side Window Glass
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols n the figure.
