Power Seat Switch
>>
Exploded View
Exploded View

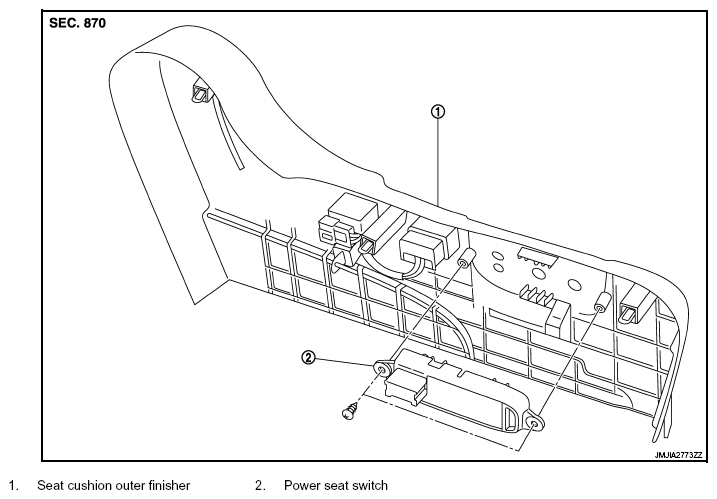

Fig 1: Identifying Power Seat Switch And Finisher
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
