Exploded View

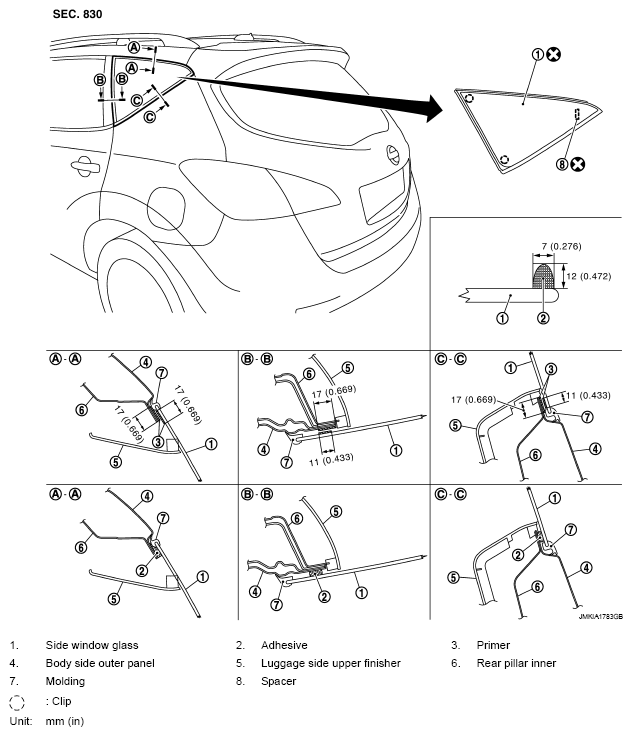

Fig 1: Exploded View Of Side Window Glass

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The side window glass, molding, spacer and clip constitute the side window glass assembly

Refer to "COMPONENTS " for symbols in the figure.
