Nissan-Datsun
>>
2009
>>
Altima Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System (Except Hybrid)
>>
On-Vehicle Repair
>>
Fuel Tank
>>
Exploded View
Exploded View

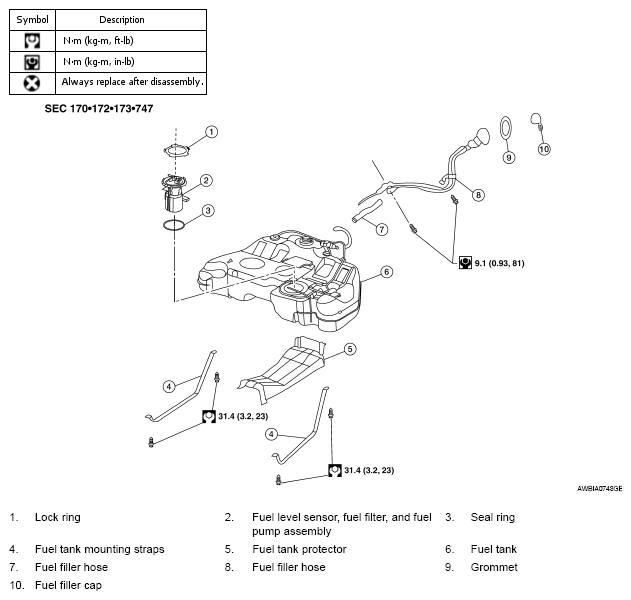

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
