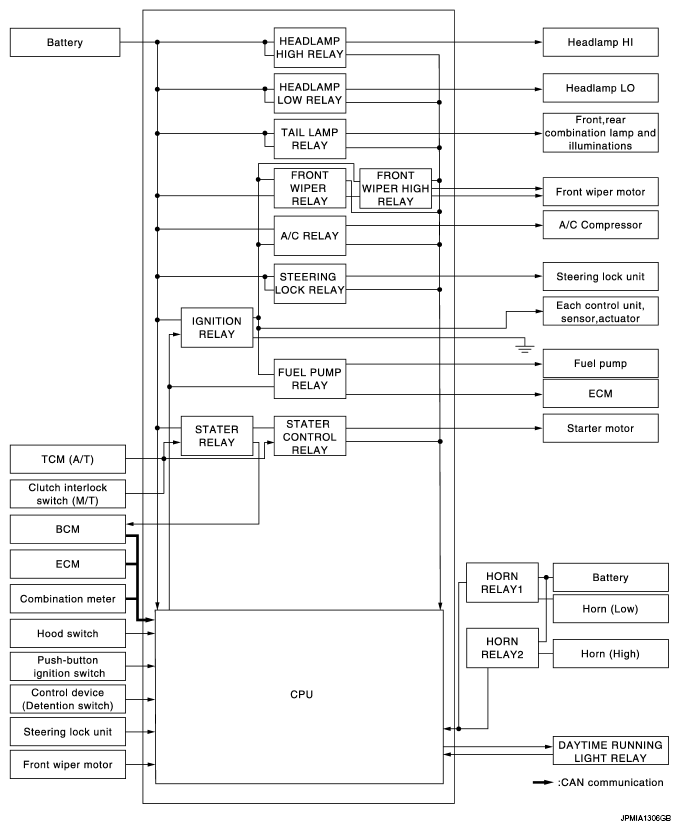

Home >> Nissan-Datsun >> 2009 >> 370Z Base, Standard >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power Control System - 370Z >> IPDM E/R >> Function Diagnosis >> Relay Control System >> System Diagram
