Exploded View

CAUTION: Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : DESCRIPTION ".

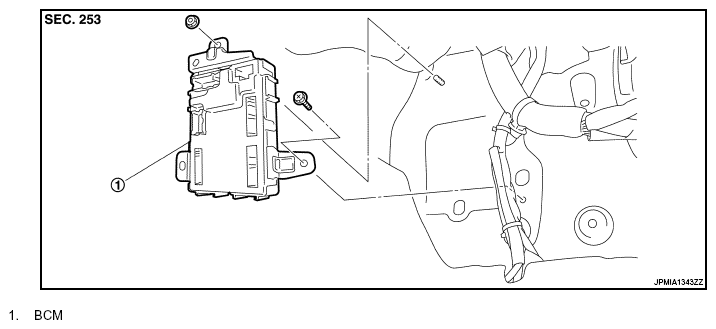

Fig 1: Identifying Body Control Module
G06053659Courtesy of NISSAN MOTOR CO., U.S.A.
