Component Parts Location

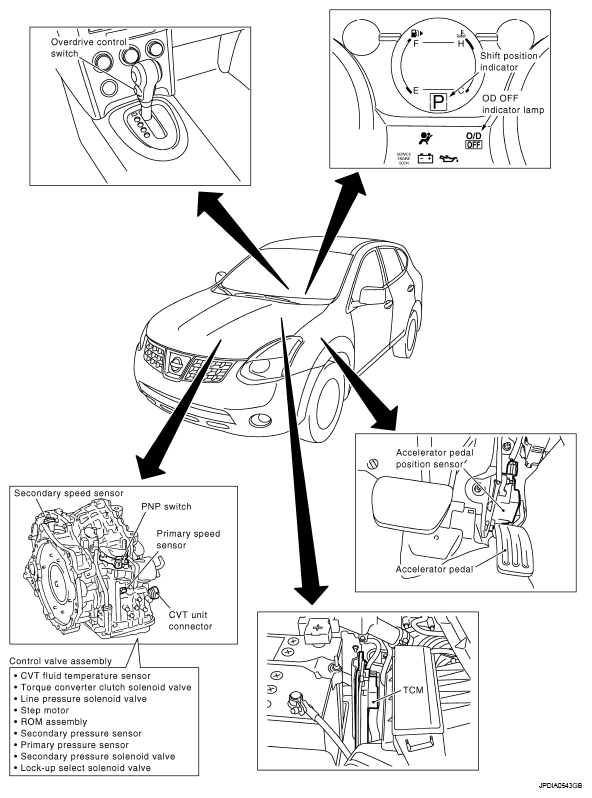

Fig 1: Identifying Shift Control System Components Location (Without Manual Mode)

G05369948

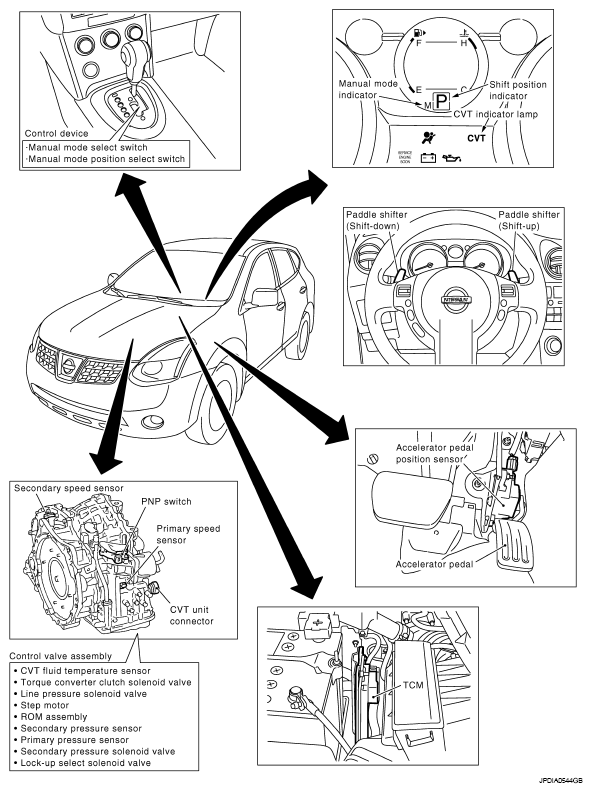

Fig 2: Identifying Shift Control System Components Location (With Manual Mode)

G05369949
