Exploded View
Exploded View
CAUTION:
Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to "
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : DESCRIPTION
".

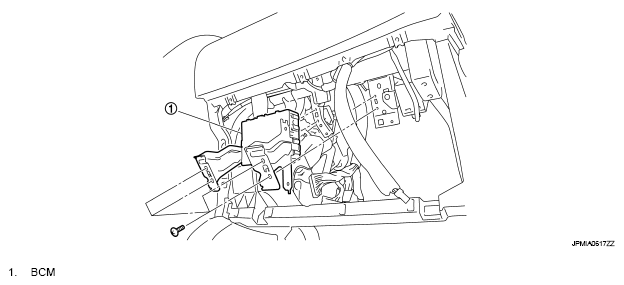

Fig 1: Exploded View Of BCM
