Steering Column Operating Range
STEERING COLUMN OPERATING RANGE SPECIFICATIONS
| Item |
Standard |

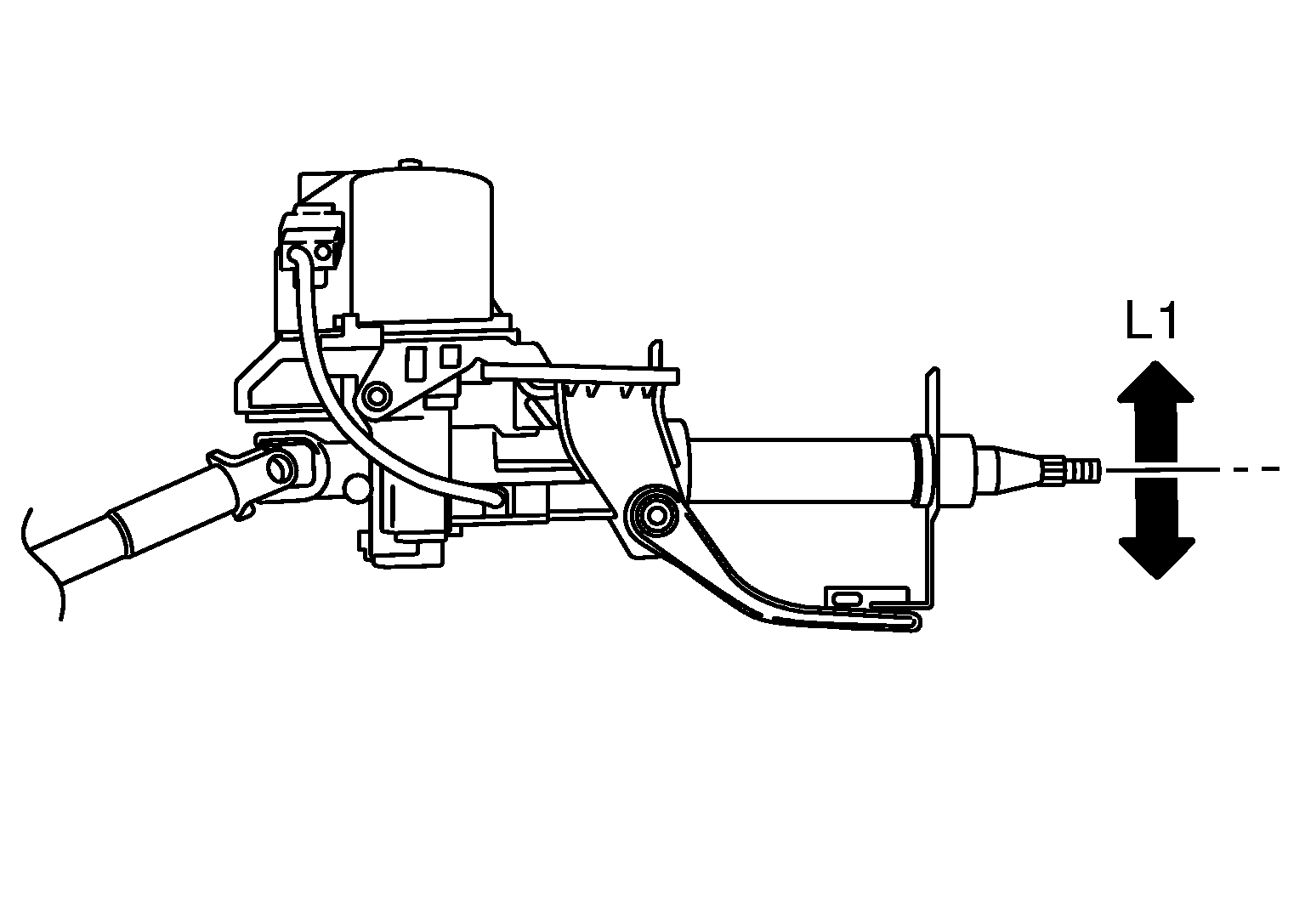

| Tilt operating range "L1" |
40 mm (1.57 in) |
 Courtesy of NISSAN MOTOR CO., U.S.A.
|
| Rotating torque |
1.9 N.m (0.19 kg-m, 17 in-lb) or less |

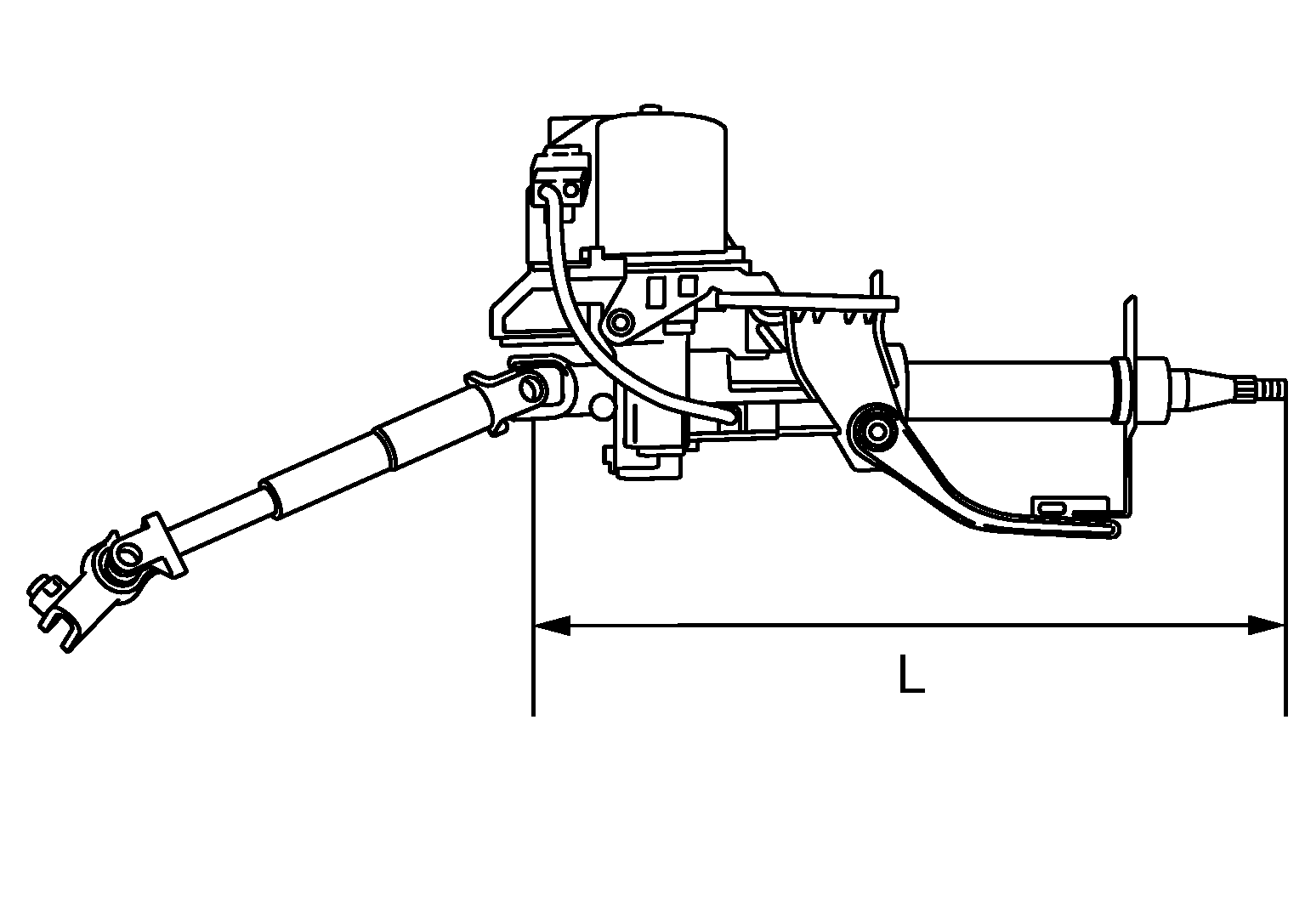

| Steering column length "L" |
495 mm (19.49 in) |
 Courtesy of NISSAN MOTOR CO., U.S.A.
|
