Component Parts Location

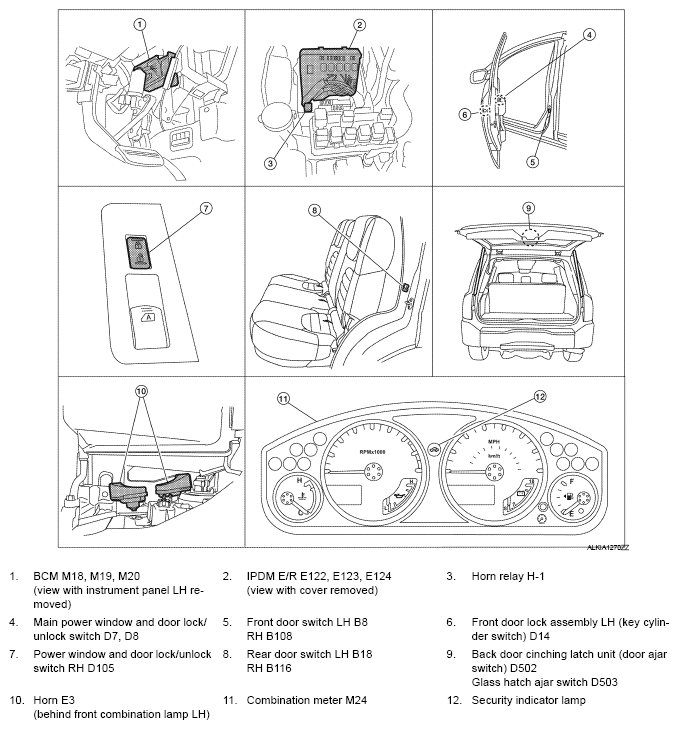

Fig 1: Identifying Vehicle Security System Components Location
G05713450Courtesy of NISSAN MOTOR CO., U.S.A.
