Component Description

ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.

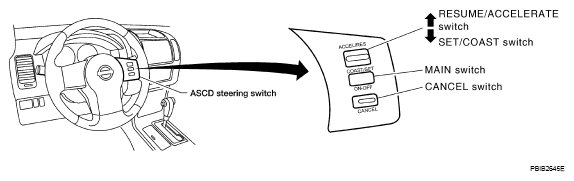

Fig 1: Identifying ASCD Steering Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to AUTO CRUISE CONTROL SYSTEM for the ASCD function.
